Xilinx Zynq UltraScale+ MPSoC XCZU7EV FPGA Development Board ADK-07
Xilinx Zynq UltraScale+ MPSoC XCZU7EV FPGA Development Board ADK-07

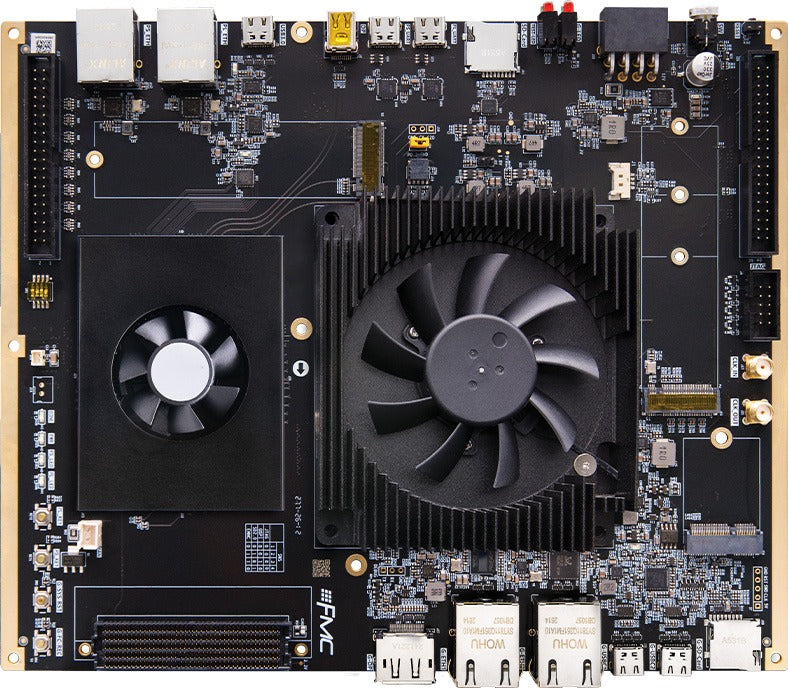

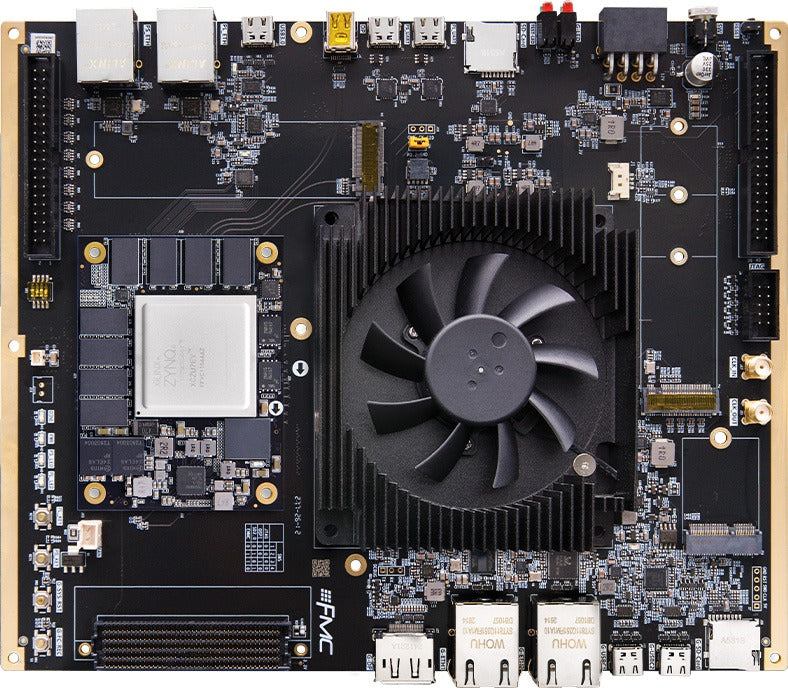

The ADK-07 is a high-performance heterogeneous computing development platform built around the AMD Xilinx Zynq UltraScale+ MPSoC XCZU7EV FPGA, designed to work together with an NVIDIA Jetson AGX Orin or AGX Thor module. The platform combines the ACU7EVC core board, a Jetson module slot and a carrier board; the FPGA and the AI module interconnect over a high-speed PCIe Gen3 x8 link, working together for high-speed data exchange, complex algorithm and model verification, real-time industrial control, autonomous robotics and multimodal large-model inference. Key figures: 504K logic cells, 1,728 DSP slices, 16 x 16.3 Gbps GTH transceivers, 8GB DDR4 and 64MB QSPI Flash. The carrier board provides high-speed networking (10G / 5G / dual Gigabit Ethernet), expansion (FMC HPC, 40-pin header), display (Mini DisplayPort and DisplayPort) and debug (JTAG, UART) interfaces, giving the FPGA + GPU heterogeneous platform complete I/O support.
Please note: the NVIDIA Jetson AGX Orin / AGX Thor module is optional and sold separately — it is not included with this development board.
Specifications

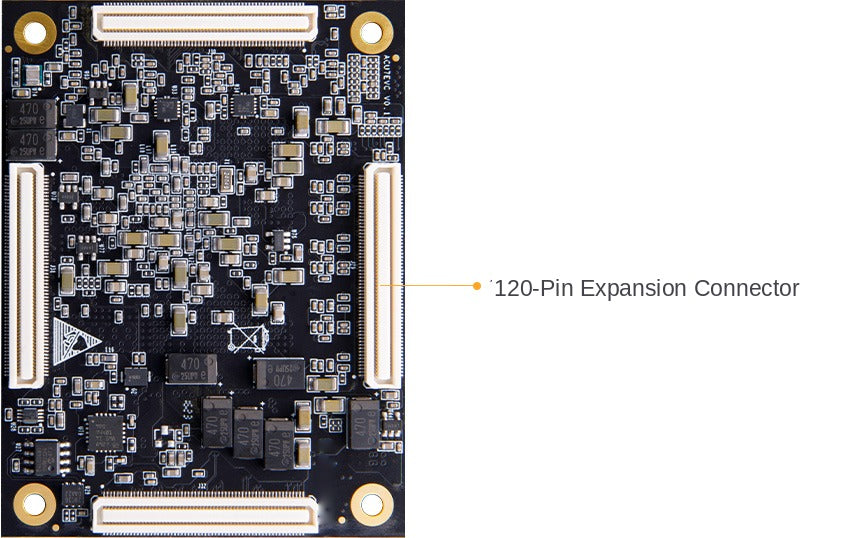

| Item | Specification |
|---|---|
| Core board (ACU7EVC) | |

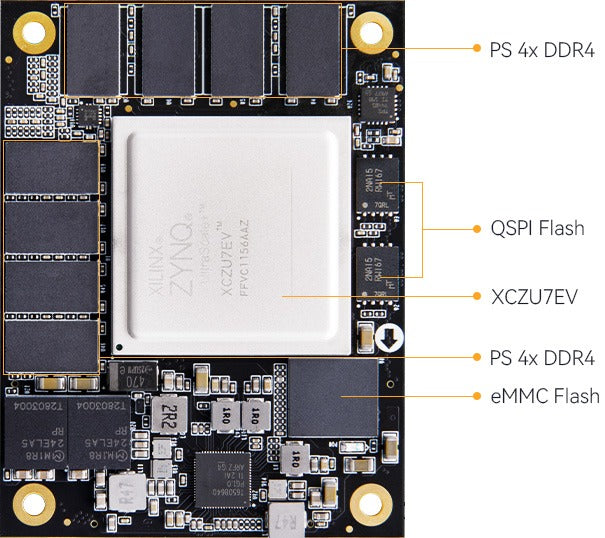

| FPGA | XCZU7EV-2FFVC1156I |
| Application processor | Quad-core Arm Cortex-A53 MPCore |
| Real-time processor | Dual-core Arm Cortex-R5F MPCore |
| GPU | Arm Mali-400 MP2 |
| Logic cells | 504K |
| Flip-flops | 460.8K |
| Look-up tables | 230.4K |
| DSP slices | 1,728 |
| Video codec | H.264/H.265 codec |
| Block RAM | 11 Mb |
| GTH transceivers | 16 x 16.3 Gbps |
| DDR4 | 8GB (PS-side 4GB DDR4 + PL-side 4GB DDR4) |
| eMMC Flash | 32GB |
| QSPI Flash | 64MB (2 x 32MB) |
| MPSoC-side interfaces | |
| M.2 interface | 1 x M.2 interface (PCIe x1) for an M.2 SSD, up to 5 Gbps |
| DisplayPort output | 1 x Mini DisplayPort output, up to 4K@30Hz or 1080P@60Hz |
| USB 3.0 Type-C | 1 x USB 3.0 OTG interface (Type-C), Host / Slave / OTG modes |
| Gigabit Ethernet | 2 x Gigabit Ethernet (1 x PS side, 1 x PL side) |
| FMC expansion | 1 x standard FMC HPC connector for FMC modules (HDMI input/output modules, binocular camera modules, high-speed AD modules, etc.) |
| UART | 2 x UART-to-USB interfaces (Type-C), 1 x PS side + 1 x PL side, for FPGA program debugging |
| JTAG | 1 x 10-pin 2.54mm standard JTAG port, for system debugging and download via a Xilinx downloader |
| Micro SD slot | 1 x Micro SD slot, for operating system image and file system storage |
| 40-pin expansion header | 1 x 40-pin 2.54mm-pitch expansion header, for connecting expansion modules or user-designed external circuits |
| LEDs | 4 x user LEDs, 1 x power LED, 1 x DONE configuration LED |
| Boot configuration | 4-bit DIP switch; JTAG / QSPI / SD / eMMC boot modes |
| Jetson module-side interfaces (module sold separately) | |
| USB 3.2 | 2 x USB 3.2 Type-C interfaces, Host / OTG / Slave modes |
| 10G Ethernet | 1 x 10G Ethernet RJ45 interface (AGX Orin module only) |
| 5G Ethernet | 1 x 5G Ethernet RJ45 interface (Thor module only) |
| DisplayPort output | 1 x DisplayPort output, up to 4K@30Hz or 1080P@60Hz |
| Micro SD slot | 1 x Micro SD slot (AGX Orin module only), for system boot and storage |
| M.2 SSD interface | 1 x M.2 Key-M (PCIe x4 on AGX Orin, PCIe x2 on Thor), for an NVMe SSD |
| M.2 WiFi/BT interface | 1 x M.2 Key-E interface for a WiFi/BT module, up to 5 Gbps |
| 40-pin expansion | 1 x 40-pin connector, for expanding Jetson GPIO or peripheral interfaces |
| UART debug | 1 x Type-C interface, for Jetson program debugging |
| Buttons | 2 x buttons (system reset + force recovery) |
| LED | 1 x user LED |
| Power and dimensions | |
| Input power | +12V |
| Input current | 25A maximum |

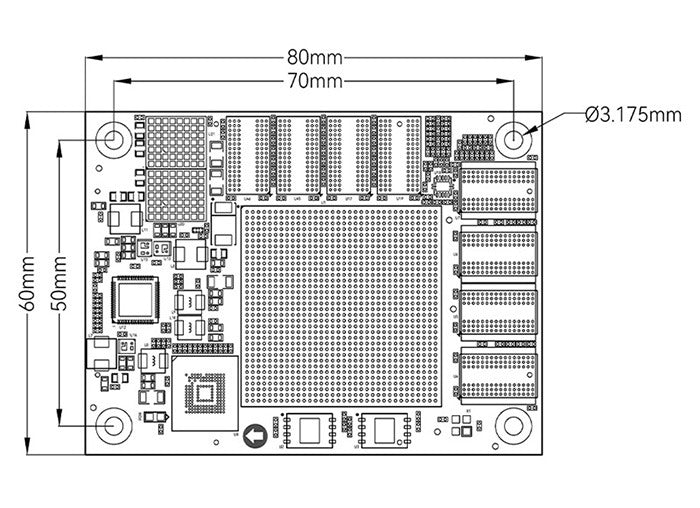

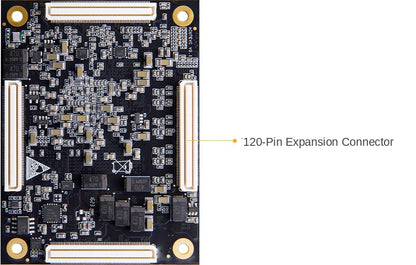

| Core board dimensions | 80 mm x 60 mm |

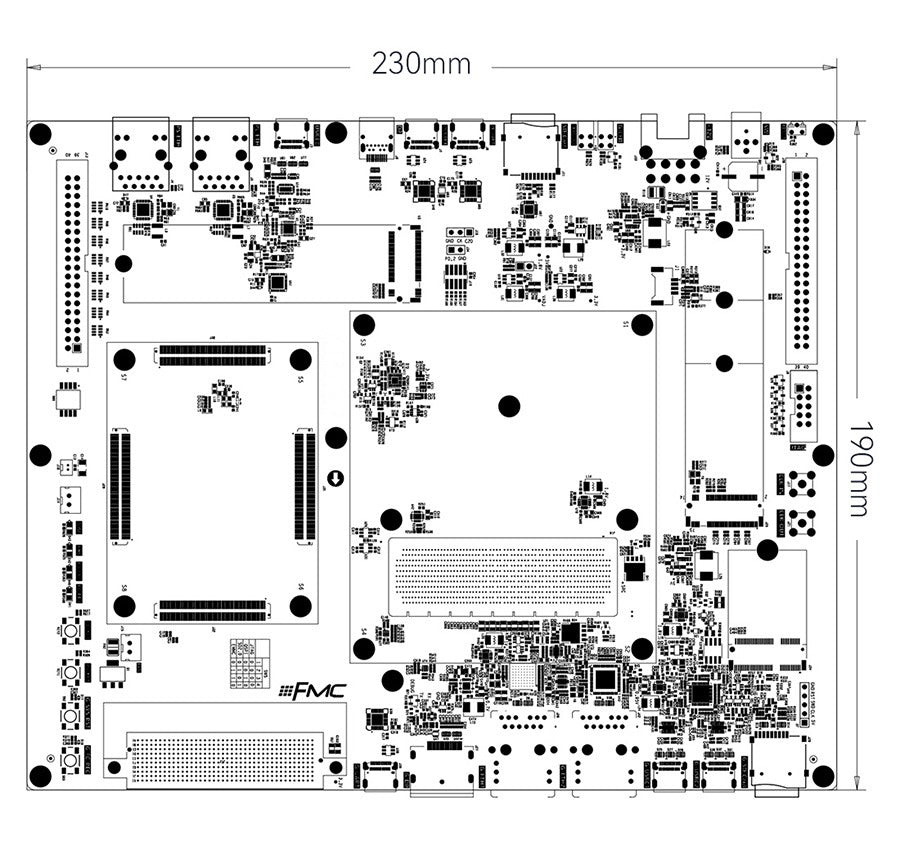

| Carrier board dimensions | 230 mm x 190 mm |
What’s in the box
- FPGA development board x 1
- Cooling fan x 1
- Type-C cable x 1
- USB downloader x 1
- SD card x 1
- Card reader x 1
- 12V power supply x 1
