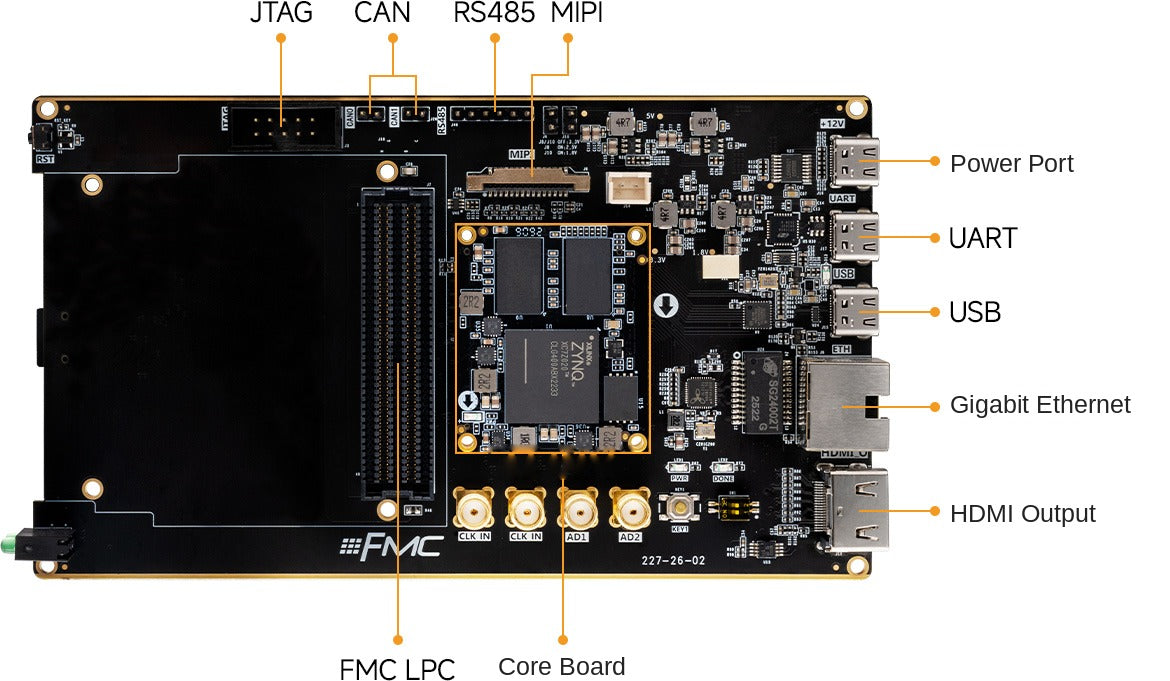

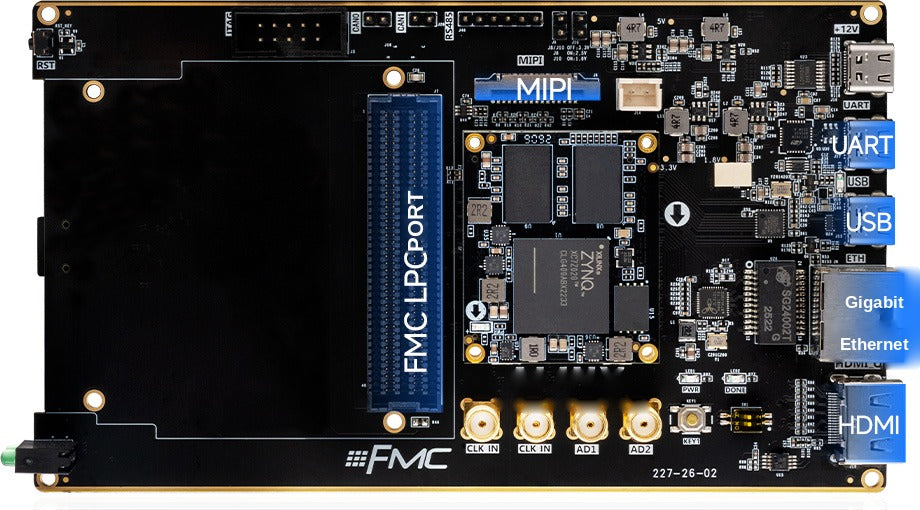

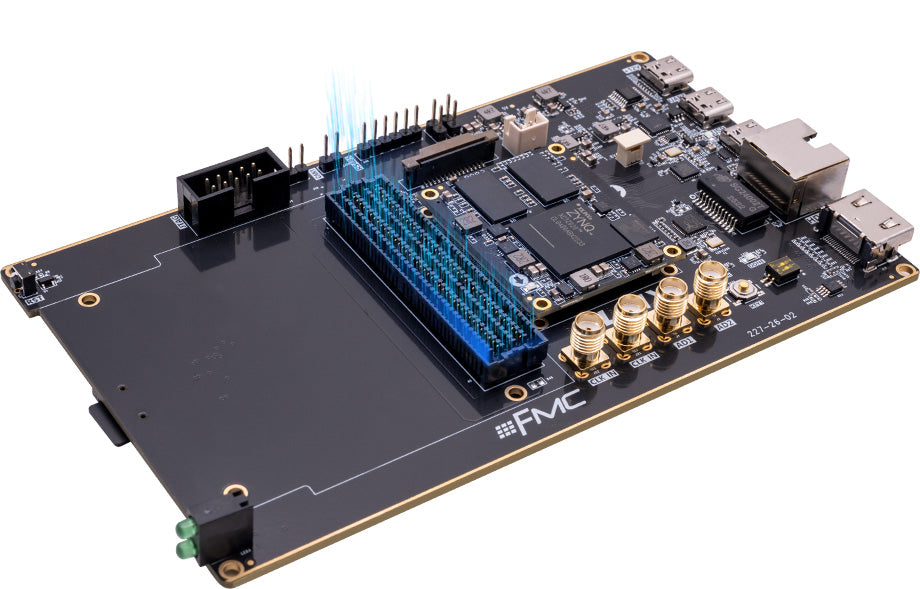

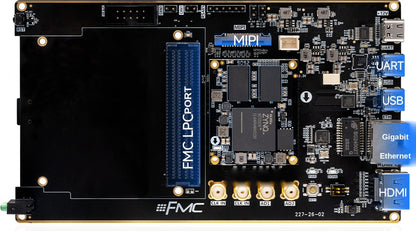

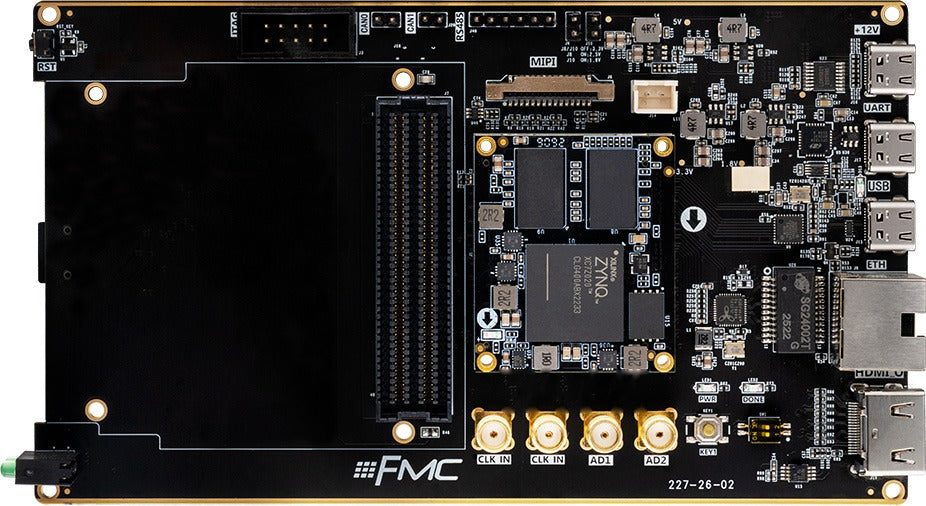

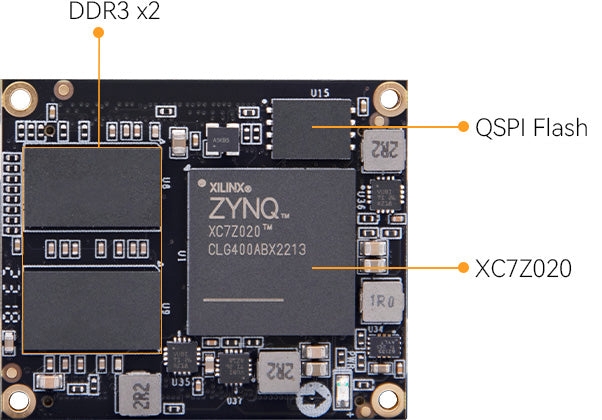

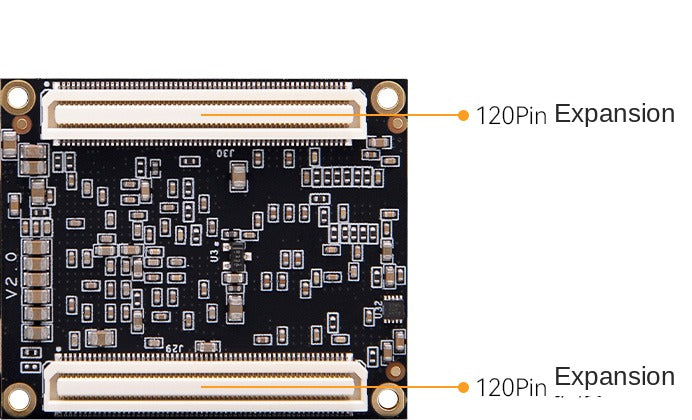

The ADK-2 is a heterogeneous ARM + FPGA development platform built around the Xilinx Zynq-7000 XC7Z020 SoC, which integrates a dual-core ARM Cortex-A9 processing system (PS) with Artix-7-class programmable logic (PL) on a single chip, linked by a high-speed AXI bus for real-time control and parallel acceleration. The board follows a modular core board + carrier board design: the core board integrates the XC7Z020 SoC, 1GB of DDR3 memory and 32MB of QSPI flash as a complete minimum system, while the carrier board adds a rich set of industrial and multimedia interfaces - HDMI output, Gigabit Ethernet, an FMC LPC expansion connector, MIPI camera input, CAN and RS485 buses - covering the full flow from early prototyping to engineering deployment. The platform supports the PYNQ framework and targets video transmission, edge computing, industrial control and algorithm acceleration.
