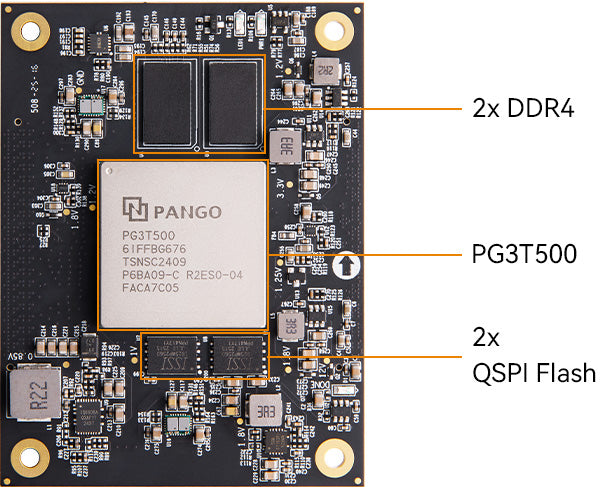

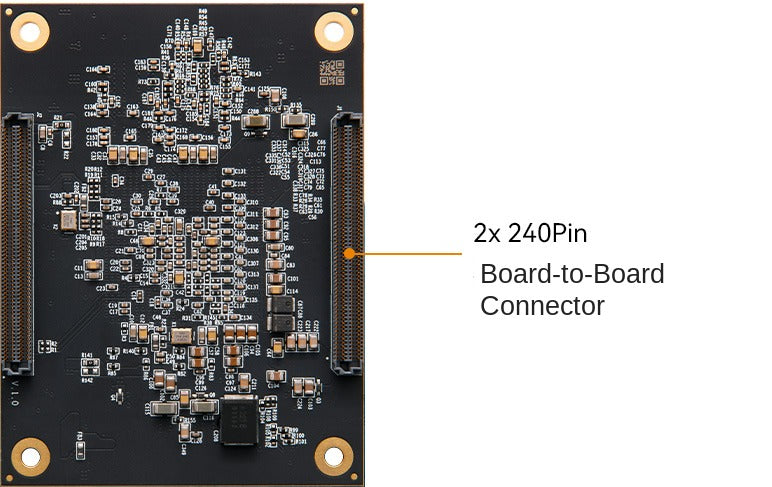

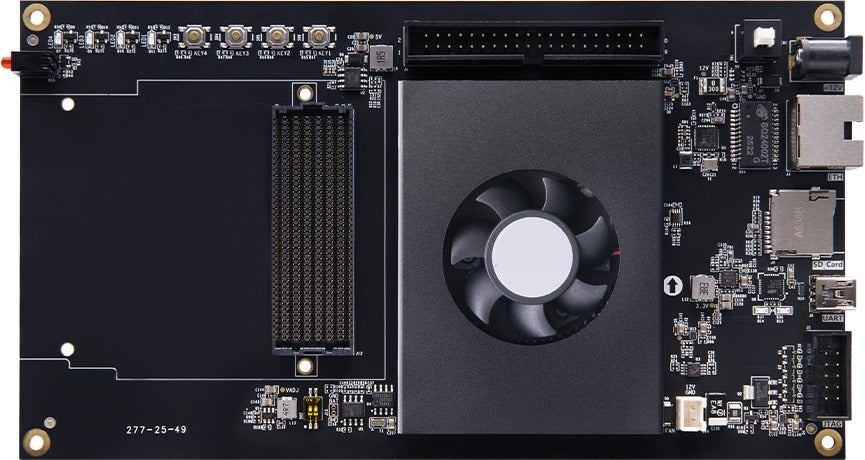

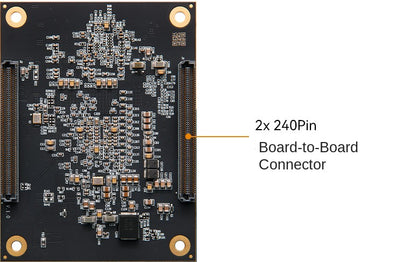

The ADK-P500F is a high-performance FPGA development platform in the Pango Titan3 series, built with a core-board plus baseboard architecture. The core board is based on the Pango Titan3 PG3T500 FPGA, integrating 242,176 LUT6 logic units and 484,352 registers. The core board carries 2GB of DDR4 memory and two 32MB QSPI Flash devices, providing ample data buffering and configuration storage; the baseboard brings out a rich set of expansion interfaces, including an FMC+ expansion slot, a Gigabit Ethernet port, USB-to-serial, a 40-pin 2.54mm expansion header, a Micro SD card slot, a JTAG debug port, user buttons and LEDs, making it easy to connect peripherals for a wide range of application scenarios. The platform is supported by a complete development toolchain and reference designs, and is suited to rapid prototyping and product development in high-speed data acquisition, video and image processing, industrial control, and communication protocol verification.
Core Board Specifications
Item
Specification
FPGA
PG3T500-6IFFBG676
LUT6
242,176
Logic cells
529,760
Registers (FF)
484,352
Distributed RAM
6.3 Mb
DRM (36 Kb)
616
HRM (288 Kb)
68
APM
1,804
GPLL
4
PPLL
8
FPLL
7
PVT monitor
1
PCIe
1 x PCIe Gen4 x8
EMAC
2
HPIO
98
HDIO
54
Operating temperature
Industrial grade, -40 °C to +85 °C
DDR4 SDRAM
2 x 1GB chips, 2GB total
QSPI Flash
2 x 32MB QSPI Flash, for storing configuration files and user data
Clock
2 x 200 MHz differential active clocks, providing reference clocks for the DDR4 controller and FPGA logic
LEDs (core board)
3 LEDs

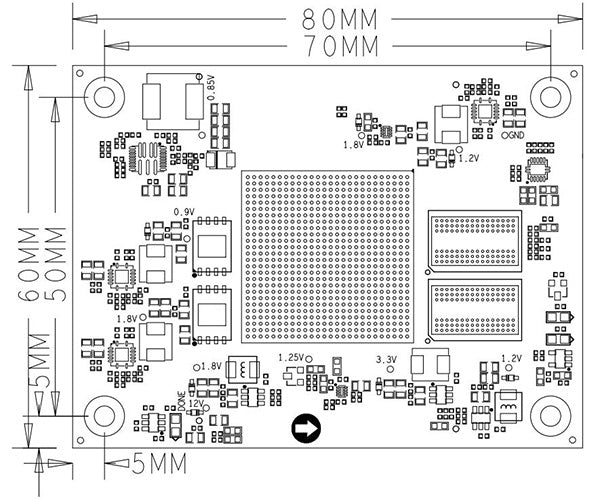

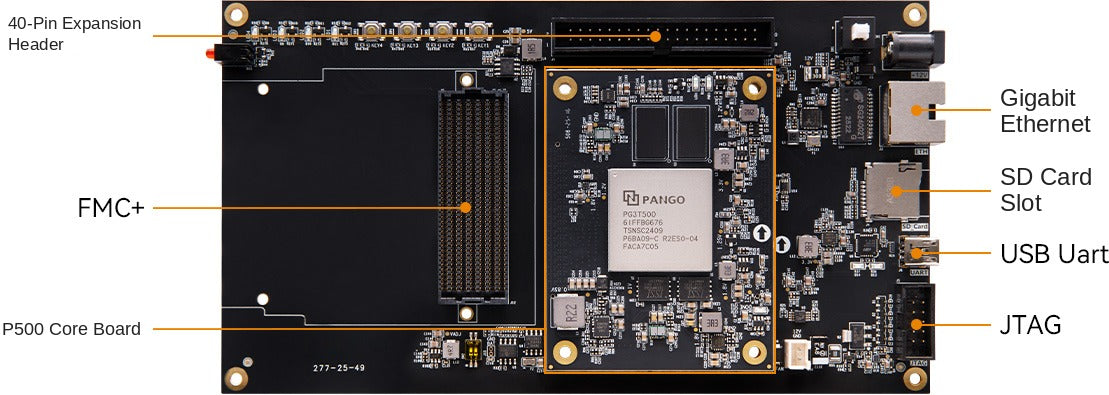

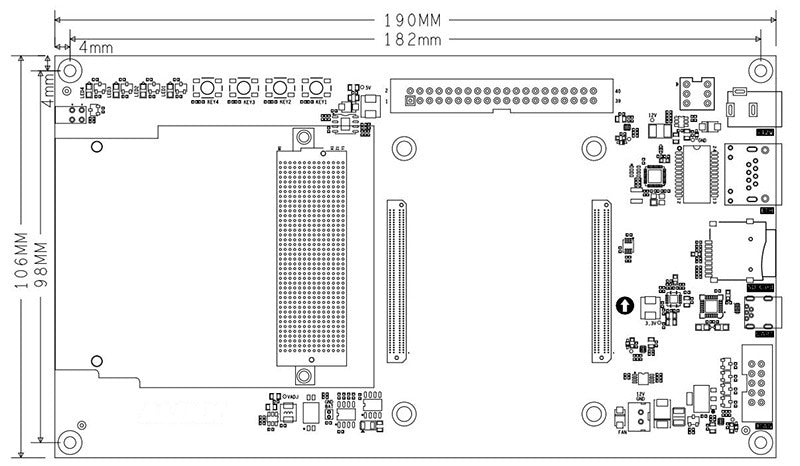

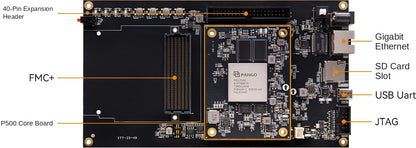

Interfaces
Item
Specification
FMC+ interface
1 x FMC+ interface, bringing out 34 LA differential pairs, 2 clock pairs and 16 high-speed transceivers (MGT)
Gigabit Ethernet
1 x Gigabit Ethernet interface, 10/100/1000M auto-sensing
USB-to-serial
1 x UART-to-USB interface, for communication with a PC and convenient debugging
Micro SD card slot
1 x Micro SD card slot, for convenient user data storage and backup
JTAG
1 x 10-pin 2.54mm standard JTAG port, for FPGA program download and debugging via a Pango downloader
40-pin expansion header
1 x 40-pin 2.54mm-pitch expansion header, for connecting expansion modules (binocular cameras, TFT LCD screens, high-speed AD modules, etc.); provides 1 x 5V power, 2 x 3.3V power, 3 x GND and 34 x IO
