Pango PG2K100 Kosmo-2 SoPC FPGA Core Board ADK-101
Pango PG2K100 Kosmo-2 SoPC FPGA Core Board ADK-101
Regular price
$564.00 USD
Regular price
Sale price
$564.00 USD
Shipping calculated at checkout.

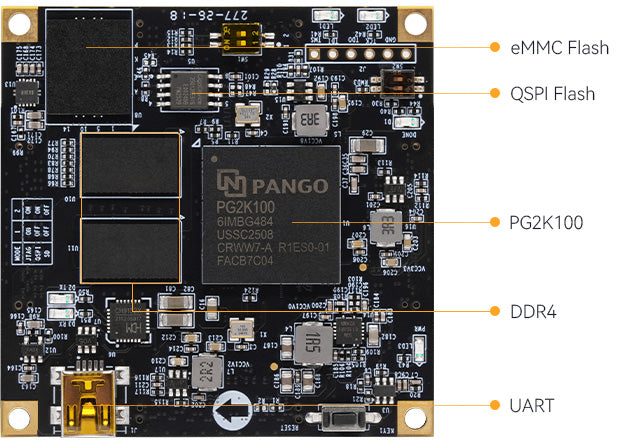

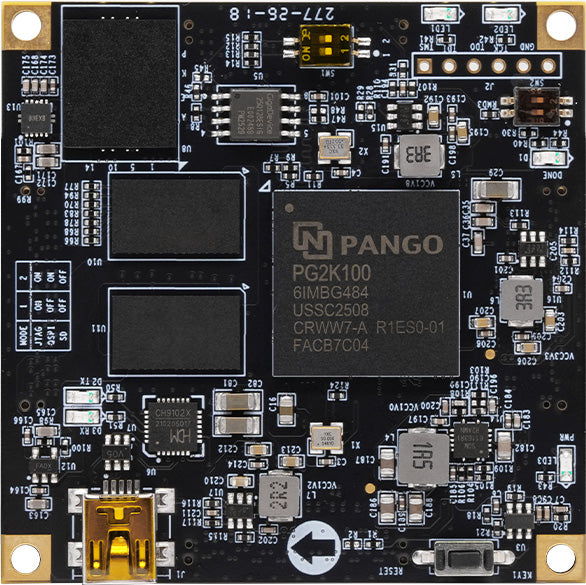

The ADK-101 is an FPGA + ARM core board built on the Pango Kosmo-2 platform around the PG2K100-6IMBG484 SoPC device, which integrates a dual-core ARM Cortex-A53 processing unit (PU) and an FPGA programmable logic fabric (PA) on a single chip. The board carries 2GB of DDR4, 8GB of eMMC flash and 16MB of QSPI flash in a compact 60 mm x 60 mm footprint, and routes rich I/O through four sets of 80-pin board-to-board connectors, so custom hardware development can start quickly. Typical applications include security monitoring, automotive electronics, machine vision, intelligent manufacturing, video and audio capture and processing, medical equipment, instrumentation, smart grids and data centers.
Specifications
| Item | Specification |
|---|---|
| Model | K101 |
| FPGA device | PG2K100-6IMBG484 |
| Operating temperature | Industrial grade, -40 °C to +85 °C |
| CPU | Dual-core ARM Cortex-A53 |
| DDR4 | 2GB, 32-bit |
| QSPI Flash | 16MB |
| eMMC Flash | 8GB |
| Logic cells | 85,760 |
| LUTs | 53,600 |
| Flip-flops | 107,200 |
| RAM | 5.06 Mb |
| APM | 256 |
| PU MIO | 39 |
| PA HRIO | 198 |
| UART | 1x UART-to-USB interface, for powering the core board on its own and serial debugging |
| JTAG | 1x JTAG debug interface, for standalone JTAG download and online debugging of the core board (header pins to be soldered by the user) |
| DIP switch configuration | 2-position DIP switch SW1 sets the FPGA system boot mode |
| Reset button | 1x RESET pushbutton resets the FPGA system |
| Clock configuration | PU provides a 33.3333 MHz clock input; PA provides a 50 MHz single-ended crystal oscillator |
| LEDs | 6 LEDs (power, DONE, 2 user LEDs, 1 serial transmit/receive) |
| Input voltage | DC 5V (powered via Mini USB or the board-to-board connector; never power via Mini USB and the board-to-board connector at the same time) |

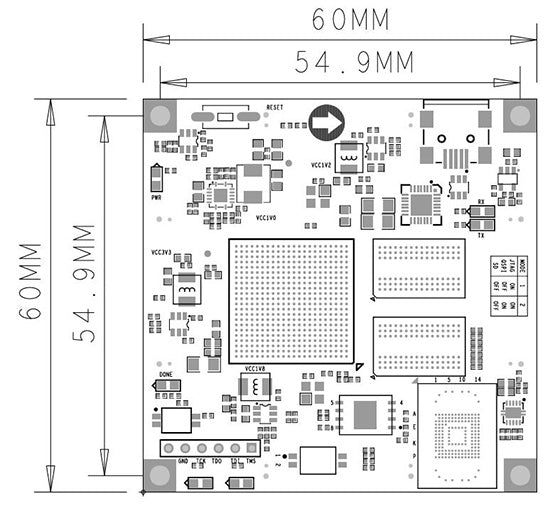

| Dimensions | 60 mm x 60 mm |

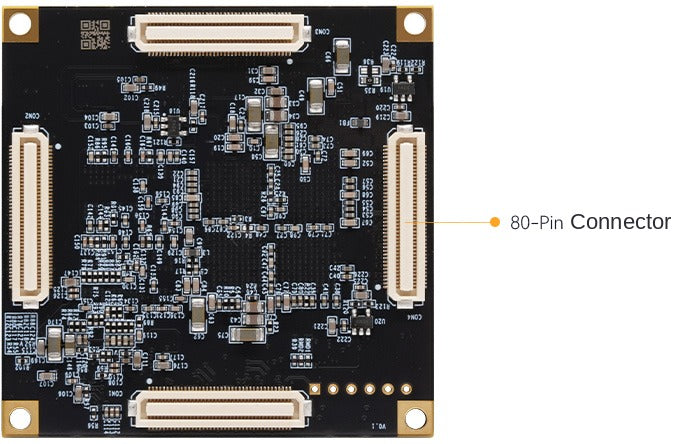

| Connectors | 4 sets of 80-pin board-to-board connectors, 0.5 mm pitch |
