Pango Kosmo-2 SoPC FPGA + ARM Development Board ADK-K101
Pango Kosmo-2 SoPC FPGA + ARM Development Board ADK-K101
Regular price
$834.00 USD
Regular price
Sale price
$834.00 USD
Shipping calculated at checkout.

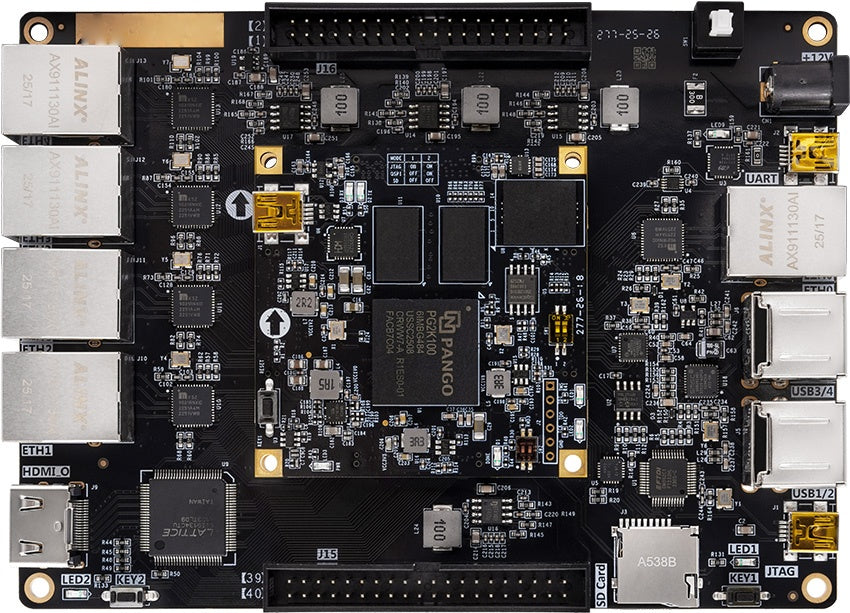

The ADK-K101 is an FPGA + ARM development board built on the Pango Kosmo-2 platform, using a core board + carrier board architecture. The K101 core board carries a PG2K100-6IMBG484 FPGA that integrates a dual-core ARM Cortex-A53 processor with FPGA programmable logic, plus 2GB DDR4, 8GB eMMC and 16MB QSPI Flash. The carrier board provides five Gigabit Ethernet ports, four USB2.0 HOST ports, HDMI, UART, an SD card slot and 40-pin expansion headers, for applications such as high-speed Ethernet, data storage, video encoding and decoding, and industrial control.
Specifications
| Item | Specification |
|---|---|
| Model | ADK-K101 |
| Core board | |
| Core board model | K101 |
| FPGA | PG2K100-6IMBG484 |
| Operating temperature | Industrial grade, -40 °C to +85 °C |
| CPU | Dual-core ARM Cortex-A53 |
| DDR4 | 2GB, 32-bit |
| QSPI Flash | 16MB |
| eMMC Flash | 8GB |
| Logic units | 85,760 |
| LUTs | 53,600 |
| Flip-Flops | 107,200 |
| RAM | 5.06Mb |
| APM | 256 |
| PU MIO | 39 |
| PA HRIO | 198 |
| Interfaces and features | |

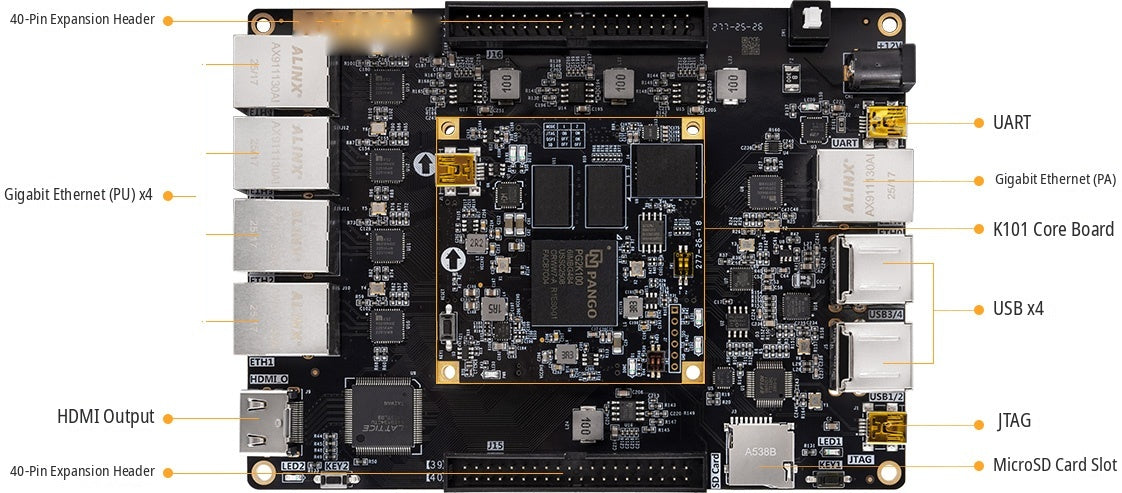

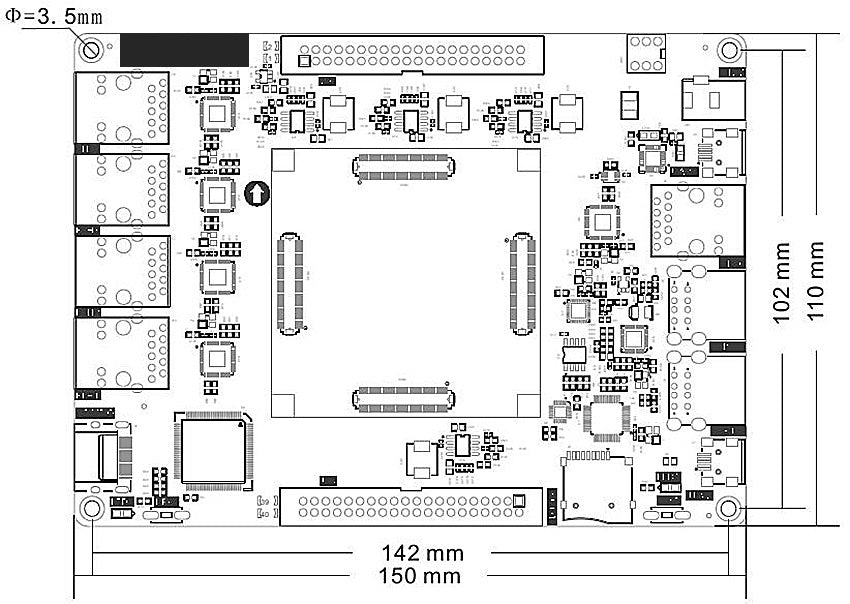

| HDMI | 1 x HDMI output, up to 1080P@60Hz, 3D output supported |
| Ethernet | 5 x 10/100/1000M adaptive Ethernet ports (1 connected to PU, 4 to PA) |
| USB | 4 x USB2.0 HOST ports, for peripherals such as a mouse, keyboard and USB drive |
| UART | 2 x USB-to-UART, for serial communication with a PC or external devices |
| JTAG | 1 x Mini USB JTAG debug interface, for FPGA program download and online debugging |
| Expansion headers | 2 x 40-pin expansion headers, 68 IO in total, with 5V, 3.3V and GND; can connect dual-camera, TFT LCD, high-speed AD and other modules |
| SD card slot | 1 x Micro SD card slot, for operating system images and file system storage |
| Buttons | 3 buttons: 1 global reset button on the core board, 2 user buttons on the carrier board |
| LEDs | 9 LEDs: 6 on the core board (power, DONE, 2 user, 1 UART transmit/receive), 3 on the carrier board (power, 2 user) |
| Power | |
| Carrier board input voltage | +12V |
| Carrier board supply | 12V / 2A |
| Core board input voltage | DC 5V (Mini USB or carrier board supply) |
| Dimensions | |
| Core board | 60 x 60 mm |
| Carrier board | 150 x 110 mm |
What's in the box
- FPGA development board x 1
- TF card x 1
- Mini USB cable x 2
- Card reader x 1
- Acrylic plate x 1
- 12V power supply x 1
