OV5640 Camera Module ADK-5641

OV5640 Camera Module ADK-5641

$50.00 USD
$50.00 USD
Sale Sold out
Shipping calculated at checkout.

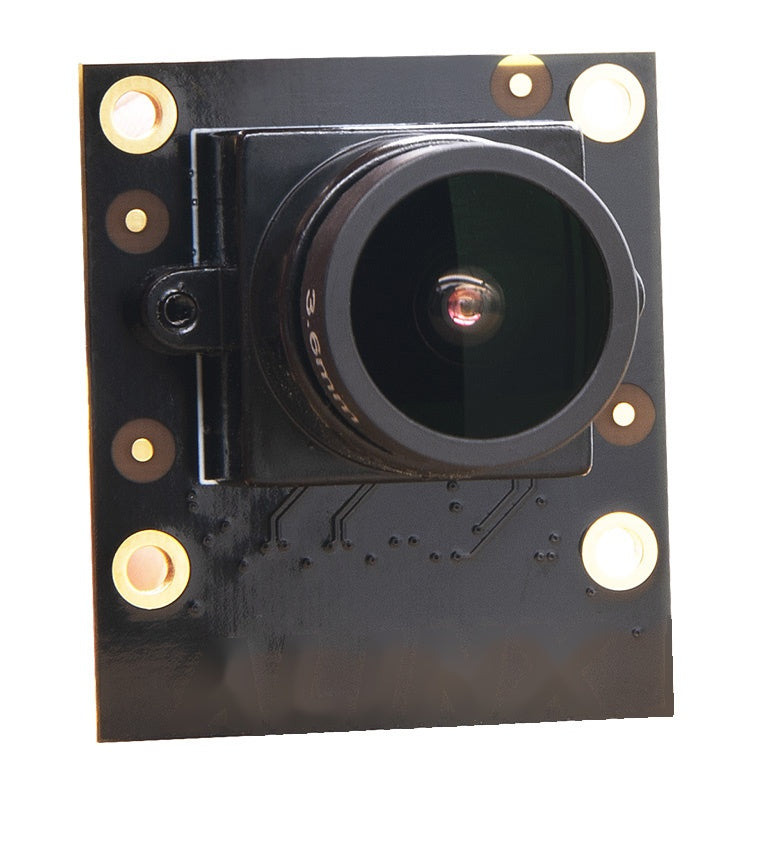

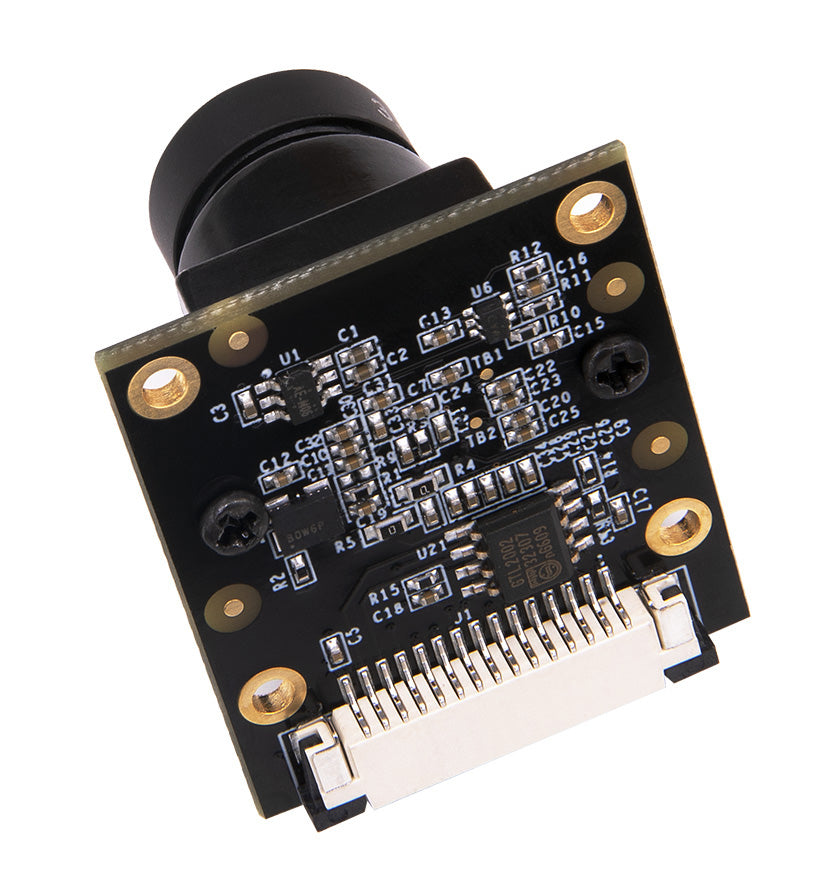

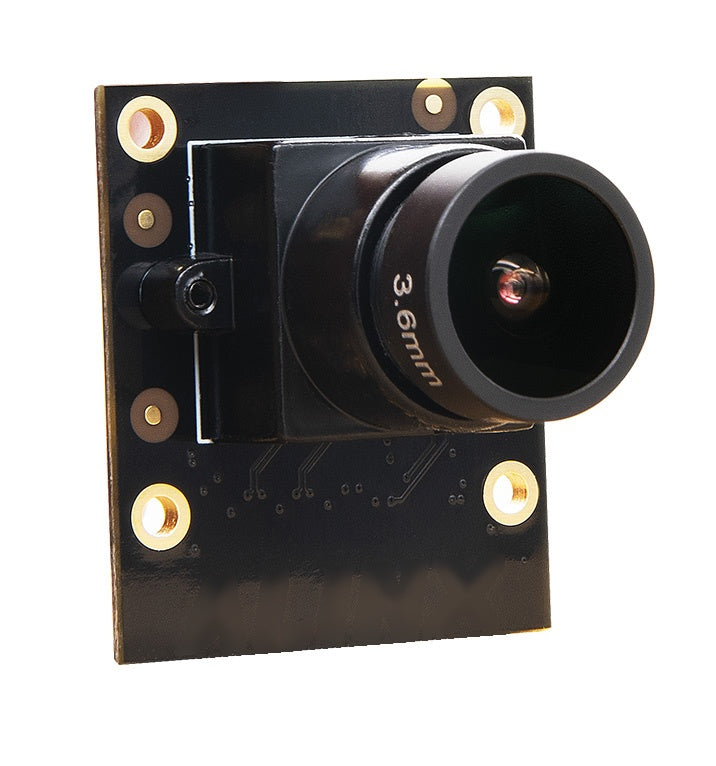

The ADK-5641 is a monocular MIPI camera module built around the OV5640 CMOS image sensor. It connects to an FPGA host over its MIPI interface for image capture and transmission, and the module includes the OV5640 power circuitry on board. The 5MP M12 lens has a 3.6mm focal length and is focused manually.

Specifications

Item Specification
Model ADK-5641
Interface MIPI
Image sensor OV5640 CMOS
Sensor size 1/4 inch
Hardware pixels 5MP (5 megapixels)
Lens 5MP, M12 mount, 3.6mm focal length, 80°–96° viewing angle
Focus Manual focus
Exposure and white balance Automatic exposure control (AEC), automatic white balance (AWB)
Image formats RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, compressed formats
Capture resolutions QSXGA (2592 x 1944), 1080p, 1280 x 960, VGA (640 x 480), QVGA (320 x 240)
Operating temperature -30 °C to +70 °C (stable image from 0 °C to +50 °C)
