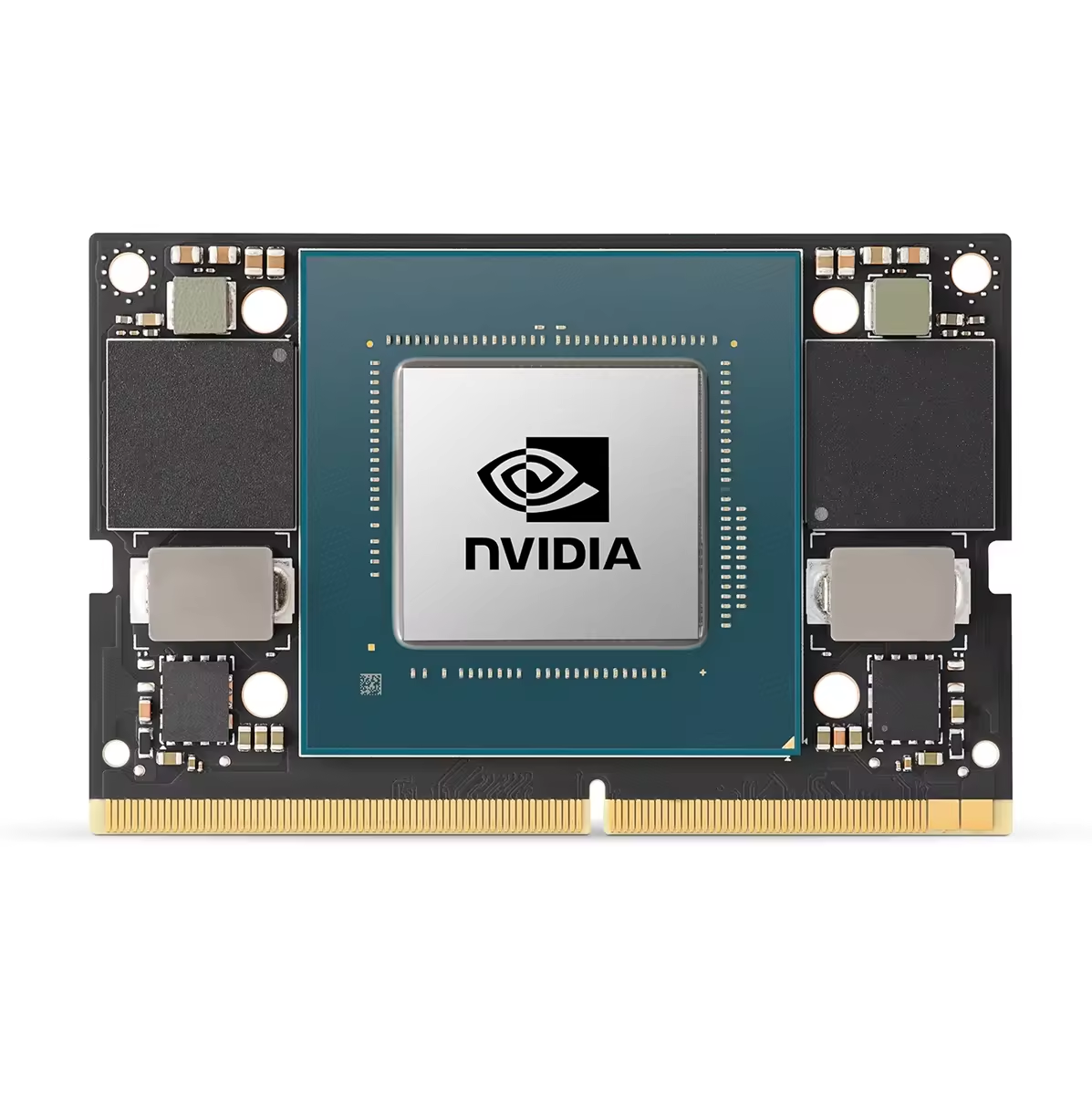

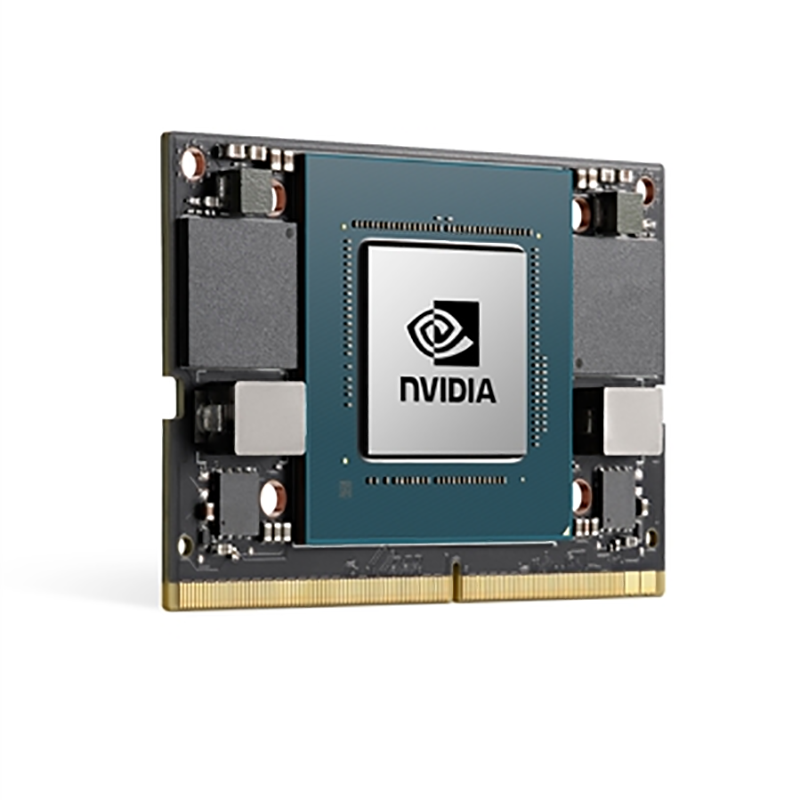

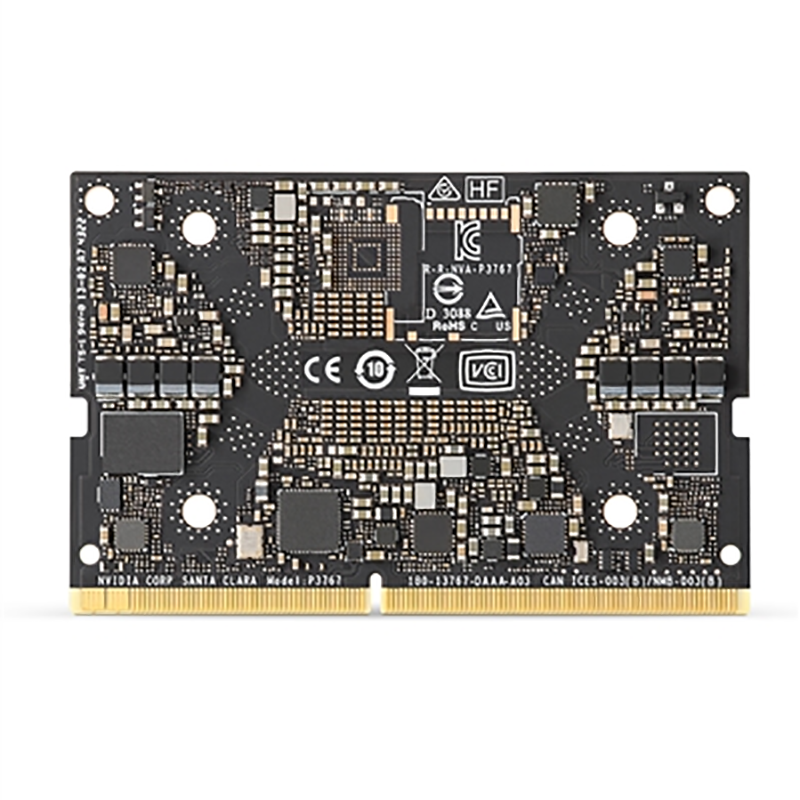

The NVIDIA Jetson Orin NX module packs high-performance AI computing into the compact Jetson form factor: a 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores, an Arm Cortex-A78AE CPU, and high-bandwidth LPDDR5 memory on a 69.6 mm × 45 mm system-on-module with a 260-pin SO-DIMM connector. It is a production module for edge AI systems such as intelligent video analytics, robotics, drones, and industrial automation, and is available with 8GB or 16GB of memory.
Model Comparison
Specification
Jetson Orin NX 8GB
Jetson Orin NX 16GB
SKU
ADK-ORIN-NX-8GB
ADK-ORIN-NX-16GB
NVIDIA Part Number
900-13767-0010-000
900-13767-0000-000
Memory
8GB 128-bit LPDDR5
16GB 128-bit LPDDR5
AI Performance
70 TOPS
100 TOPS
CPU
6-core Arm Cortex-A78AE v8.2 64-bit (1.5MB L2 + 4MB L3)
8-core Arm Cortex-A78AE v8.2 64-bit (2MB L2 + 4MB L3)
Power
10 W – 20 W
10 W – 25 W
Specifications
Specification
Value
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Memory Bandwidth
102.4 GB/s
Storage
External NVMe support
Networking
1 × Gigabit Ethernet
PCIe
1 × x4 + 3 × x1 (PCIe 4.0, root port and endpoint)
USB
3 × USB 3.2 (10 Gbps), 3 × USB 2.0
Camera
Up to 4 cameras via 8-channel MIPI CSI-2 (D-PHY 2.1, up to 20 Gbps)
