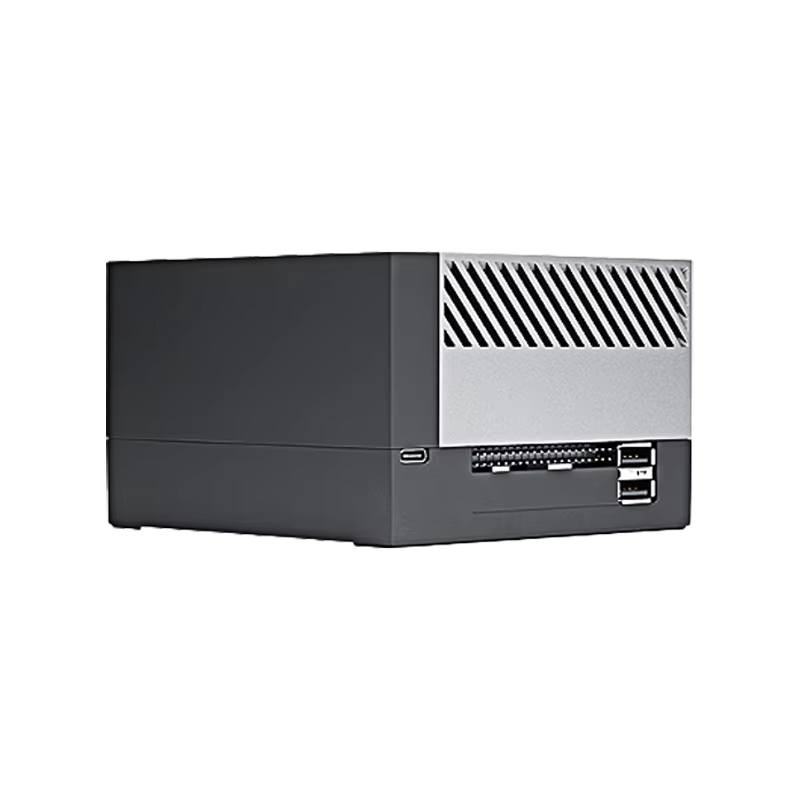

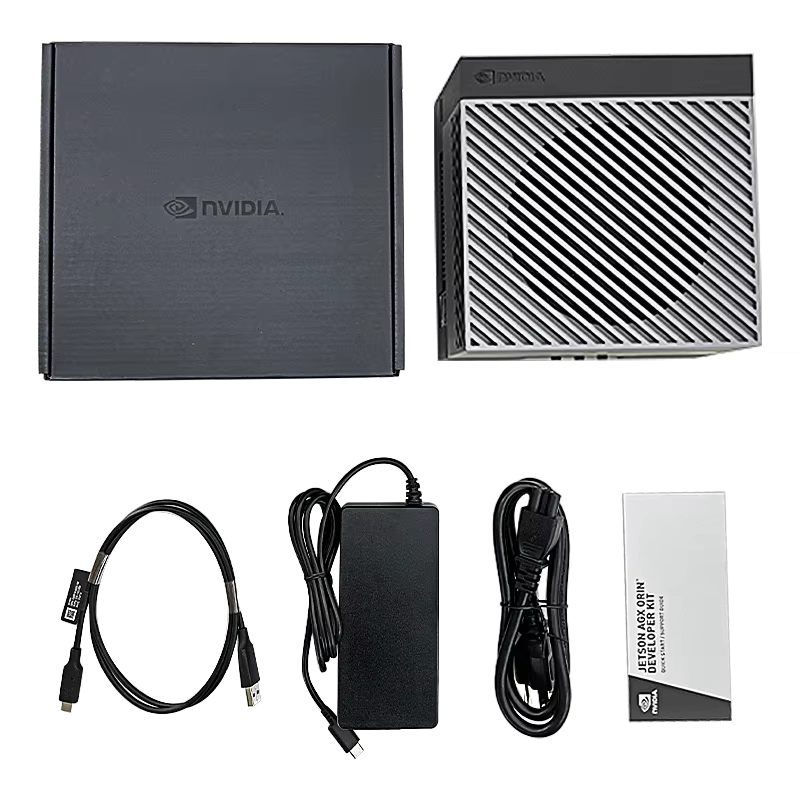

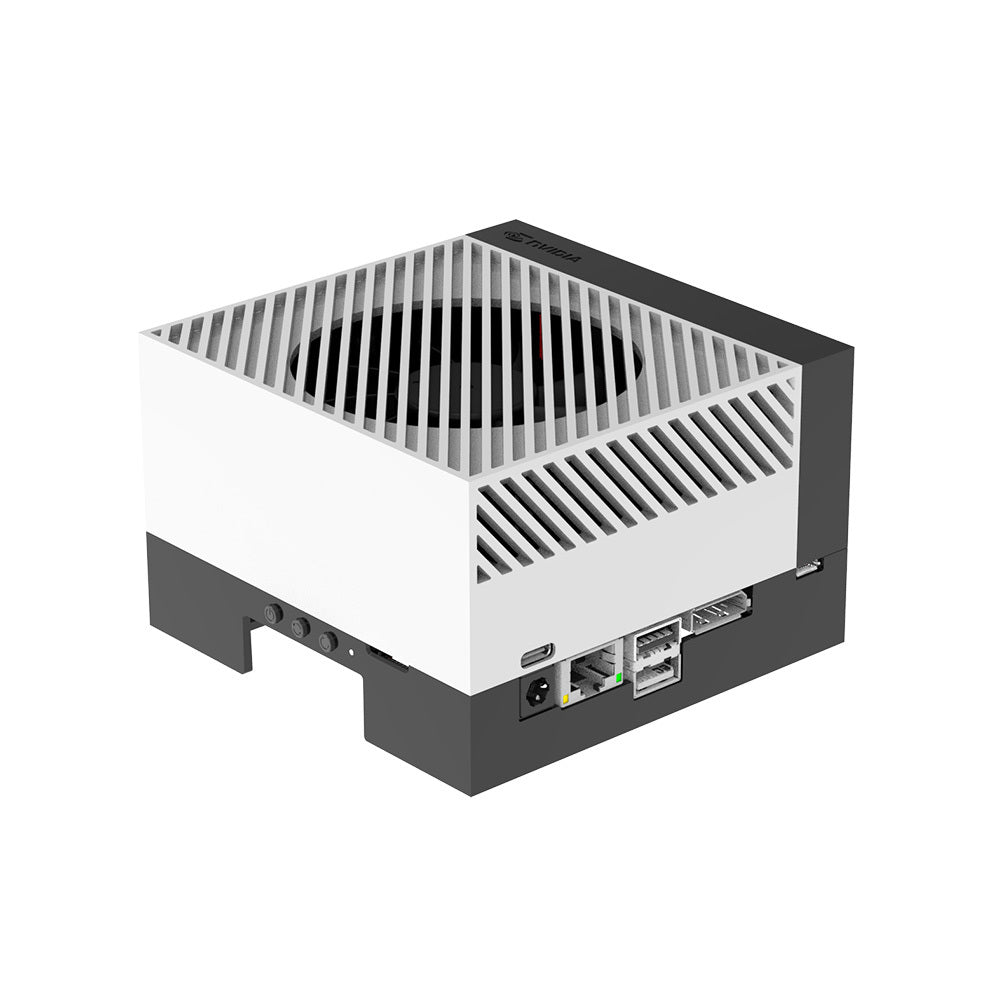

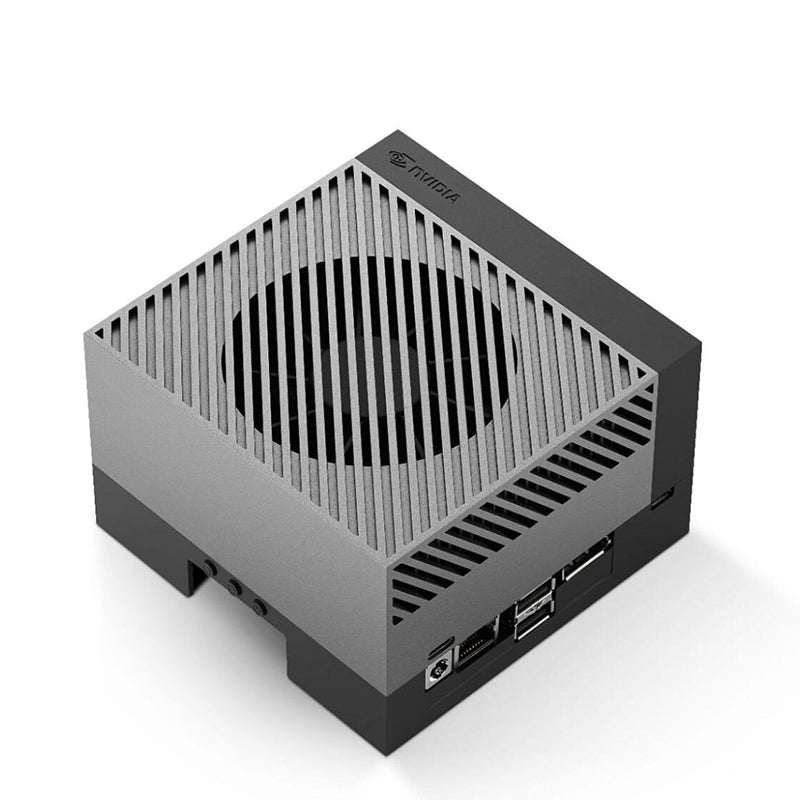

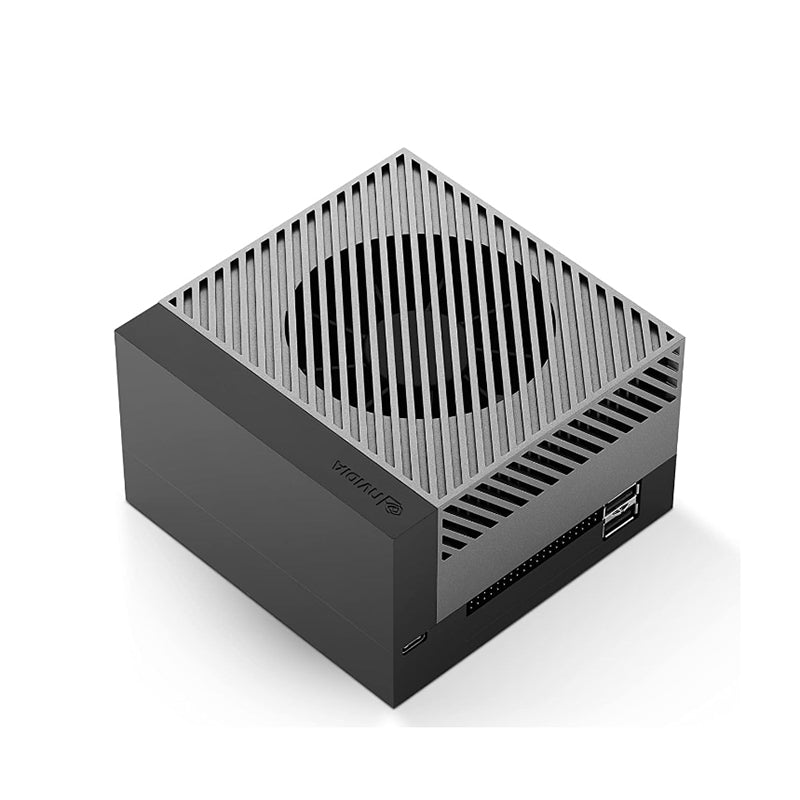

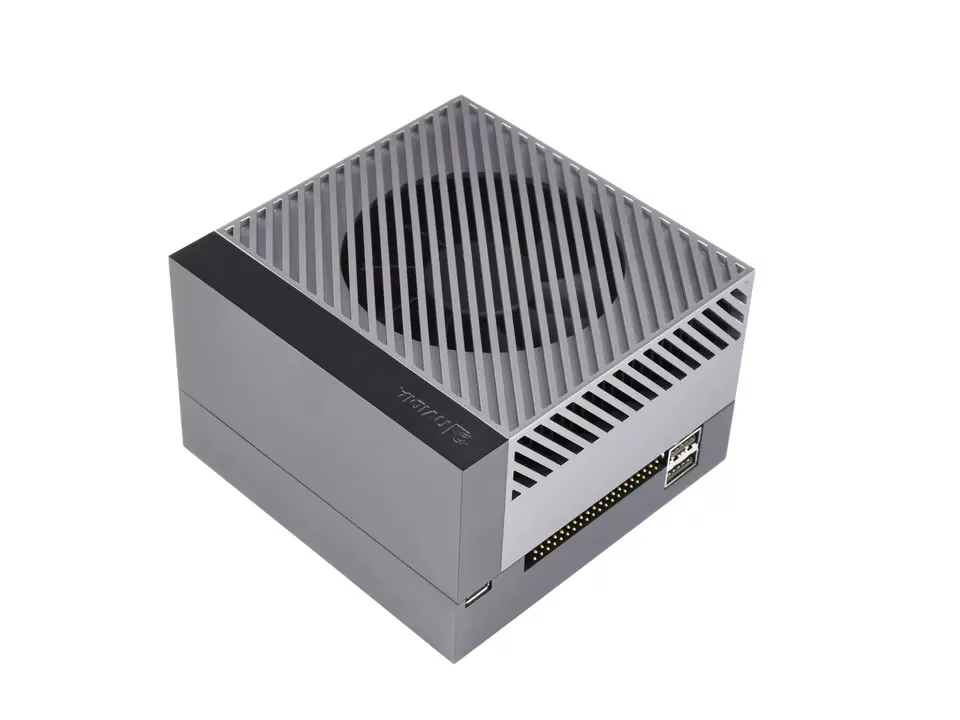

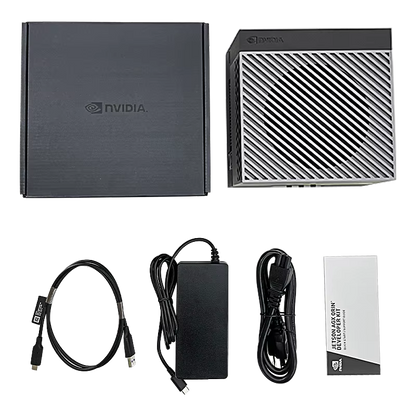

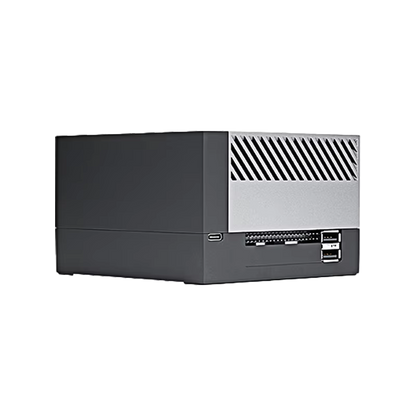

The NVIDIA Jetson AGX Orin Developer Kit is the official development platform for the Jetson AGX Orin series, built around the AGX Orin 64GB module. It combines a 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores, a 12-core Arm Cortex-A78AE CPU and 64GB of LPDDR5 memory to deliver up to 275 TOPS of AI performance for robotics, autonomous machines, intelligent video analytics and other advanced edge AI systems. The kit includes the developer carrier board with camera, PCIe, USB and expansion connectivity for fast prototyping and evaluation.
Specifications
Specification
Value
NVIDIA Part Number
945-13730-0050-000
AI Performance
275 TOPS
GPU
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores, up to 1.3 GHz
CPU
12-core Arm Cortex-A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3, up to 2.2 GHz
Memory
64GB 256-bit LPDDR5, 204.8 GB/s
Storage
64GB eMMC 5.1, microSD slot (UHS-1, up to SDR104), M.2 Key M NVMe support
Camera
16-lane MIPI CSI-2 connector
Expansion
M.2 Key E slot (PCIe 4.0)
USB
2 × USB Type-C (USB 3.2), 2 × USB Type-A (USB 3.2), 1 × USB Micro-B (USB 2.0)
Other I/O
40-pin expansion header
Dimensions
100 mm × 110 mm × 71.8 mm (height includes bracket)
