Mixed I/O data acquisition module combining analog input, analog output and digital I/O.
Specifications
Analog input: 4 differential + 8 single-ended channels (shared terminals), ±10 V range, 16-bit
Analog input accuracy: ±0.02% FSR; sampling 1000 samples/s (single channel)
Analog output: 2 channels, 12-bit, ±0.1% FSR
Digital: 2 open-collector outputs, 2 inputs (configurable as counters)
Operating temperature: -40 °C to +85 °C

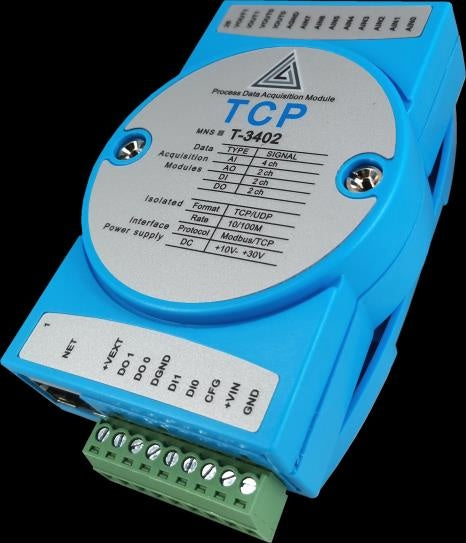

Ethernet version: port / power / RJ-45 isolation printed as 1000 V DC in the manual
Series features
32-bit ARM processor with embedded real-time operating system
Single power supply: +10 V to +30 V DC
Isolation: 2500 V DC (Ethernet version 1000 V DC, see specifications)
Operating temperature: -40 °C to +85 °C
Firmware remote upgrade
Plastic housing, DIN-rail mounting

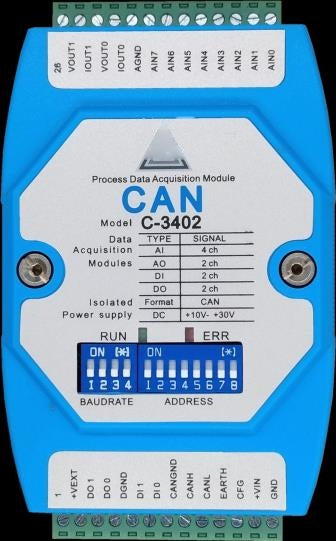

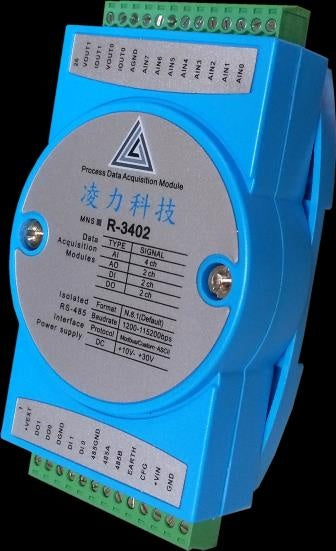

Four interface versions are available: RS-485 (Modbus RTU and custom ASCII), Ethernet (Modbus TCP), CAN bus, and 4G / NB-IoT. The 4G / NB-IoT version is listed in the manufacturer’s price list; its detailed protocol specifications are not included in the product manual.
