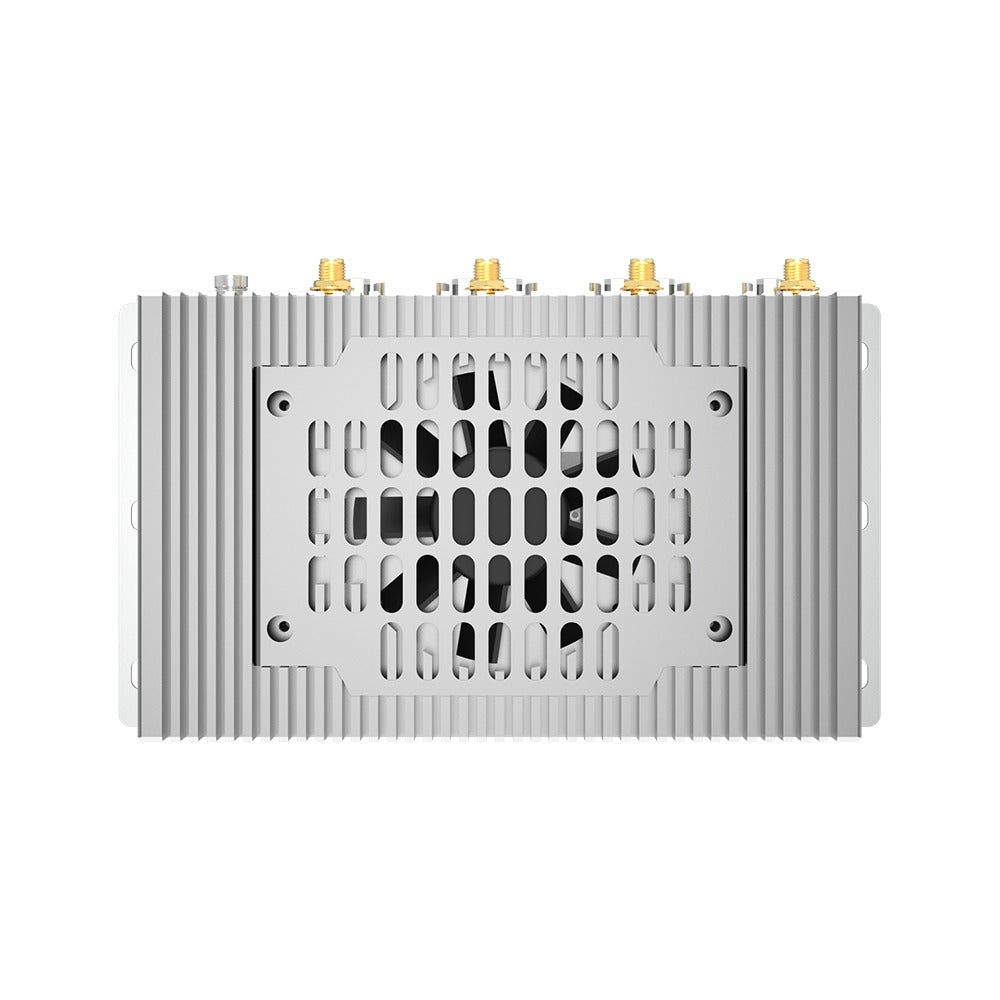

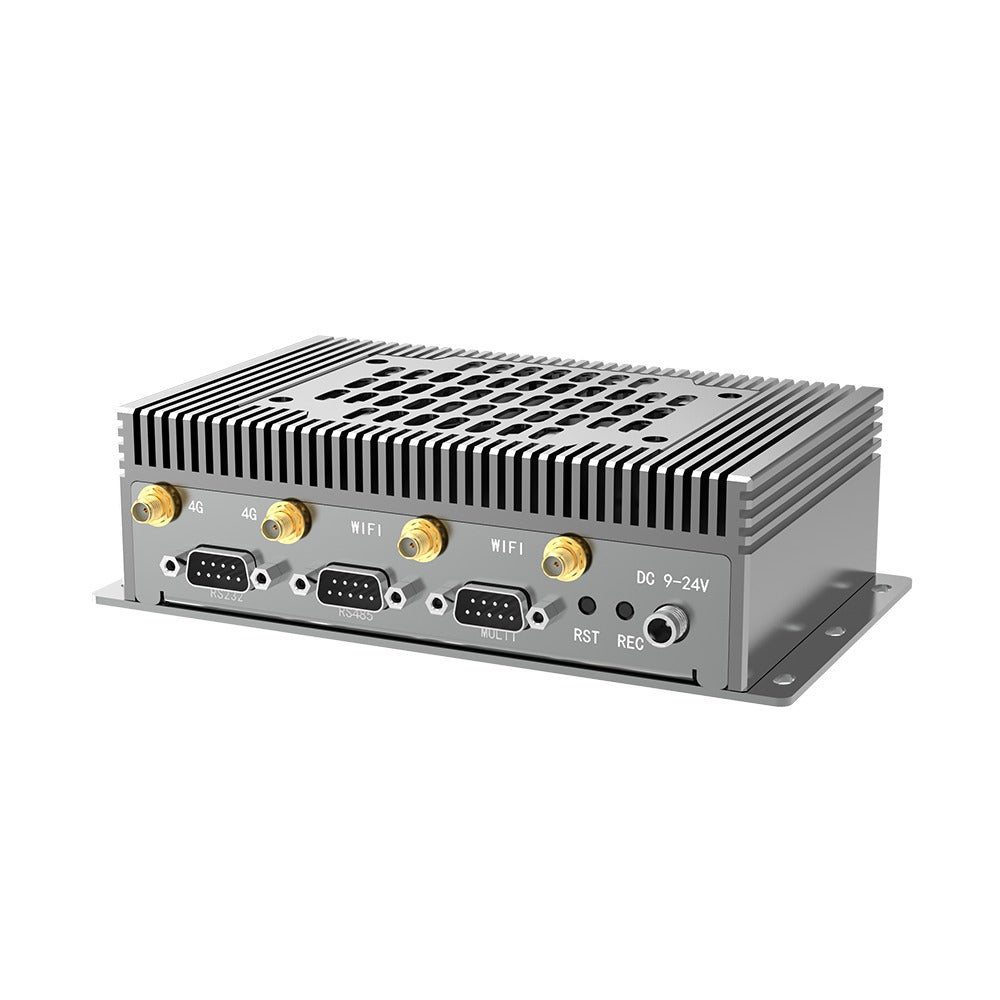

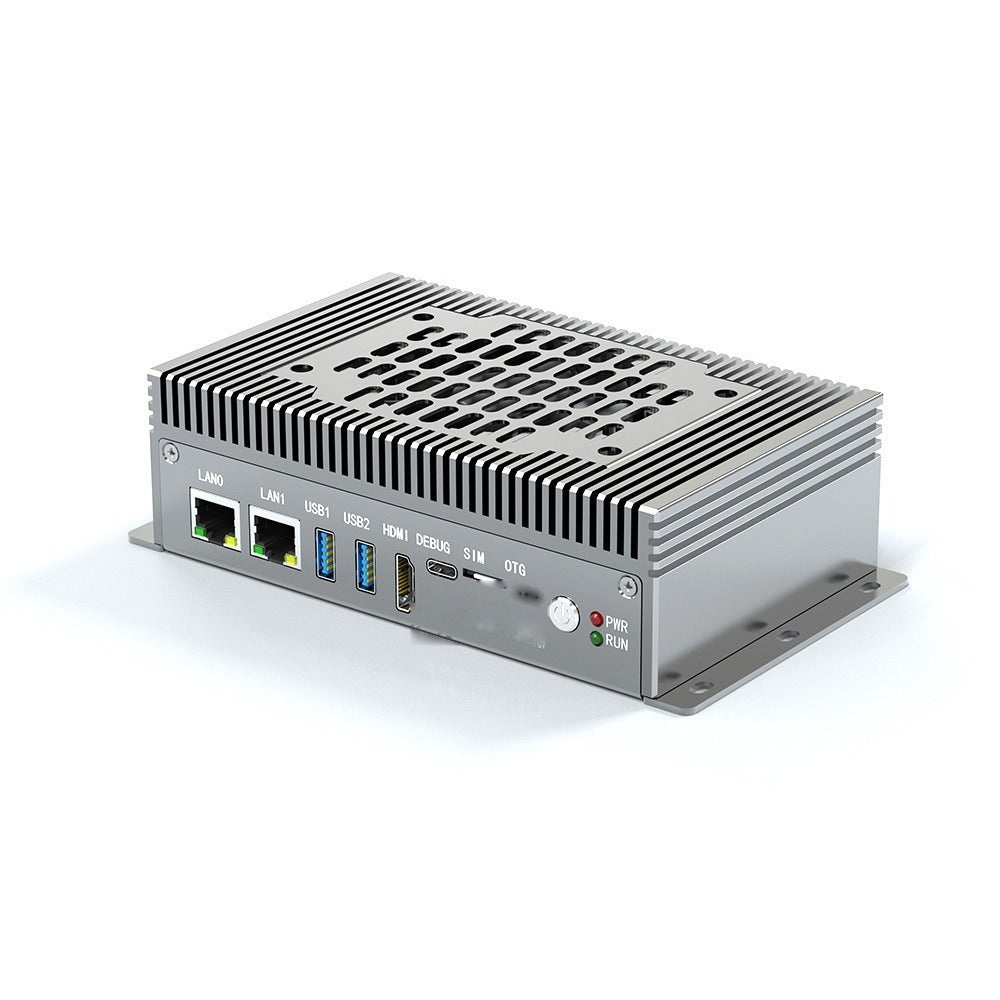

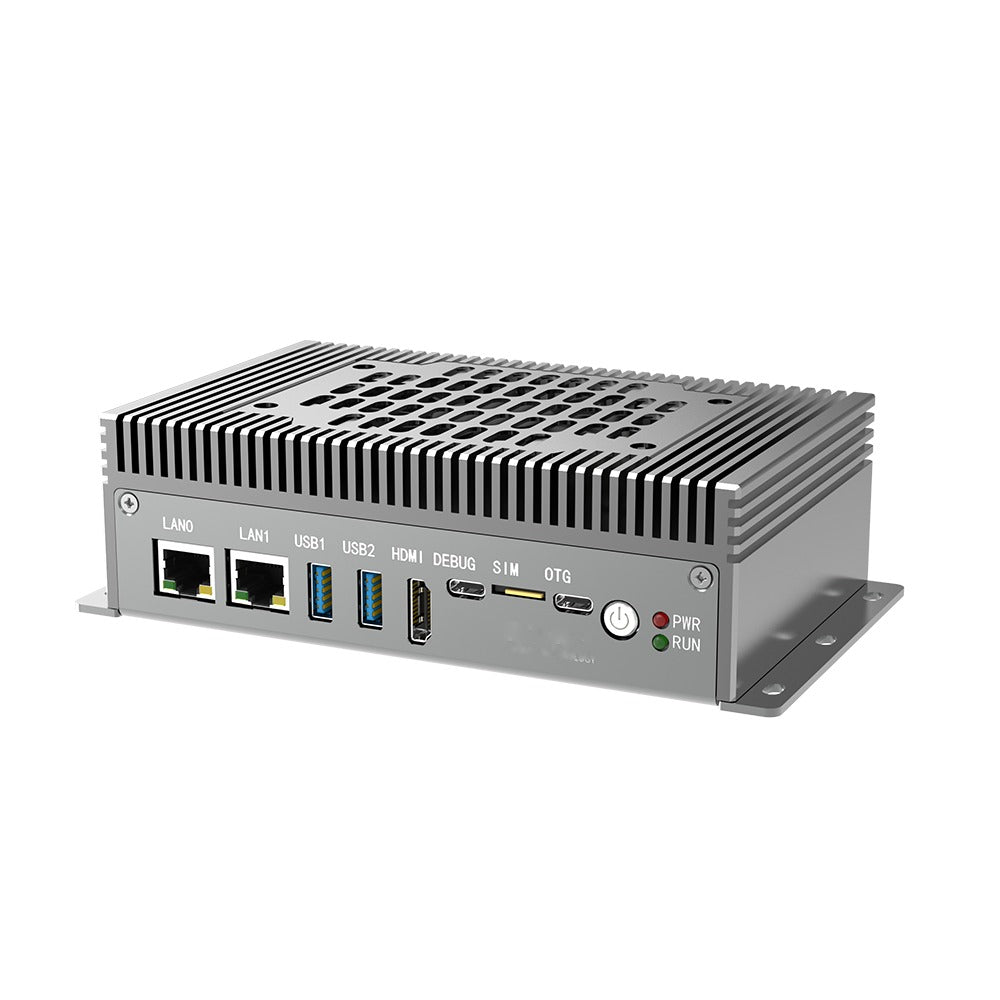

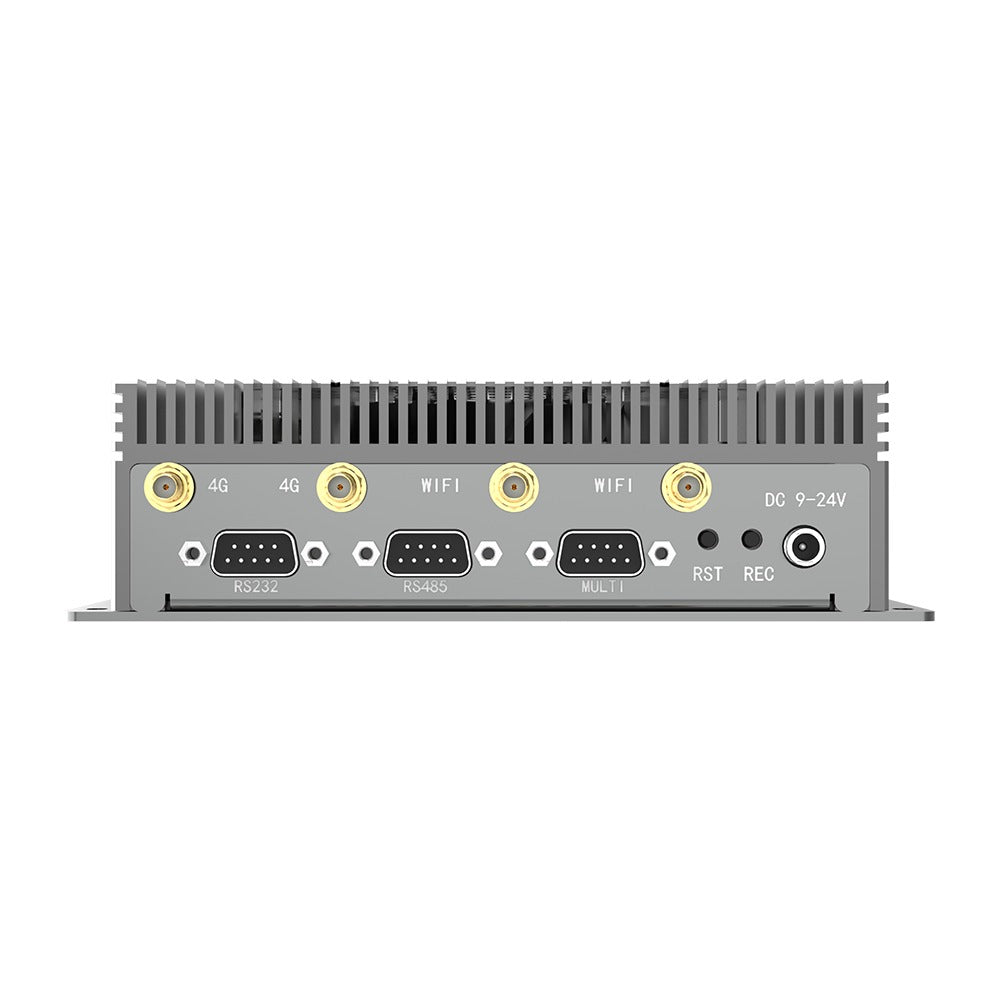

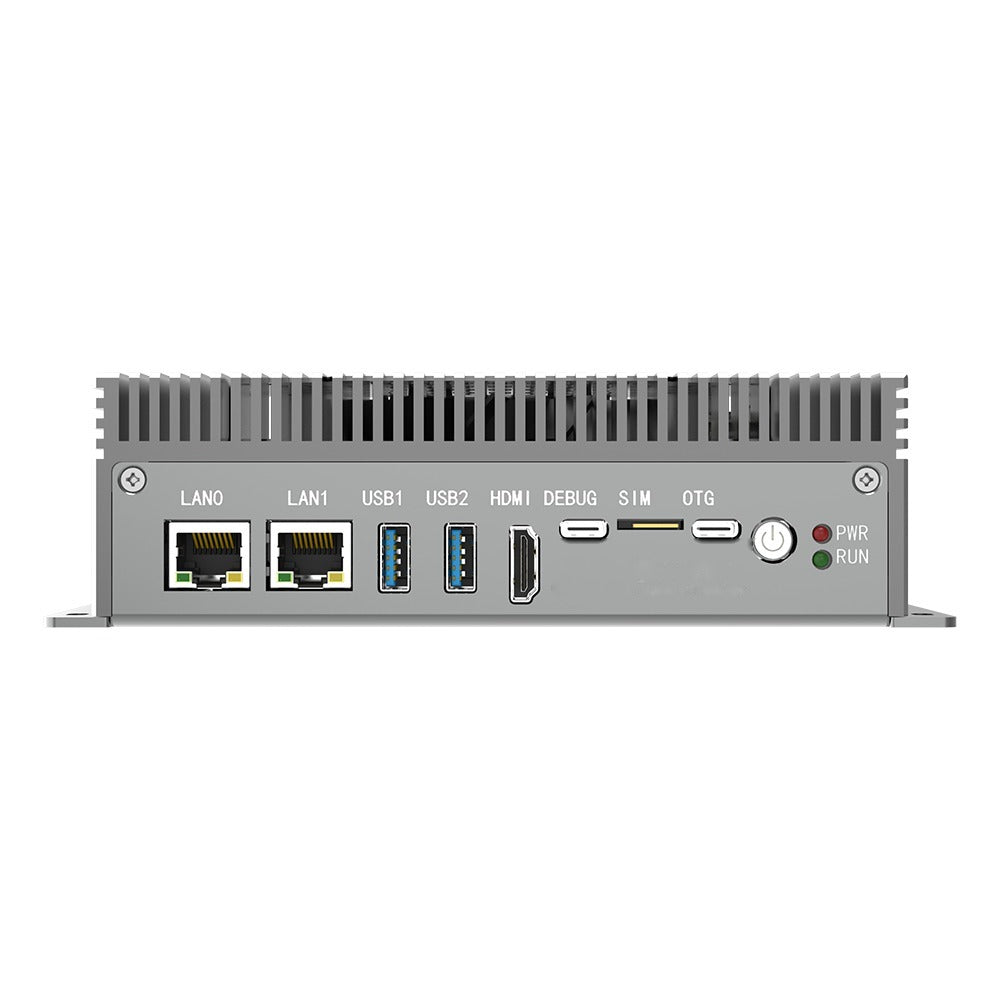

The T818 is an industrial edge AI computer built around the NVIDIA Jetson Orin NX module. The 8GB version delivers 70 TOPS of AI performance (117 TOPS in Super Mode) with a 6-core Arm Cortex-A78AE CPU; the 16GB version delivers 100 TOPS (157 TOPS in Super Mode) with an 8-core CPU. Both versions share a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores and 102.4 GB/s of LPDDR5 memory bandwidth. The fan-cooled finned aluminum enclosure (160 × 100 × 50 mm) provides dual Gigabit Ethernet with optional PoE, two USB 3.2 Type-A ports plus Type-C OTG and Debug ports, HDMI 2.0, RS232 and RS485 serial (DB9), CAN-FD and GPIO, with a wide 9–24V DC input and a −20°C to 70°C operating range for machine vision, factory automation, intelligent transportation and robotics. Storage is provided by an M.2 Key M NVMe SSD (external NVMe support), and Ubuntu 20.04 comes pre-installed.
Model Comparison
Specification
T818 8GB
T818 16GB
Model
T818 8GB
T818 16GB
SKU
ADK-T818-8GB
ADK-T818-16GB
Memory
8GB LPDDR5
16GB LPDDR5
AI Performance
70 TOPS (Super Mode 117 TOPS)
100 TOPS (Super Mode 157 TOPS)
CPU
6-core Arm Cortex-A78AE v8.2 64-bit (1.5MB L2 + 4MB L3)
8-core Arm Cortex-A78AE v8.2 64-bit (2MB L2 + 4MB L3)
Specifications
Specification
Value
Module
NVIDIA Jetson Orin NX
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Memory Bandwidth
102.4 GB/s (128-bit LPDDR5)
Storage
1× M.2 Key M slot (PCIe NVMe 2280 SSD); external NVMe support
