Jetson Orin NX Edge AI Computer T808P

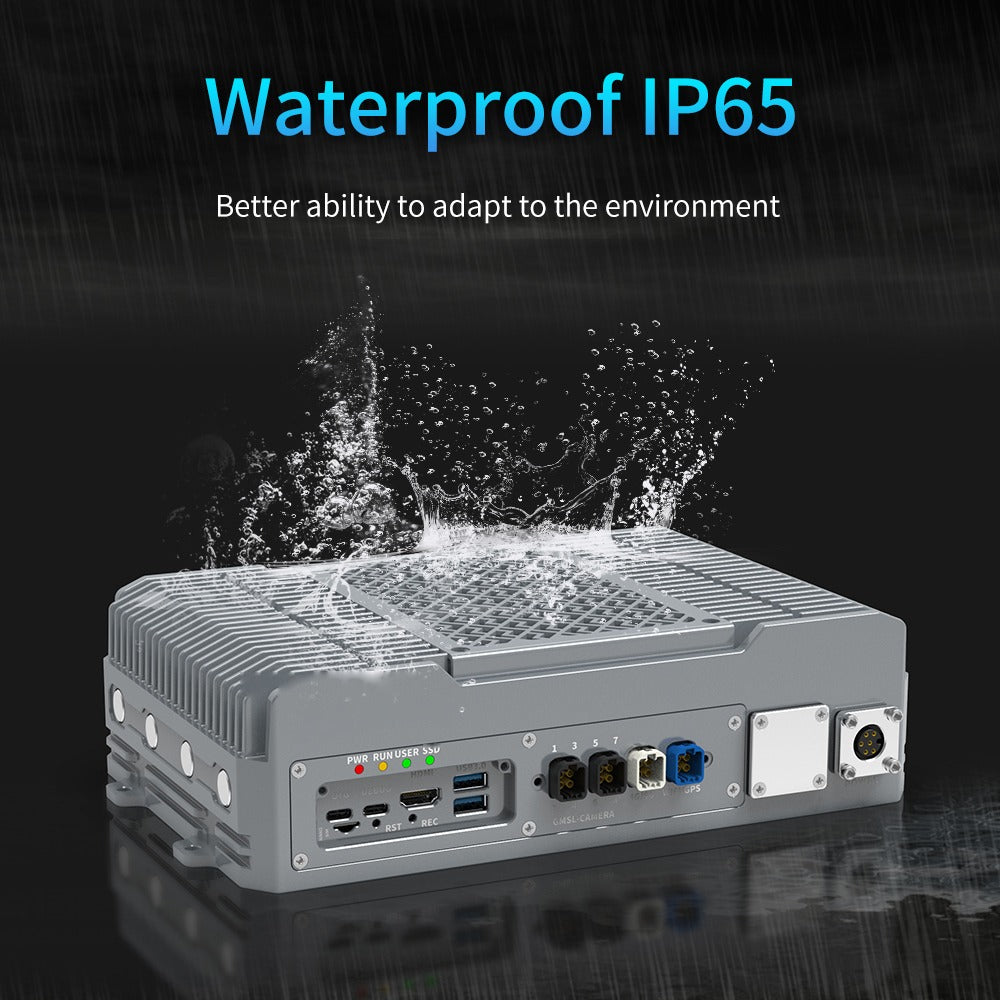

The T808P is an enclosed edge AI computer built around the NVIDIA Jetson Orin NX module, delivering up to 157 TOPS of AI performance (Super mode) in a sealed, fan-cooled IP65 vehicle-grade enclosure. Five M12 Gigabit Ethernet ports, a wide-range 9–36V DC power input with ACC support, and multi-mode GNSS options make it suited to intelligent transportation, in-vehicle computing, machine vision and industrial automation. The T808P-G configurations add an 8-channel GMSL2 camera interface for vehicle camera systems.

Model Comparison

Specifications

• Module: NVIDIA Jetson Orin NX
• GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
• CPU: 6-core Arm Cortex-A78AE v8.2 64-bit CPU, up to 2 GHz (8GB configuration)
• Memory: 8GB / 16GB 128-bit LPDDR5
• Video encode: 1× 4K60 / 3× 4K30 / 6× 1080p60 / 12× 1080p30 (H.265)
• Video decode: 4× 4K30 / 9× 1080p60 / 18× 1080p30 (H.265)
• Ethernet: 1× M12 Gigabit Ethernet (independent IP), 4× M12 Gigabit Ethernet (shared IP, PoE support)
• Wireless: WiFi 2.4/5GHz dual-band (optional); 4G/5G (optional); GNSS multi-mode (BeiDou/GPS) with meter/centimeter-level positioning, RTK/INS (optional); 1× SIM card slot
• Display: 1× HDMI
• USB: 2× USB 3.0 Type-A, 1× Type-C OTG, 1× Type-C Debug
• Serial: 1× RS232, 2× RS485
• CAN: 1× CAN-FD, 1× SPI-CAN-FD
• Multi-function interface: 2GPIO+2GPO (3.3V@1mA, isolated), 2GPIO+2GPO (12V@1mA, isolated)
• Storage interface: M.2 Key M slot for a 2280 PCIe SSD; M.2 Key E for WiFi

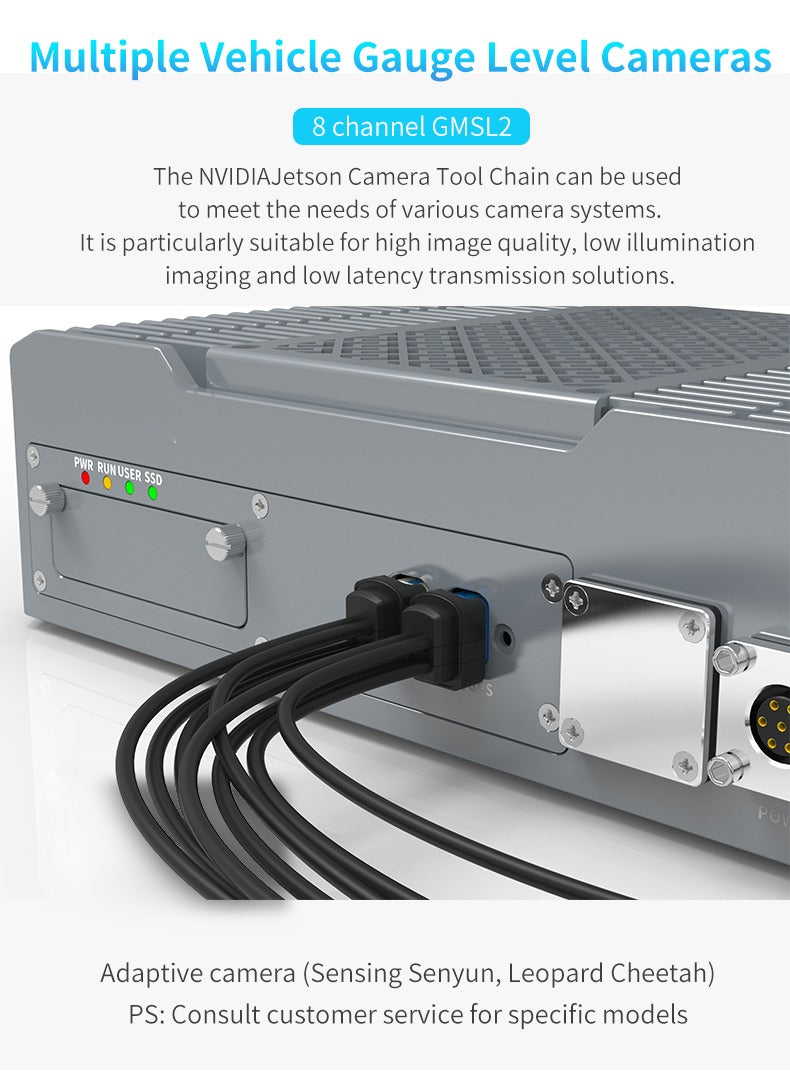

• GMSL camera interface: 8× GMSL2 (T808P-G configurations)
• Synchronization: PTP, PPS output/input, PWM output (optional); RTC
• Power input: 9–36V DC, supports ACC; M16 6-pin aviation connector
• Dimensions: 295 × 207.1 × 76.5 mm
• Cooling: fan cooling
• Operating temperature: −20°C to +50°C (standard) / −40°C to +60°C (optional); humidity 5%–95%, non-condensing
