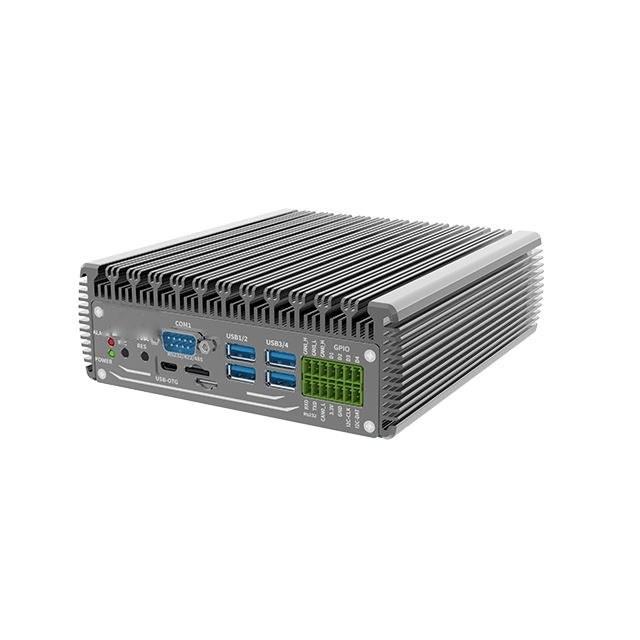

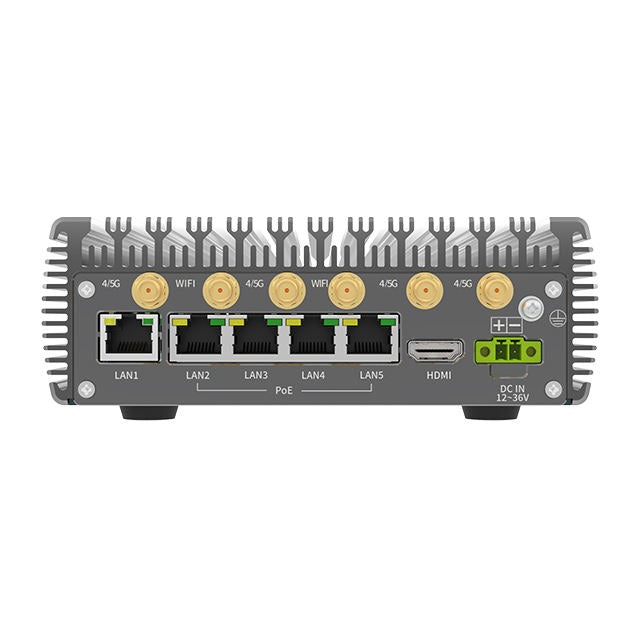

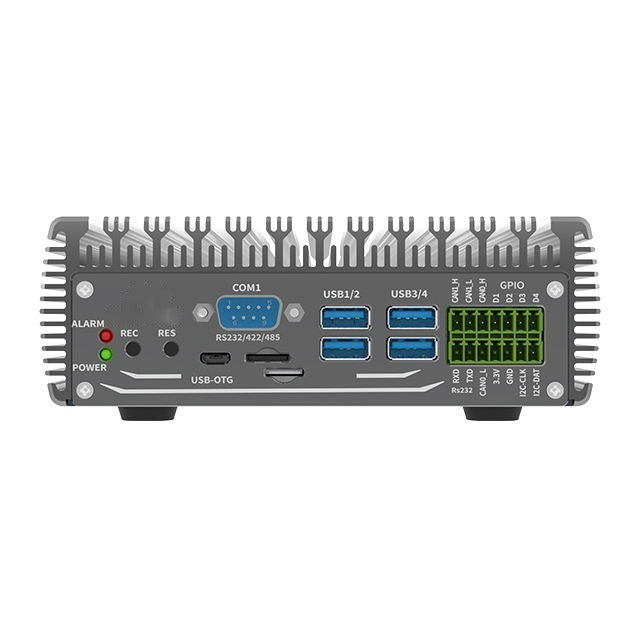

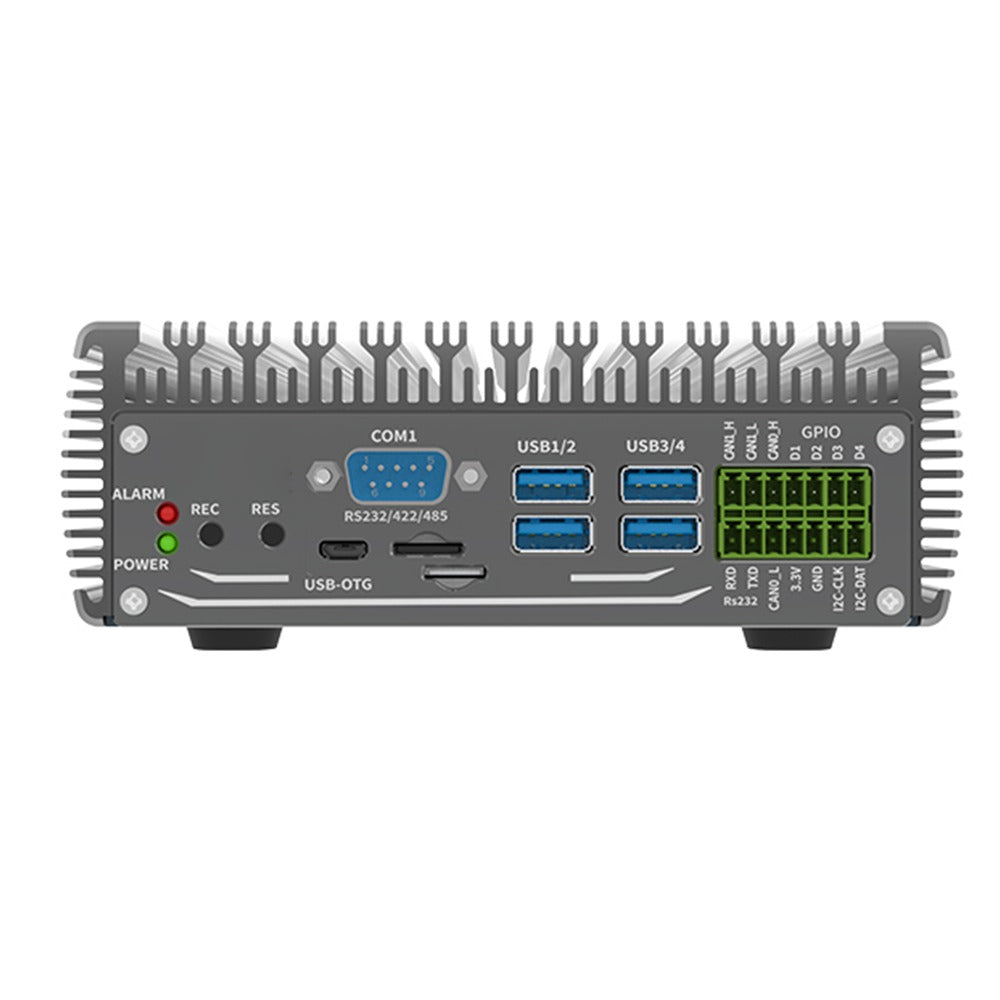

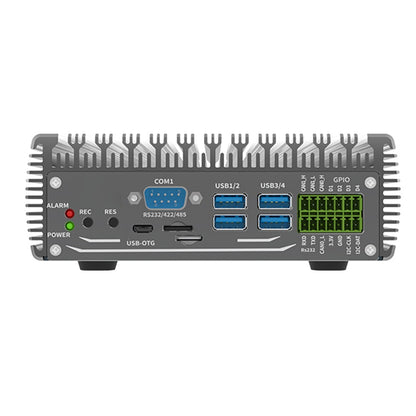

The T806 is a fanless edge AI computer built around the NVIDIA Jetson Orin NX module, delivering up to 100 TOPS of AI performance in a passively cooled finned metal enclosure with no moving parts. Five RJ45 Ethernet ports (LAN2–LAN5 with PoE), 802.11ac WiFi, HDMI 2.0 video output and four USB 3.0 ports make it suited to machine vision, intelligent transportation, robotics and industrial automation. It accepts a wide 12–36V DC power input and supports desktop or wall mounting.
Model Comparison
Configuration
Memory
AI Performance
GPU Max Frequency
CPU
T806 (8GB)
8GB
70 TOPS
765 MHz
6-core Arm Cortex-A78AE (1.5MB L2 + 4MB L3), 2.0 GHz
T806 (16GB)
16GB
100 TOPS
918 MHz
8-core Arm Cortex-A78AE (2MB L2 + 4MB L3), 2.0 GHz
Specifications
Module: NVIDIA Jetson Orin NX
GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Memory: 8GB / 16GB 128-bit LPDDR5, 102.4 GB/s
Storage: 128GB SSD (standard configuration)
Ethernet: 5× RJ45 (LAN2–LAN5 with PoE function, shared network card)
Wireless: 802.11ac WiFi 2.4G/5.8G; 4G/5G module optional (SIM slot on the panel)
