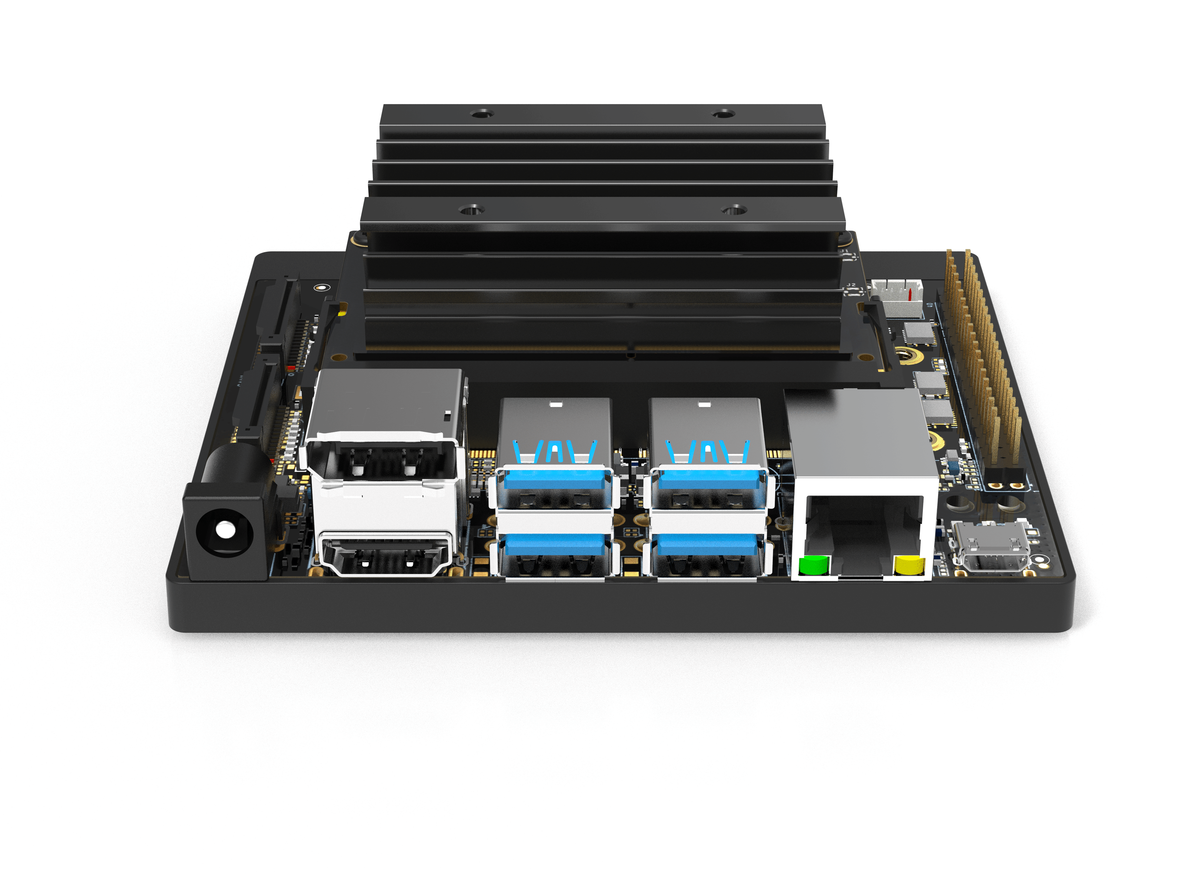

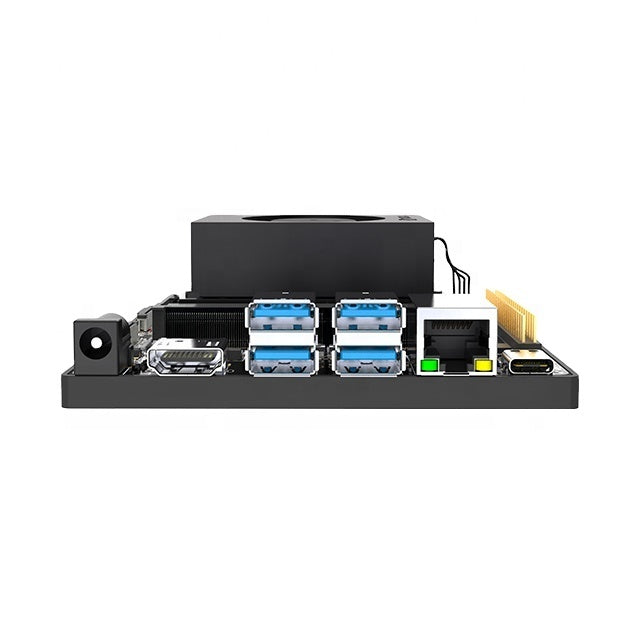

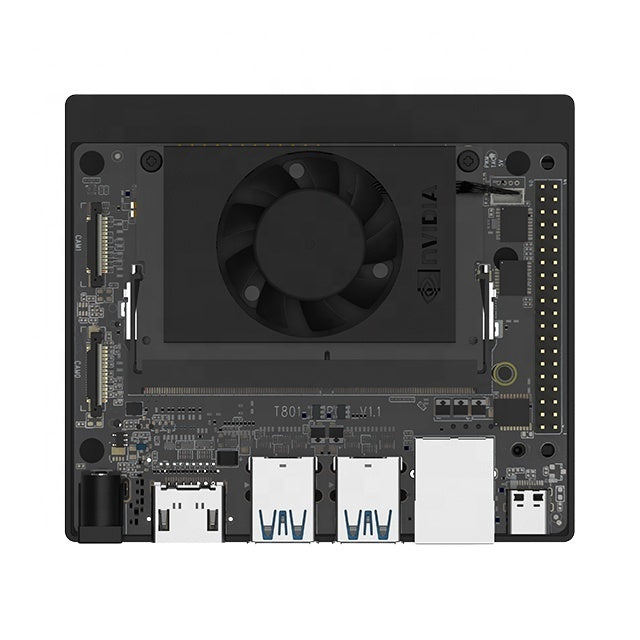

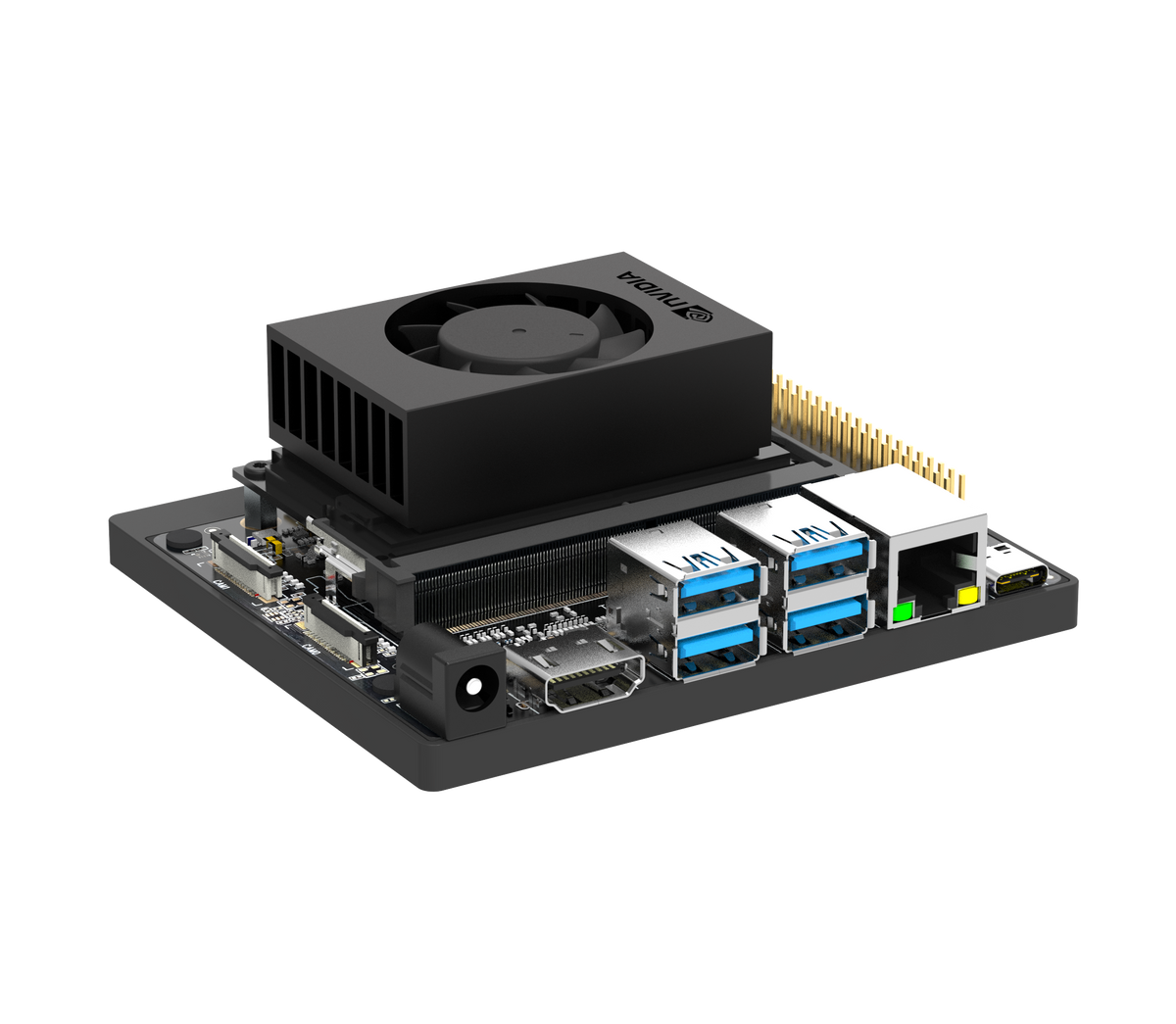

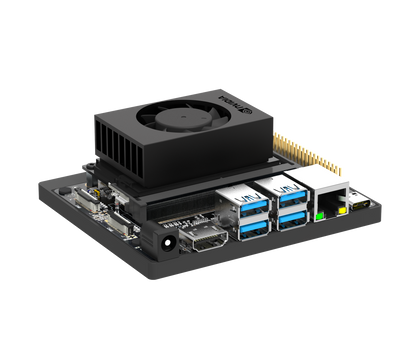

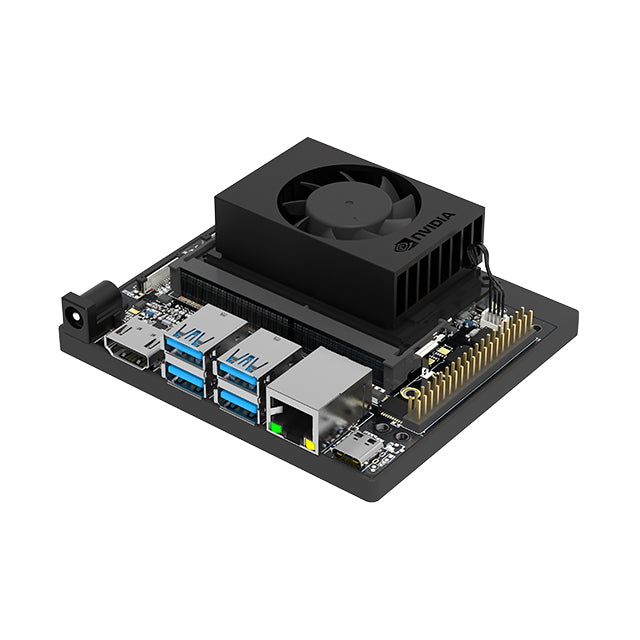

The T801 developer kit pairs an NVIDIA Jetson Orin NX module with a full-featured carrier board in an open, ready-to-run kit: heatsink and cooling fan fitted, a 128GB M.2 SSD and a dual-band WiFi module included, and a power adapter in the box. With a 1024-core NVIDIA Ampere GPU, Gigabit Ethernet, four USB 3.2 ports, dual MIPI CSI-2 camera connectors and 40-pin expansion, it is a complete platform for prototyping and deploying edge AI - robotics, smart cameras, machine vision and intelligent gateways.
Model Comparison
Specification
T801 (8GB)
T801 (16GB)
Memory
8GB 128-bit LPDDR5
16GB 128-bit LPDDR5
AI Performance
70 TOPS
100 TOPS
AI Performance (Super Mode)
117 TOPS
157 TOPS
CPU
6-core Arm Cortex-A78AE v8.2 64-bit (1.5MB L2 + 4MB L3)
8-core Arm Cortex-A78AE v8.2 64-bit (2MB L2 + 4MB L3)
CPU Max Frequency
2 GHz
2 GHz
GPU Max Frequency
765 MHz
918 MHz
DL Accelerator
1 × NVDLA v2
2 × NVDLA v2
Vision Accelerator
1 × PVA v2
1 × PVA v2
Power
10–20 W
10–25 W
Video Encode (H.265)
1 × 4K60, 3 × 4K30
1 × 4K60, 3 × 4K30
Video Decode (H.265)
1 × 8K30, 2 × 4K60
1 × 8K30, 2 × 4K60
Specifications
Specification
Value
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
