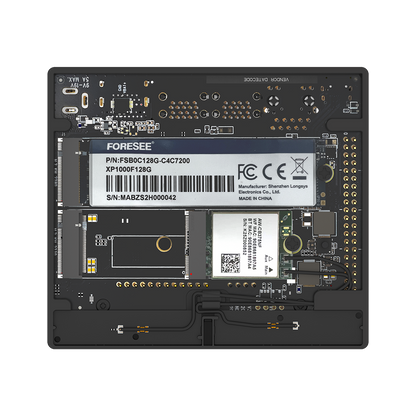

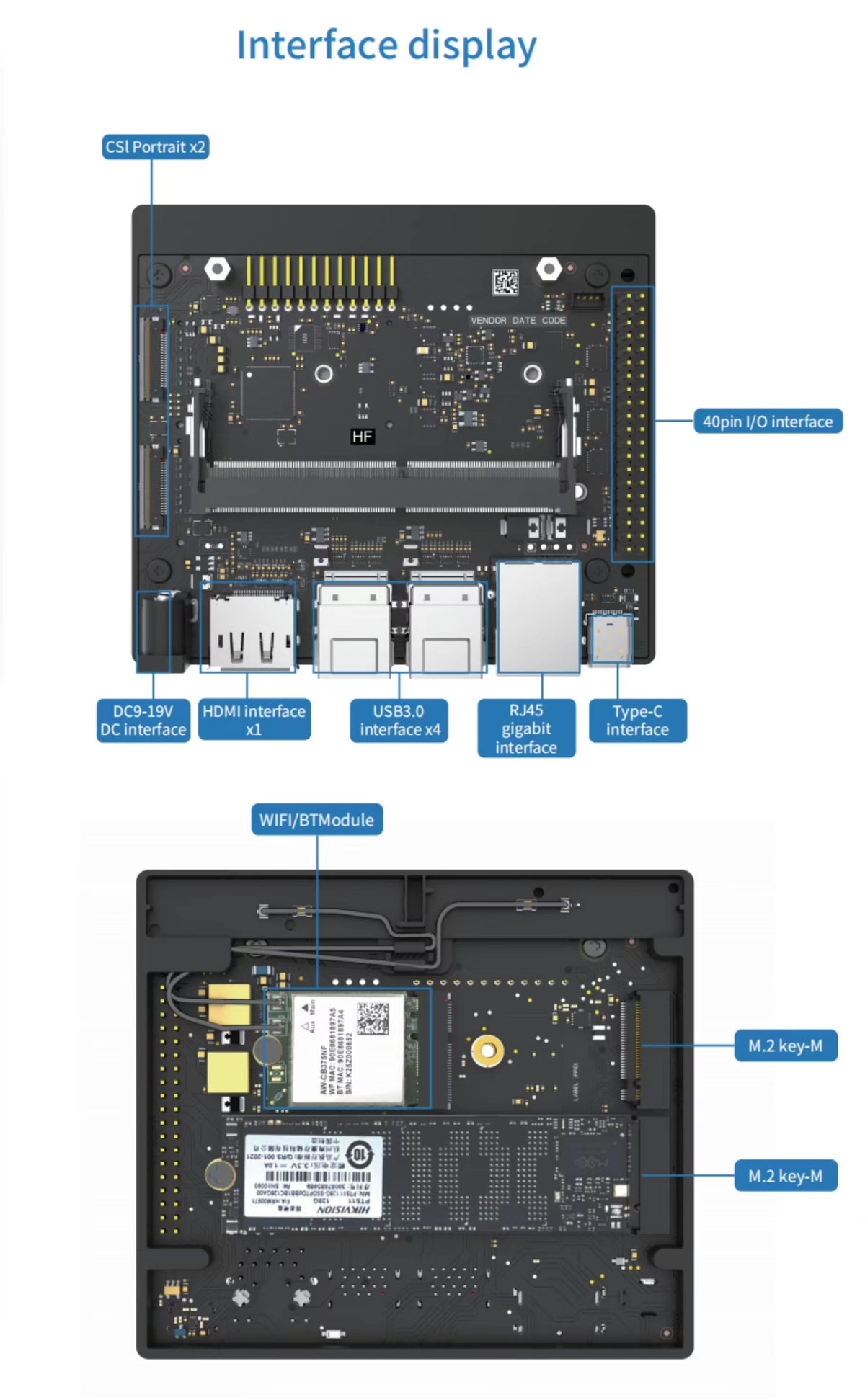

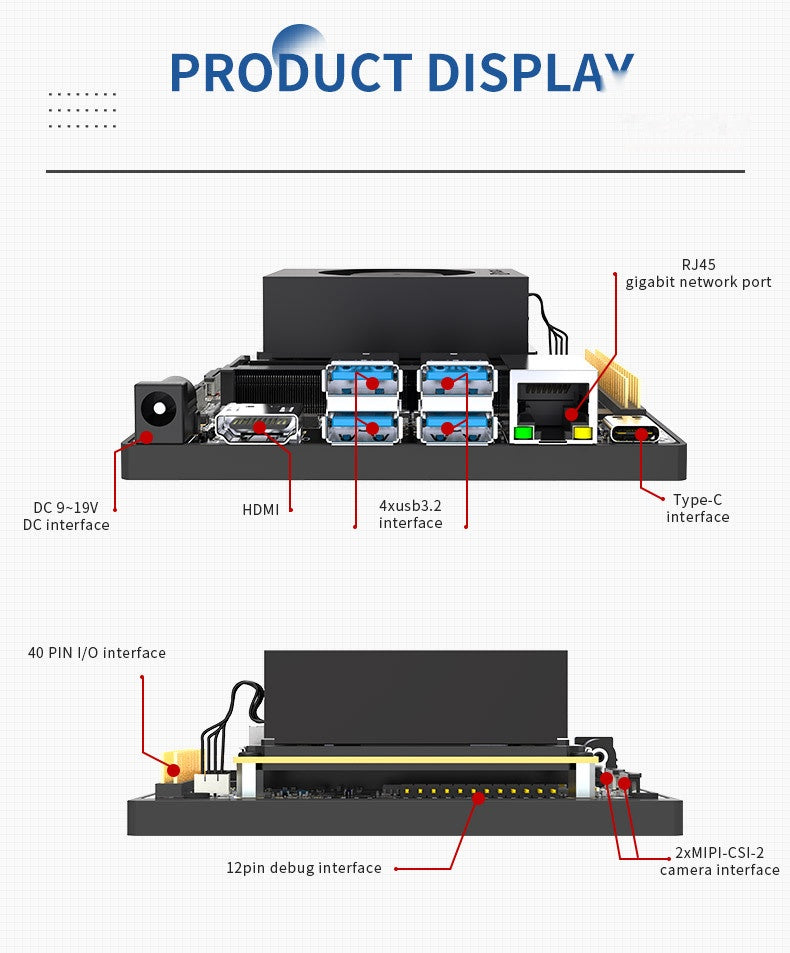

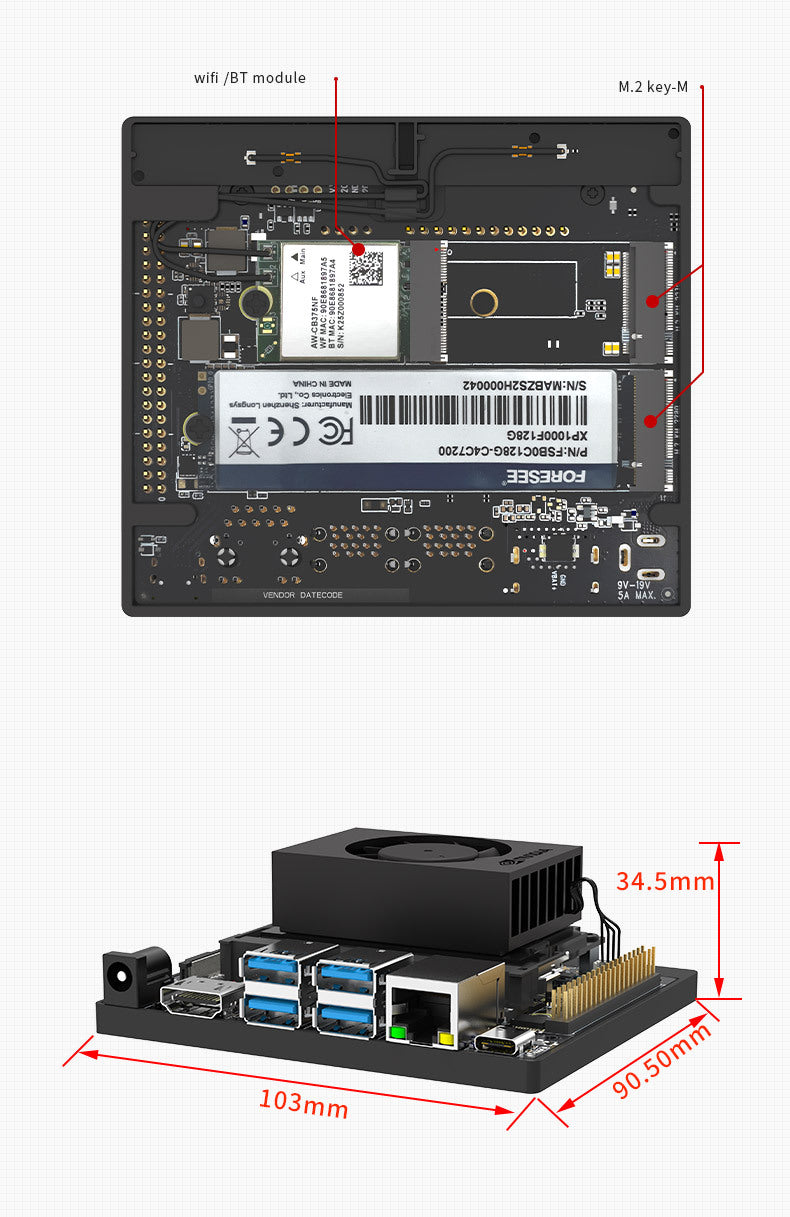

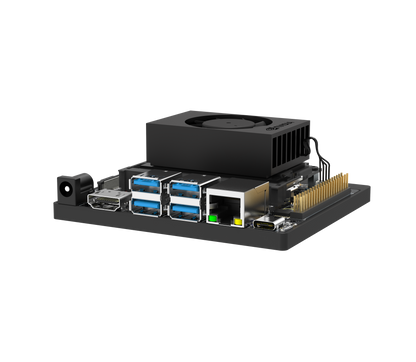

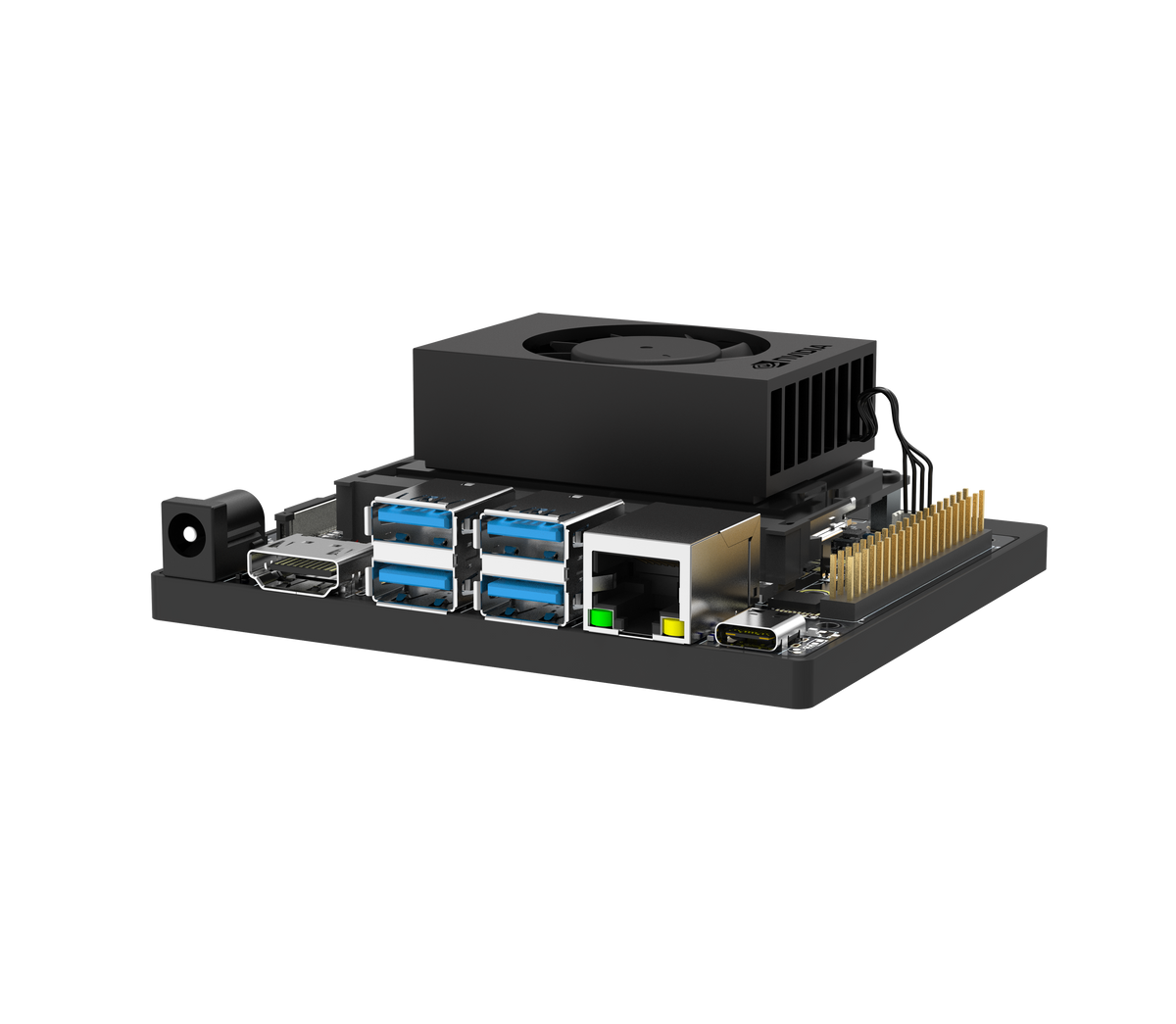

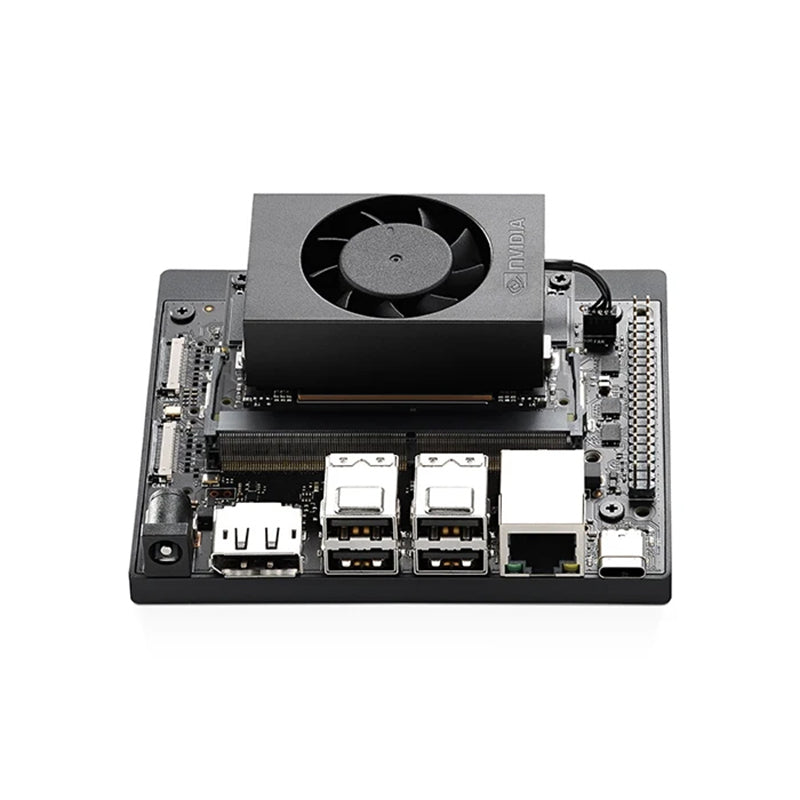

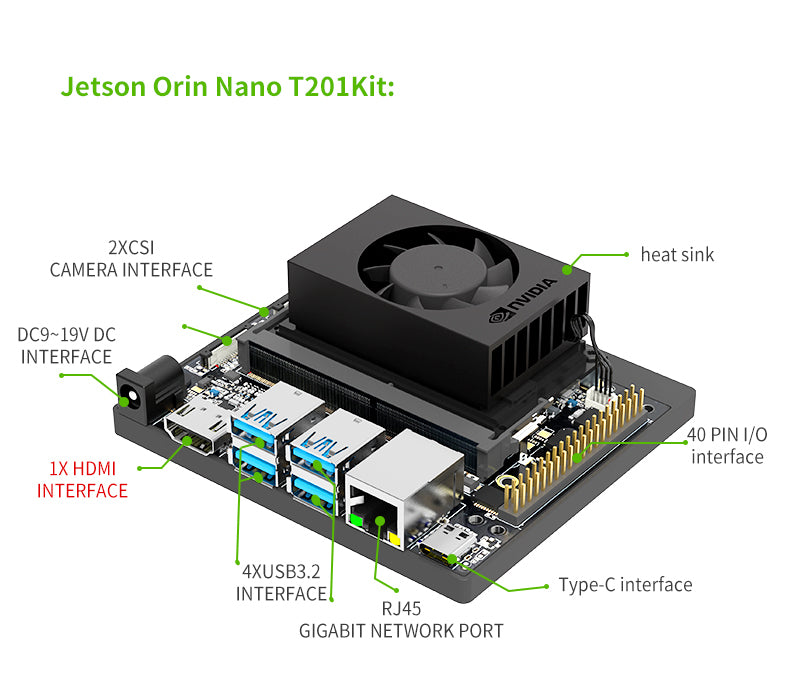

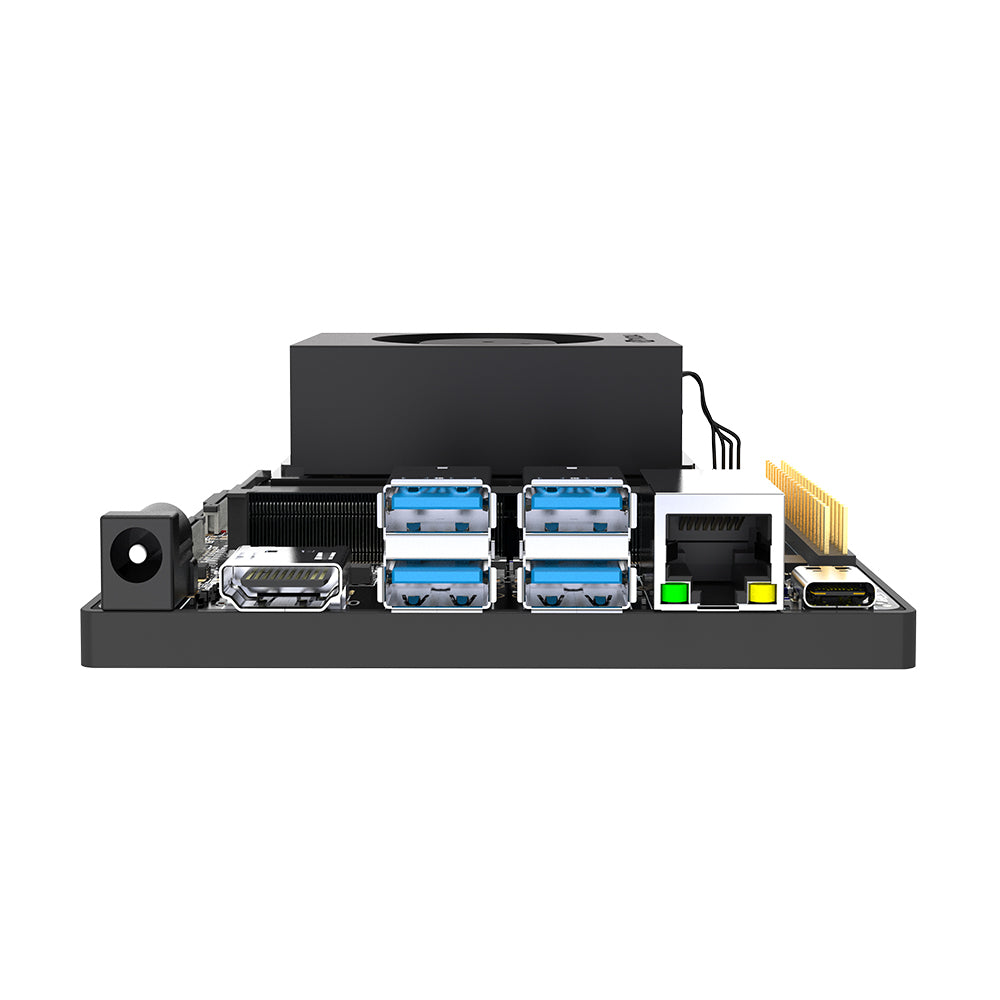

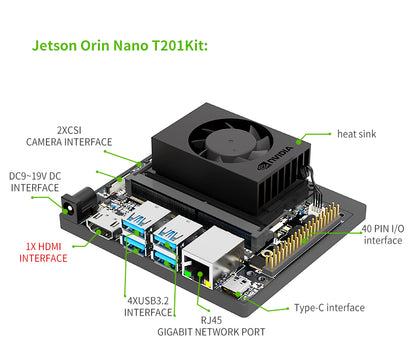

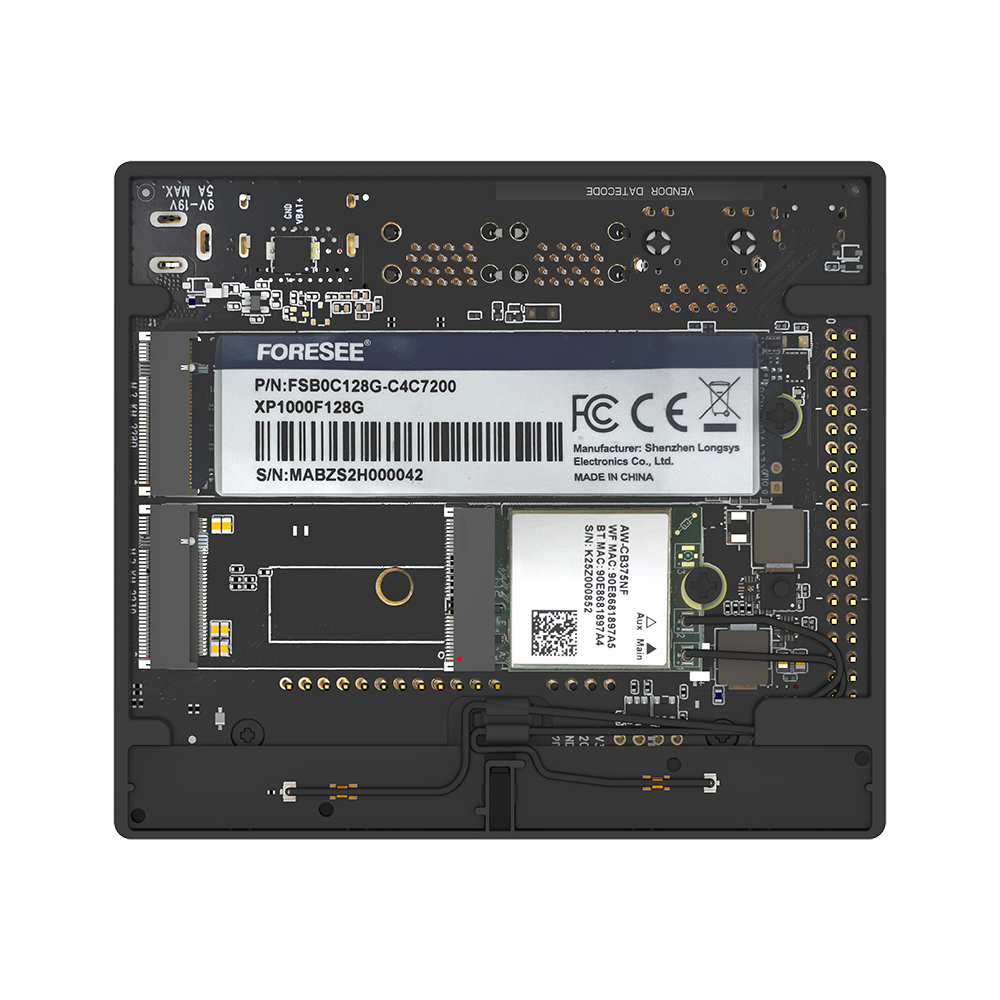

The T201 is a developer kit built around the NVIDIA Jetson Orin Nano module on a compact carrier board with fan-and-heatsink cooling. It provides Gigabit Ethernet, four USB 3.2 Type-A ports, a USB 3.2 Type-C port, HDMI output, two MIPI CSI-2 camera interfaces and a 40-pin GPIO header for embedded AI development. Storage and wireless are expansion-based: an M.2 Key M slot supports an NVMe SSD (SSD not included), an M.2 Key E slot accepts an optional WiFi module, and a Micro SD slot is provided. Power input is DC 9–19V via the barrel connector.
Model Comparison
Specification
T201 4GB
T201 8GB
Model
T201 4GB
T201 8GB
SKU
ADK-T201-4GB
ADK-T201-8GB
Module
NVIDIA Jetson Orin Nano 4GB
NVIDIA Jetson Orin Nano 8GB
Memory
4GB 64-bit LPDDR5
8GB 128-bit LPDDR5
GPU
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
AI Performance
Up to 34 TOPS (Super Mode)
Up to 67 TOPS (Super Mode)
CPU
6-core Arm Cortex-A78AE v8.2 64-bit (1.5MB L2 + 4MB L3)
6-core Arm Cortex-A78AE v8.2 64-bit (1.5MB L2 + 4MB L3)
Ethernet
1x RJ45 Gigabit Ethernet
1x RJ45 Gigabit Ethernet
USB
4x USB 3.2 Type-A, 1x USB 3.2 Type-C
4x USB 3.2 Type-A, 1x USB 3.2 Type-C
Display
1x HDMI
1x HDMI
Camera
2x MIPI CSI-2
2x MIPI CSI-2
Expansion
M.2 Key M (NVMe SSD support, SSD not included), M.2 Key E (WiFi module optional), Micro SD slot
M.2 Key M (NVMe SSD support, SSD not included), M.2 Key E (WiFi module optional), Micro SD slot
