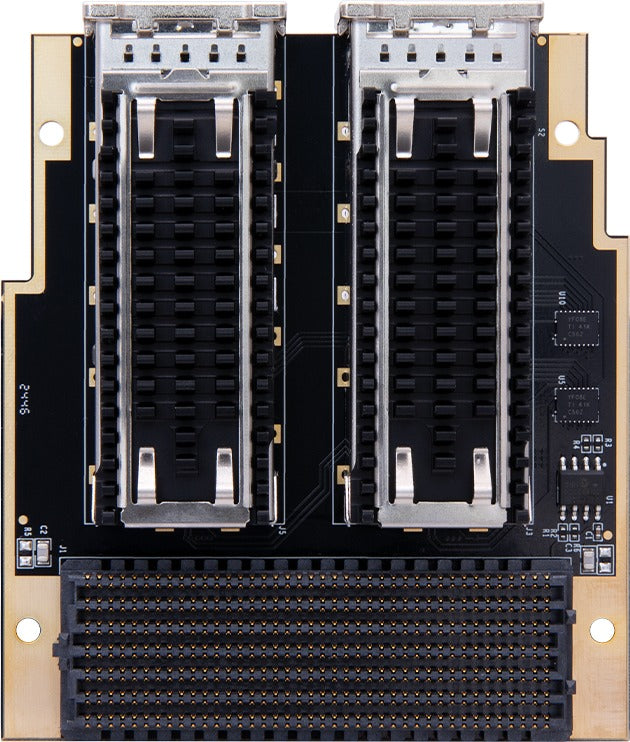

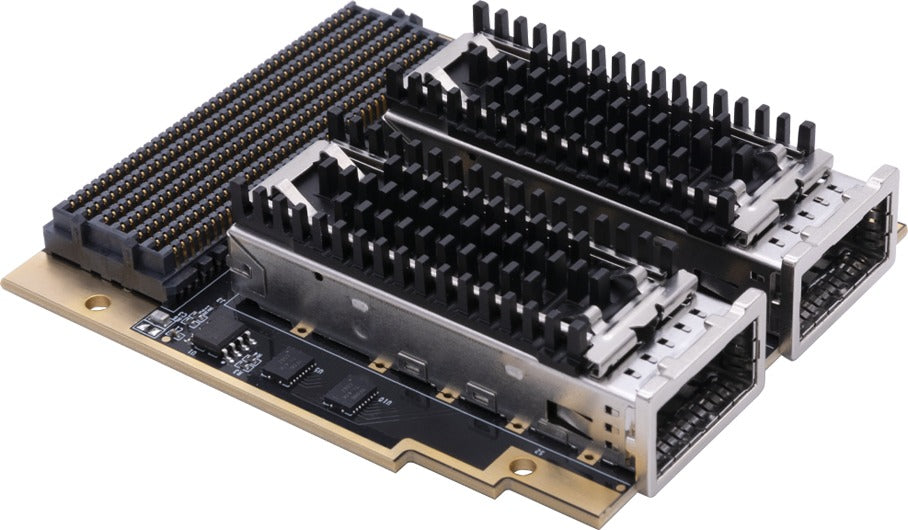

The ADK-2508 is a high-performance fiber-optic module with two 100G QSFP28 interfaces. Each optical transceiver integrates 4 transmit channels and 4 receive channels, achieving a transfer rate of up to 100Gbps per port. The module is designed for higher-density, high-speed pluggable fiber-optic communication solutions.
Specifications
Item
Specification
Model
ADK-2508
Interface type
2x 100G QSFP28 optical fiber interfaces
Transfer rate
Up to 100Gbps per interface
Interface type
FMC+
Reference clock
156.25MHz clock chip

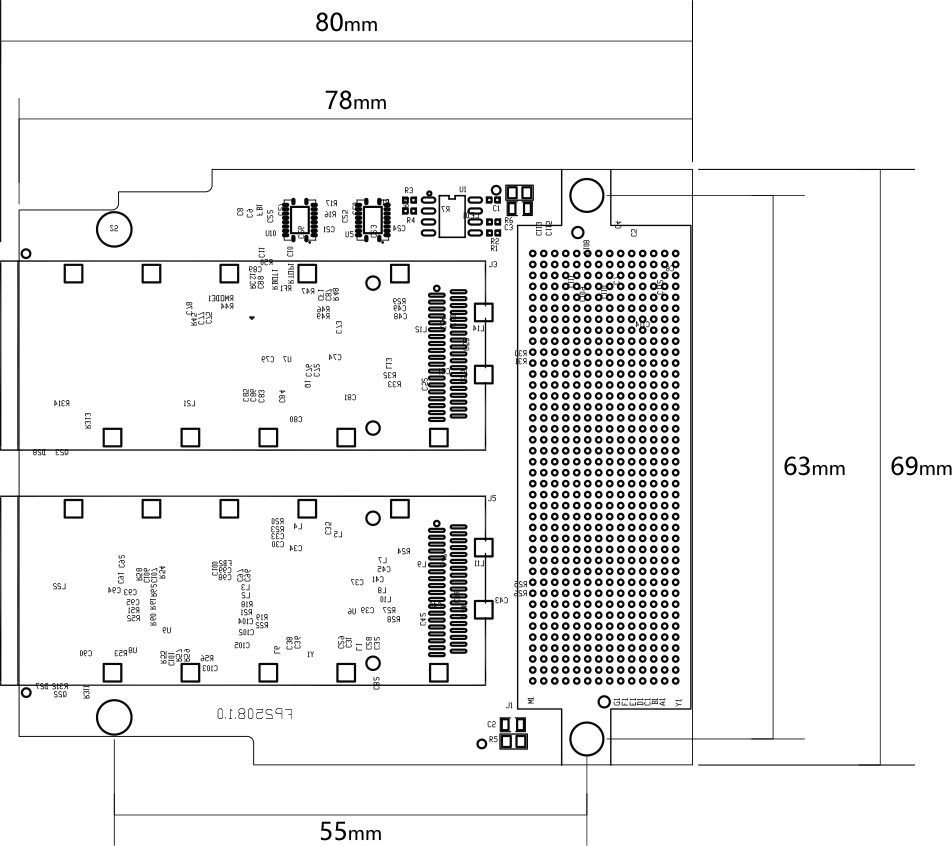

Board dimensions
78 x 69 mm
Warranty
The main body of every product sold is covered by a 12-month warranty. FPGA chips and LCD screens are wear items and are not covered by the warranty. All accessories and gifts are not covered by the warranty.
