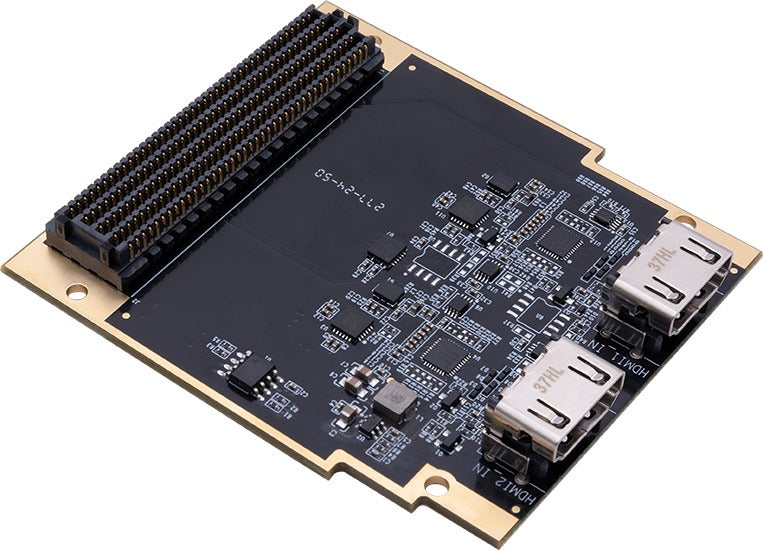

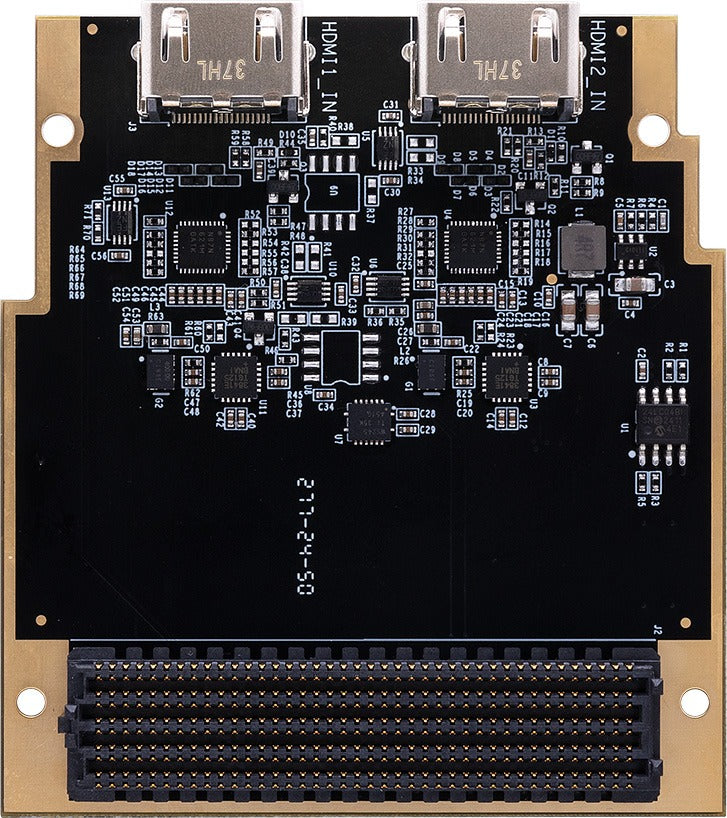

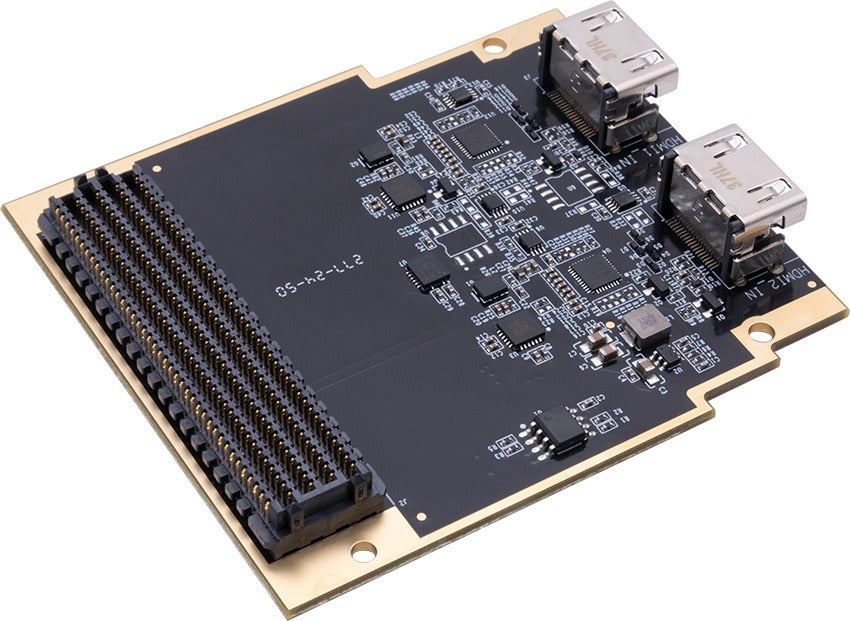

The ADK-7622 is an FMC HPC daughter card that provides two HDMI 2.1 video inputs over an FMC interface, supporting input resolutions up to 8K@60Hz with a total bandwidth of 48 Gbps.

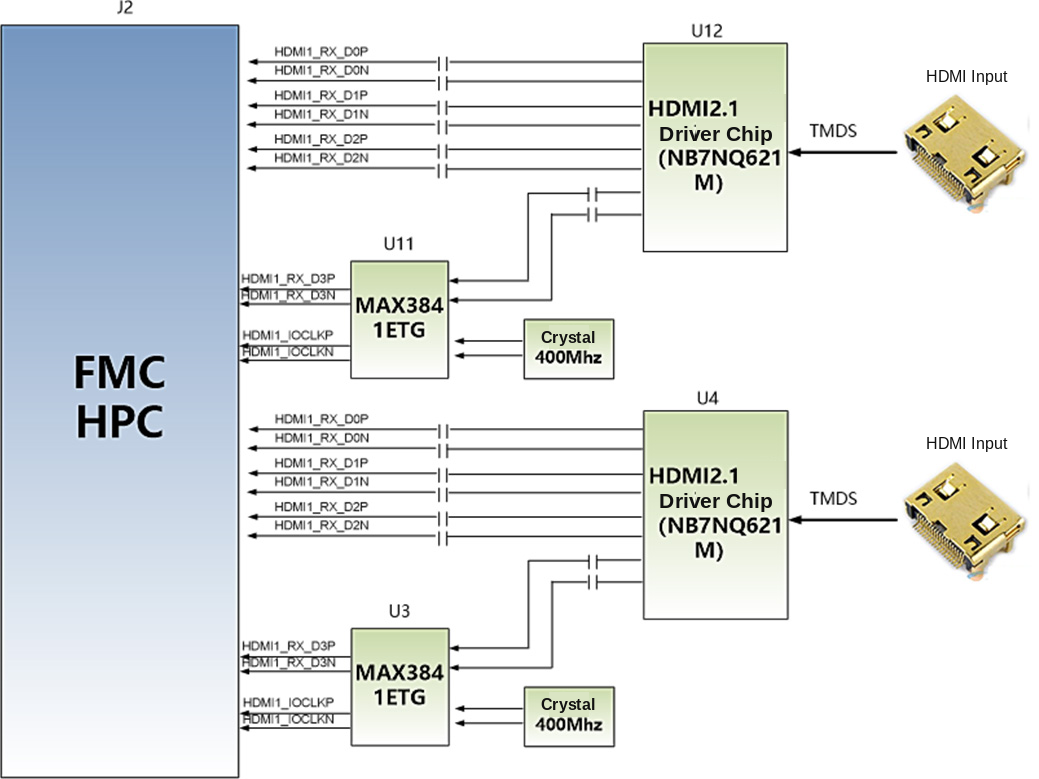

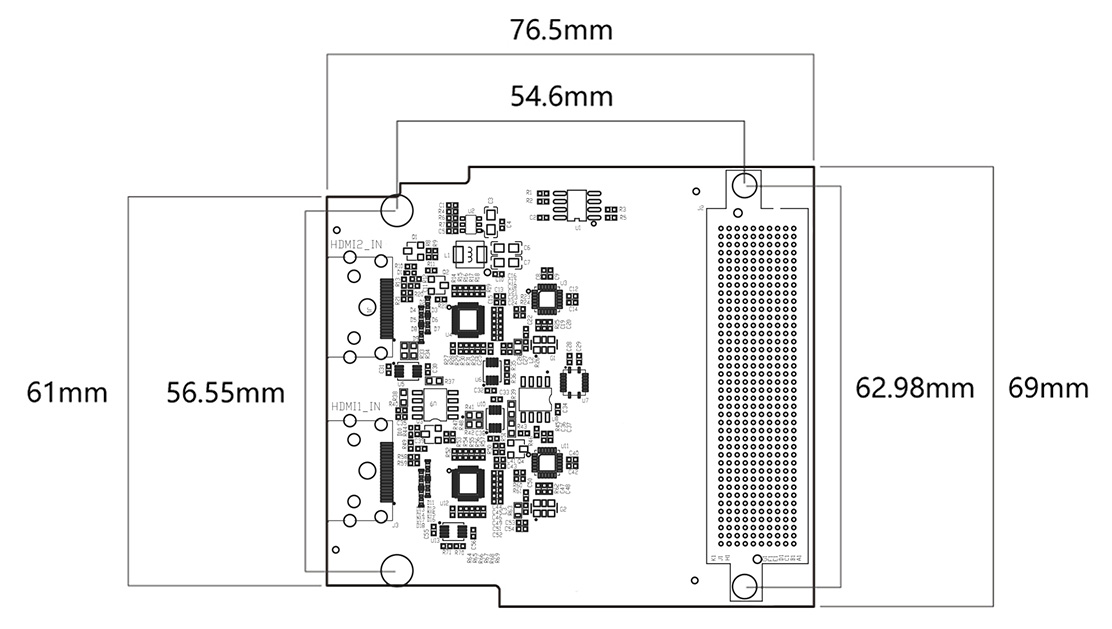

The functional block diagram shows two NB7NQ621M HDMI 2.1 driver chips, one per input, together with two MAX3841ETG devices and 400 MHz crystal oscillators. The board dimensions of 76.5 x 69 mm are taken from the dimension drawing; the source specification does not list power or weight.
Specifications
Item
Specification
Model
ADK-7622
Main chip
NB7NQ621M
Video inputs
2x HDMI 2.1
Maximum input resolution
8K@60Hz
Total bandwidth
48 Gbps

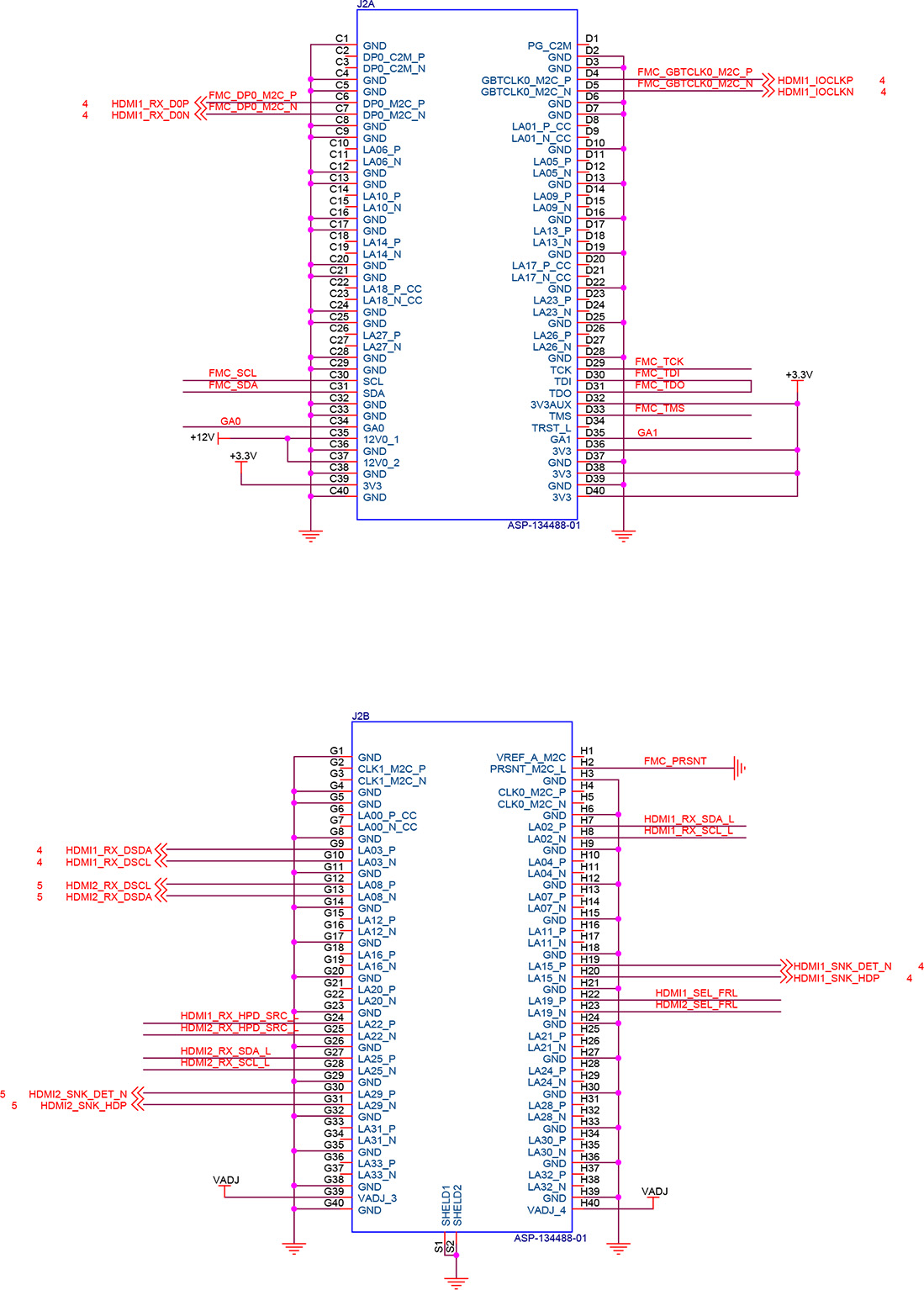

FMC connector
FMC HPC (ASP-134488-01)

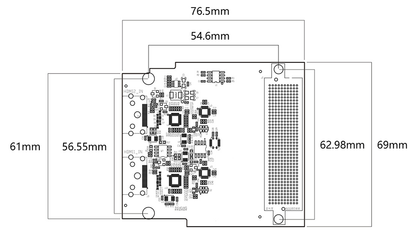

Board dimensions
76.5 x 69 mm (per dimension drawing)
Warranty
The main body of every product sold is covered by a 12-month warranty. FPGA chips and LCD screens are wear items and are not covered by the warranty. All accessories and gifts are not covered by the warranty.
