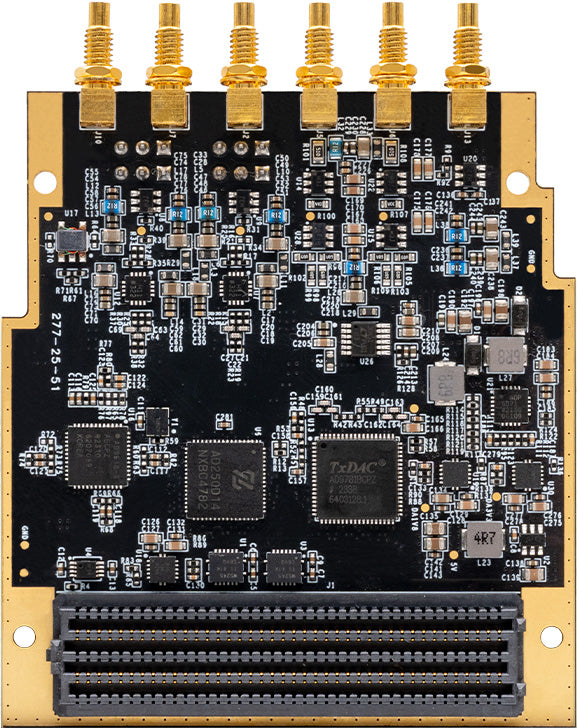

• ADK-1414 dual-channel 14-bit ADC/DAC FMC LPC module, front view

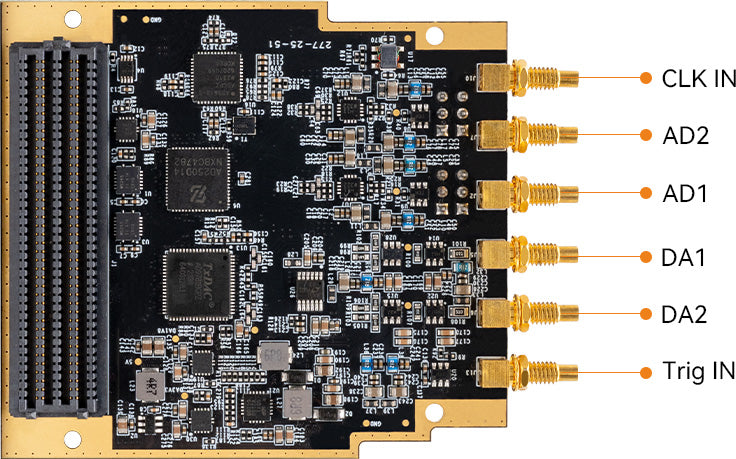

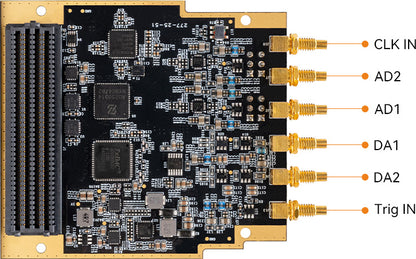

  • ADK-1414 FMC AD/DA module interface diagram: CLK IN, AD2, AD1, DA1, DA2, Trig IN

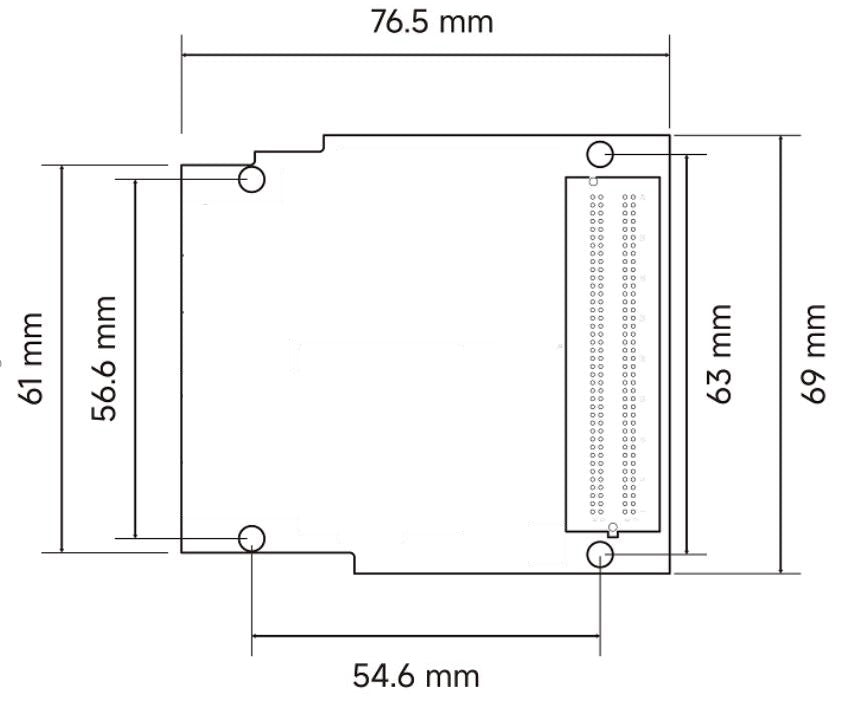

  • ADK-1414 FMC AD/DA module dimension drawing, 76.5 mm x 69 mm

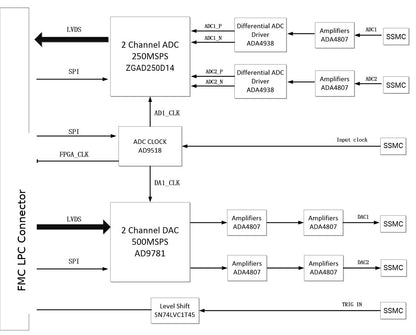

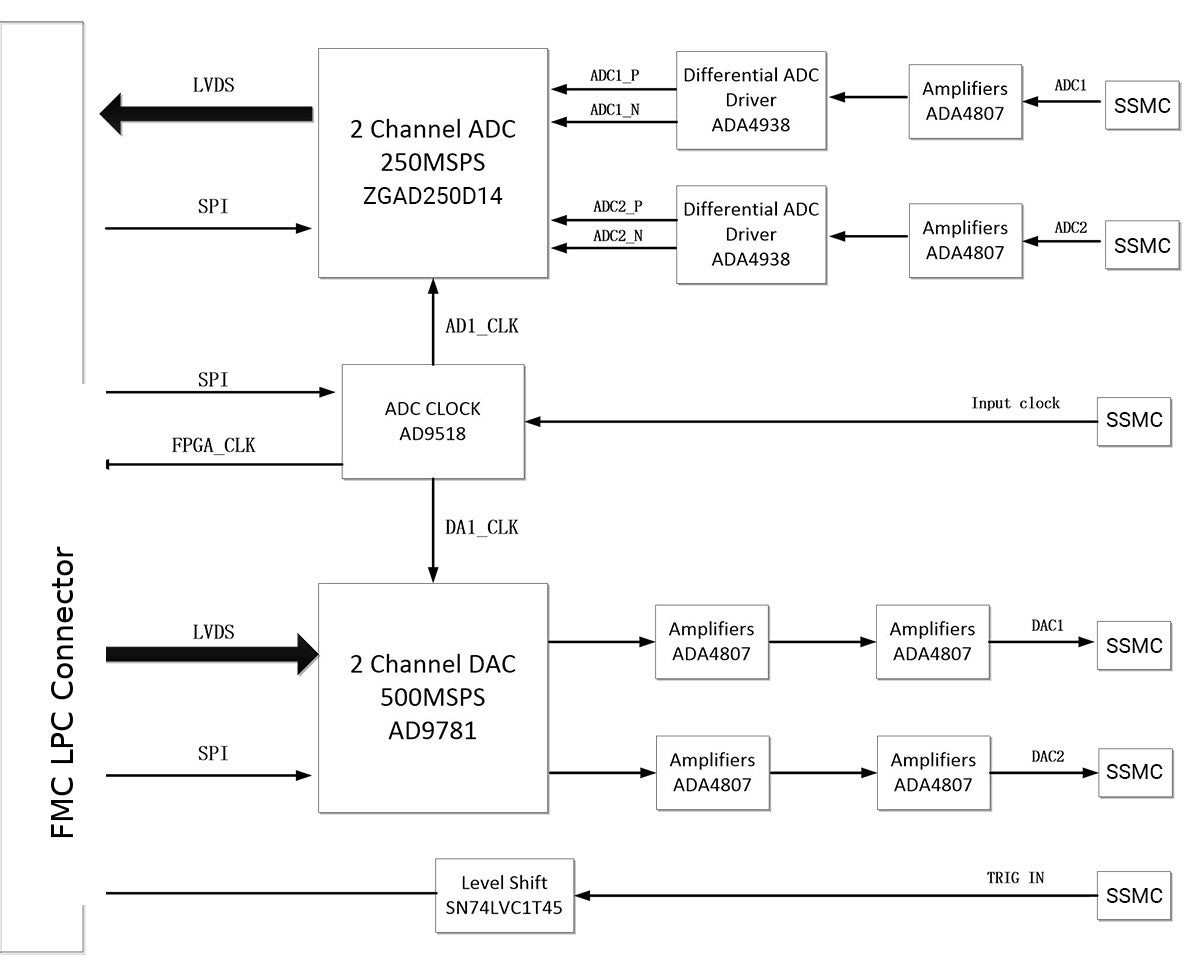

  • ADK-1414 FMC AD/DA module design block diagram
1 4

Dual-Channel 14-Bit ADC/DAC FMC LPC Module ADK-1414

Dual-Channel 14-Bit ADC/DAC FMC LPC Module ADK-1414

$1,803.00 USD
$1,803.00 USD
Sale Sold out
Shipping calculated at checkout.

The ADK-1414 is a dual-channel high-speed AD/DA FMC daughter card built on the FMC LPC standard. It integrates a dual-channel 250 MSPS, 14-bit ADC and a dual-channel 500 MSPS, 14-bit DAC, and is designed for high-speed signal acquisition and waveform playback in software-defined radio, radar, high-speed test and real-time signal processing applications.

Specifications

Item Specification
Model ADK-1414 (V1.0)
AD/DA converter chips ZGAD250D14 and AD9781
Channels 2x ADC, 2x DAC
ADC sample rate 250 MSPS
DAC update rate 500 MSPS
AD/DA resolution 14 bit
ADC input range Single-ended input, ±1V or ±5V (jumper selectable), 150 MHz bandwidth
DAC output range Single-ended output, ±5V (adjustable via potentiometer), 150 MHz bandwidth
Coupling DC coupled
Analog signal interface SSMC connectors
Data interface LVDS
Configuration interface SPI
External clock / trigger input 1 channel
Interface standard FMC LPC
Operating temperature -40 °C to +85 °C
Dimensions 69 mm x 76.5 mm

What’s in the box

  • FMC daughter card x 1
  • SSMC-to-BNC cables x 2
  • SSMC cables x 2
