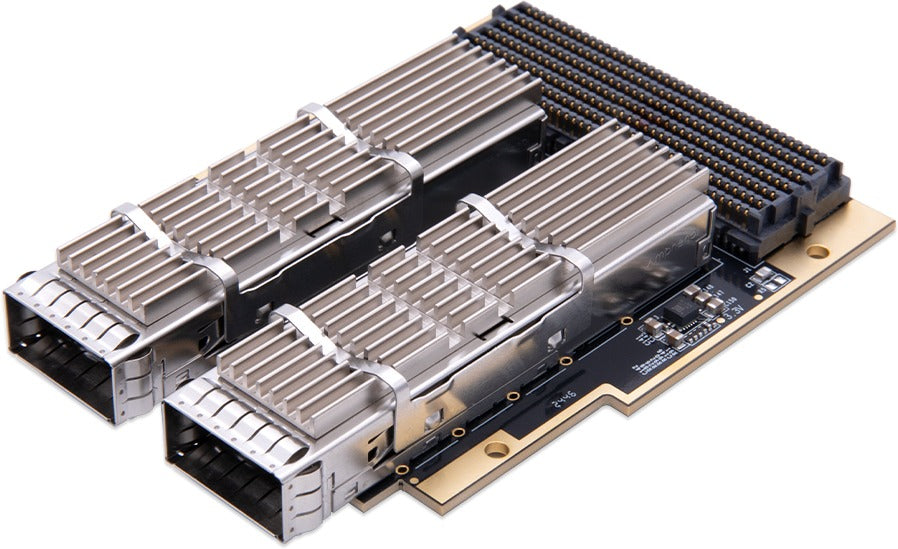

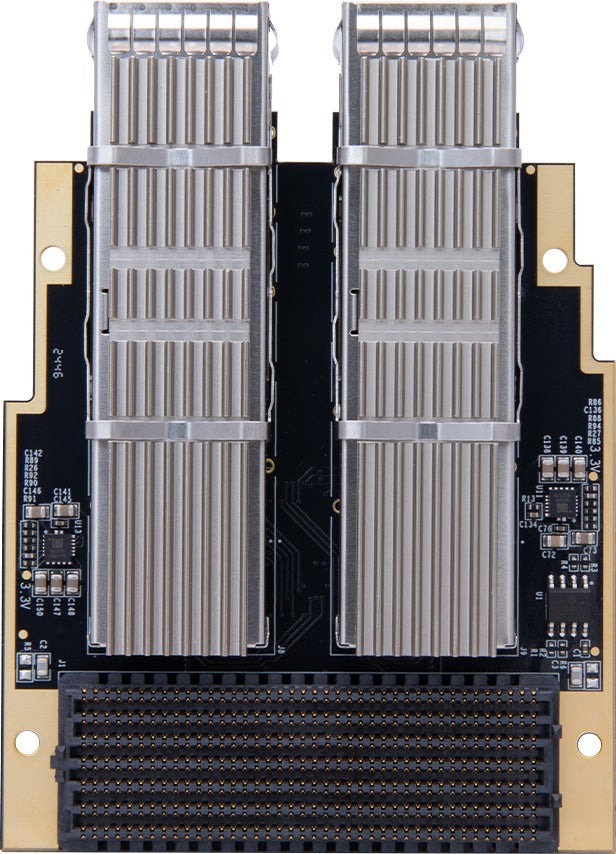

The ADK-2516 is a high-performance fiber-optic module with two 200G QSFP-DD interfaces. Each optical transceiver integrates 8 transmit lanes and 8 receive lanes, for high-density, high-speed pluggable fiber-optic communication. An industrial-grade FMC+ interface design keeps operation stable, and standardized control and compatibility let it integrate seamlessly into existing infrastructure - a solution for high-performance network and computing systems.
Specifications
Item
Specification
Model
ADK-2516
Interface type
2x 200G QSFP-DD optical fiber interfaces
Transfer rate
8 lanes, 28.21Gbps bandwidth
Interface type
FMC+ interface, compliant with the VITA 57.4 standard
Connector
ASP-134488-01

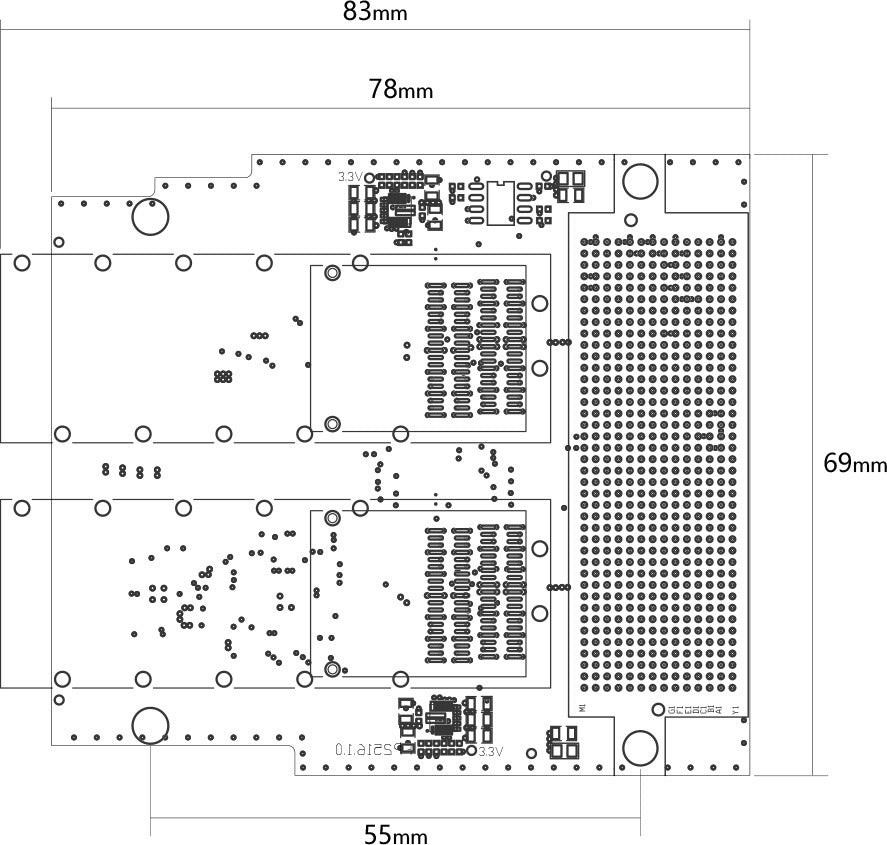

Board dimensions
78 x 69 mm
Warranty
The main body of every product sold is covered by a 12-month warranty. FPGA chips and LCD screens are wear items and are not covered by the warranty. All accessories and gifts are not covered by the warranty.
