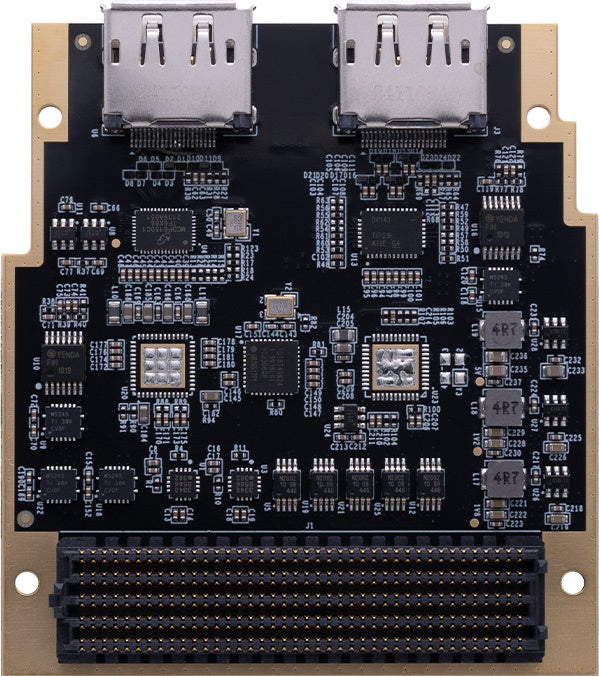

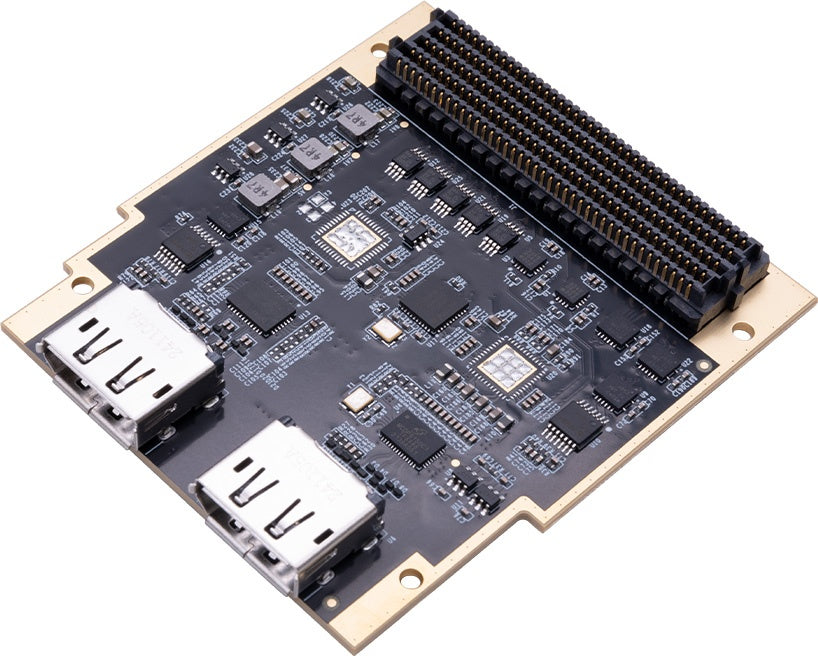

The ADK-6141 is a high-performance FMC daughter card that converts between an FMC-HPC interface and DisplayPort 1.4 input and output. It supports the DisplayPort 1.4 standard with 4 lanes at up to 8.1 Gbps per lane, for high-definition video transmission applications.
Specifications
Item
Specification
Model
ADK-6141
Interface
1 DisplayPort input (RX) and 1 DisplayPort output (TX)
Transfer rate
DisplayPort 1.4, 4-lane transmission, 1.62 Gbps to 8.1 Gbps
Host interface
FMC-HPC connector, bidirectional conversion between FMC-HPC and DisplayPort 1.4

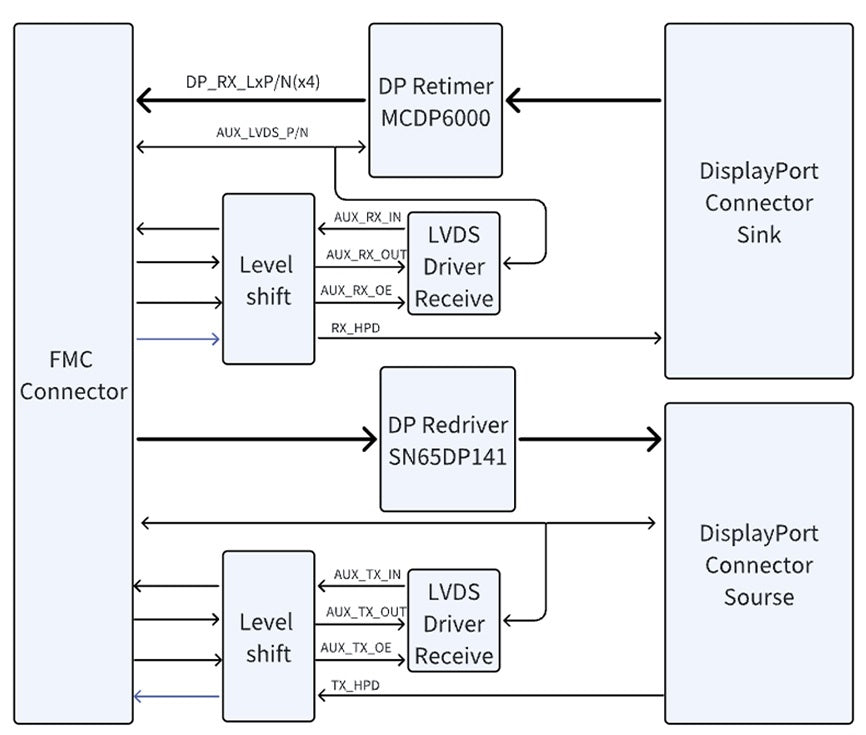

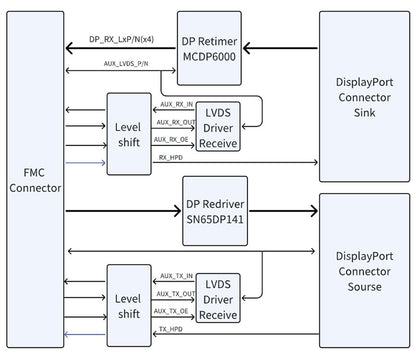

Receiver chip
MegaChips MCDP6000
Transmitter chip
Texas Instruments SN65DP141

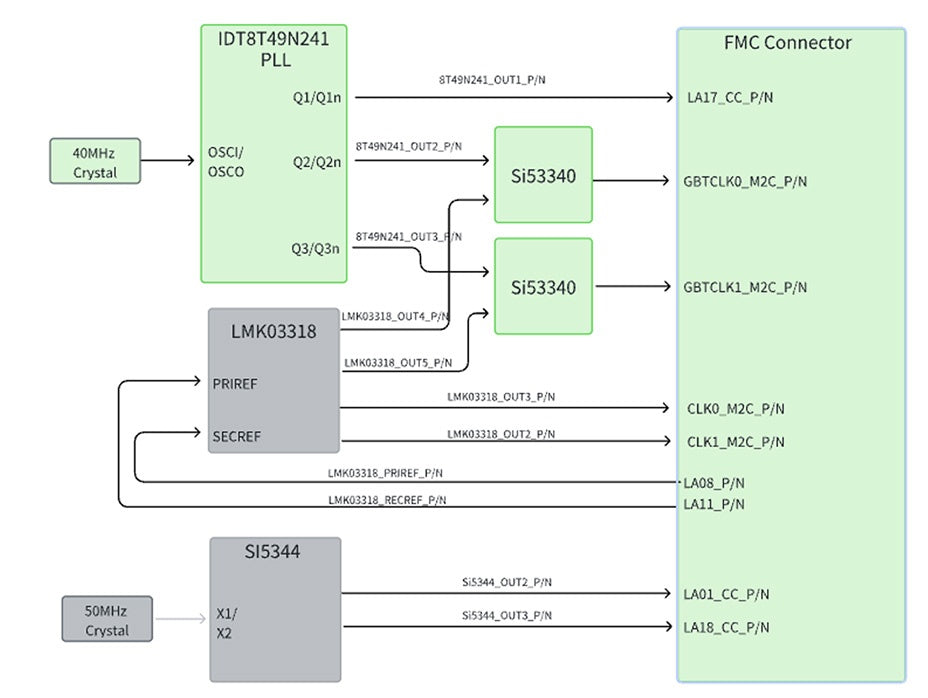

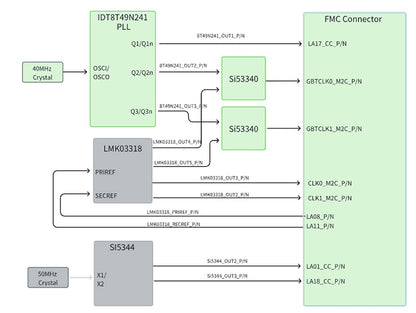

Reference clock
Reserved pads for an LMK03318 / Si5344 clock chip (not populated by default)

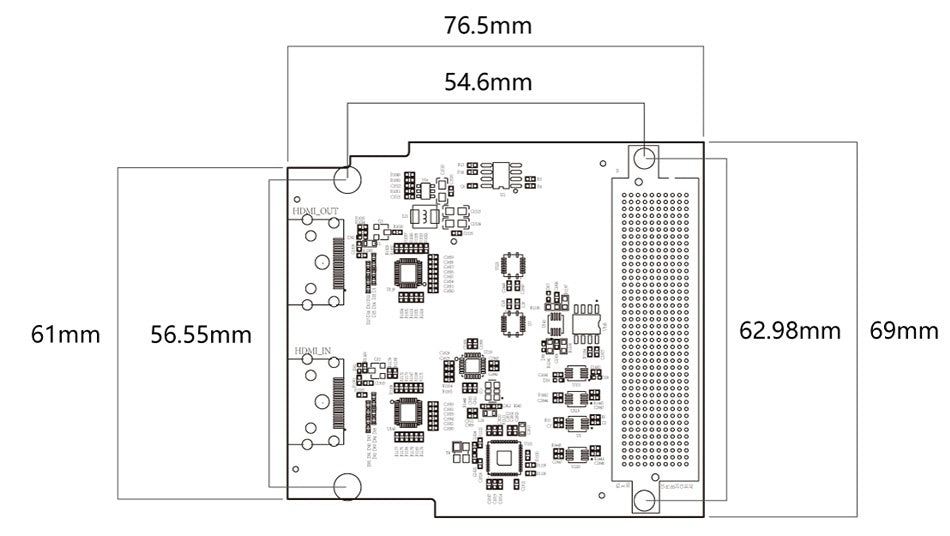

Board dimensions
78 x 69 mm
Warranty
The main product is covered by a 12-month warranty. FPGA chips and LCD screens are consumable parts and are not covered by the warranty. All accessories and gifts are not covered by the warranty.
