Data acquisition module with 5 relay outputs and 5 isolated digital inputs.
Specifications
5 isolated digital inputs
5 relay isolated outputs (relays 0.1 and 2 are Form C, relays 3 and 4 are Form A, per the faceplate)
Relay outputs support safe-time / safe-value settings and per-channel control
Series features
32-bit ARM processor with embedded real-time operating system
Single power supply: +10 V to +30 V DC
Isolation: 2500 V DC
Operating temperature: -20 °C to +85 °C
Firmware remote upgrade
Plastic housing, DIN-rail mounting

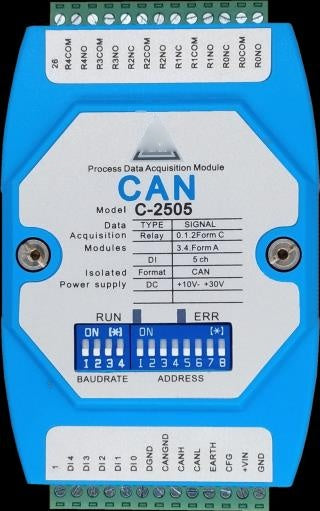

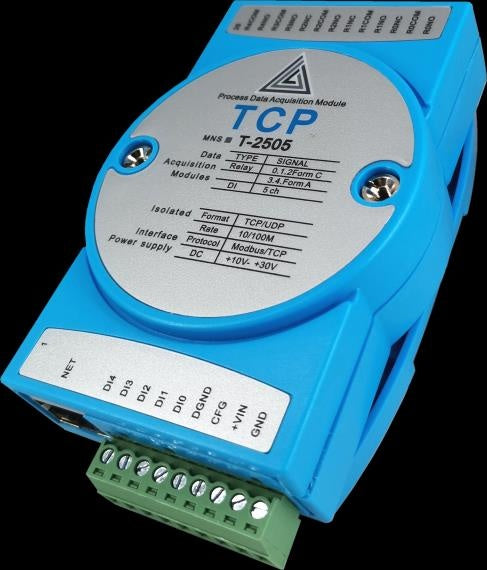

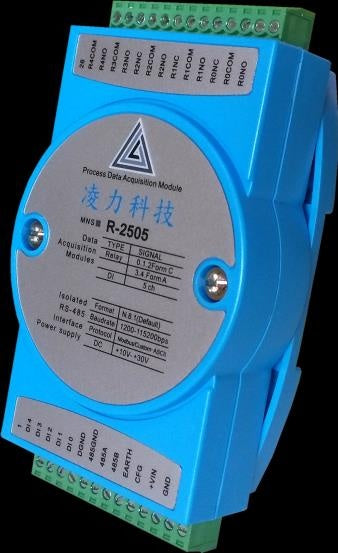

Four interface versions are available: RS-485 (Modbus RTU and custom ASCII), Ethernet (Modbus TCP), CAN bus, and 4G / NB-IoT. The 4G / NB-IoT version is listed in the manufacturer’s price list; its detailed protocol specifications are not included in the product manual.
