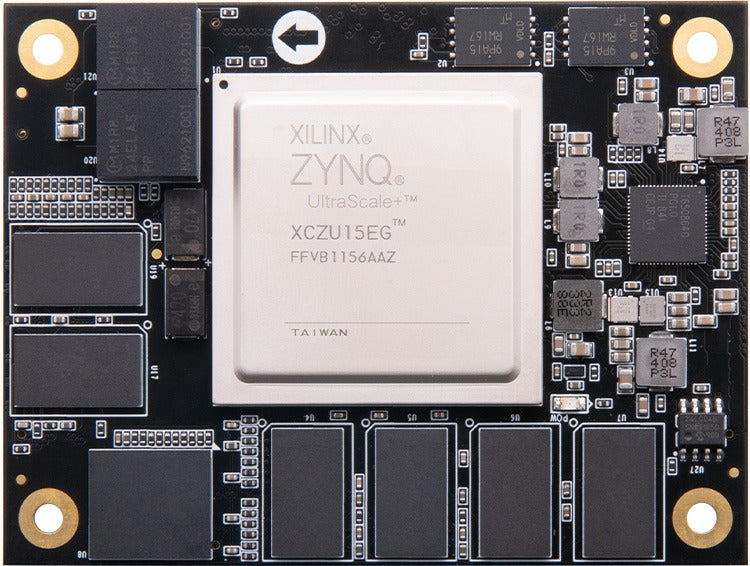

AMD Zynq UltraScale+ MPSoC XCZU15EG FPGA Core Board ADK-U15EG
AMD Zynq UltraScale+ MPSoC XCZU15EG FPGA Core Board ADK-U15EG

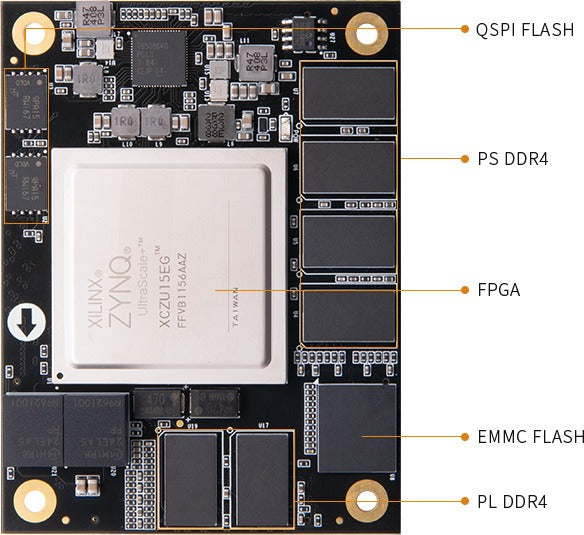

The ADK-U15EG is a high-end FPGA core board (system-on-module) built around the AMD Xilinx Zynq UltraScale+ MPSoC XCZU15EG, combining a quad-core Arm Cortex-A53 application processor, a dual-core Arm Cortex-R5 real-time processor and a Mali-400 MP2 GPU with 747K logic cells and 3,528 DSP slices. It carries 6GB of DDR4 memory (4GB on the processing system side and 2GB on the programmable logic side), 32GB eMMC Flash and 64MB QSPI Flash, and targets applications such as 5G wireless infrastructure, high-speed data exchange and storage, industrial control, AI, cloud computing, 4K video transmission and processing, and aerospace. The board also supports the Xilinx Vitis AI DPU.
The core board connects to a carrier board through its 4 x 120-pin board-to-board connectors, which also supply its 12V power input. This listing is for the core board (SoC module) alone; the matching development board is sold separately.
Specifications
| Item | Specification |
|---|---|
| Model | ADK-U15EG (hardware versions V2.0 / V3.0) |
| FPGA / SoC | XCZU15EG-2FFVB1156I |
| CPU | Quad-core Arm Cortex-A53, 1.333 GHz; dual-core Arm Cortex-R5, 533 MHz |
| GPU | Mali-400 MP2 |
| PS memory | 4GB DDR4, 64-bit, 2400 Mbps |
| PL memory | 2GB DDR4, 32-bit, 2400 Mbps |
| PS high-speed interfaces | PCIe Gen2 x4, 2x USB 3.0, SATA 3.1, DisplayPort, 4x tri-mode Gigabit Ethernet |
| PS peripheral interfaces | 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32-bit GPIO |
| PL transceivers | 16x GTH, 16.3 Gb/s |
| Chip grade | Industrial grade |
| Operating temperature | -40 °C to +85 °C |
| Speed grade | -2 |
| Logic cells | 747K |
| Flip-flops | 682K |
| Look-up tables | 341K |
| Global clocks | 4 |
| DSP slices | 3,528 |
| Max. distributed RAM | 11.3 Mb |
| Block RAM | 26.2 Mb |
| UltraRAM | 31.5 |
| eMMC Flash | 32GB |
| QSPI Flash | 64MB (2x 32MB) |
| HP I/O | 96 |
| HD I/O | 66 |

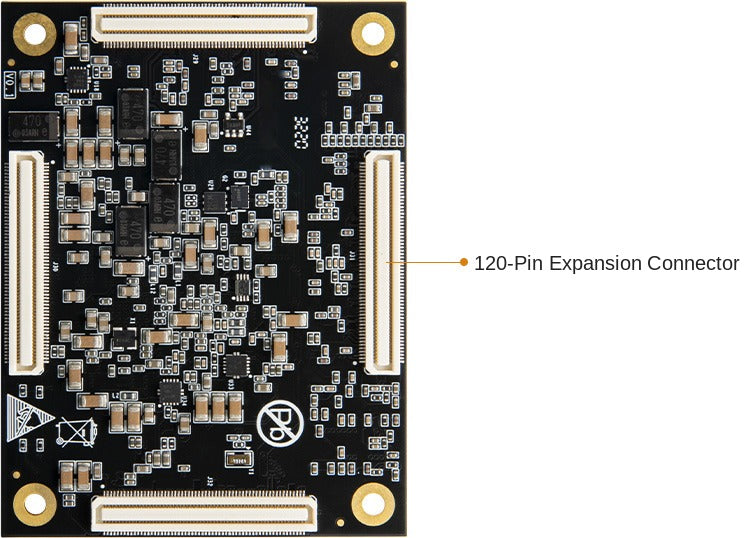

| Board-to-board connectors | 4x 120-pin, 0.5 mm pitch (Panasonic high-speed industrial connectors) |
| Crystals | 33.333 MHz single-ended (PS); 200 MHz differential (PL / DDR4 reference) |
| Power input | 12V via board-to-board connector |

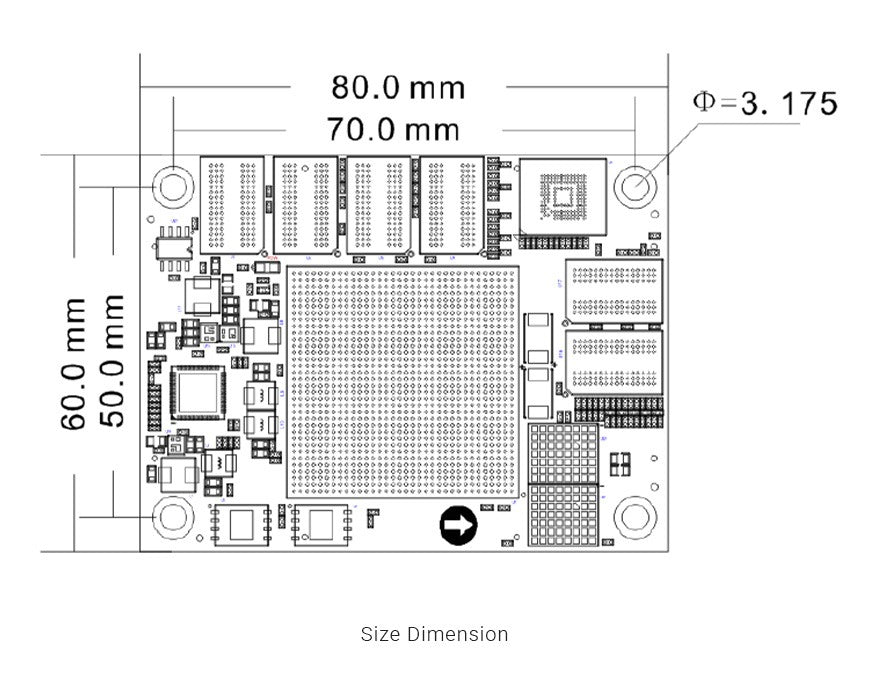

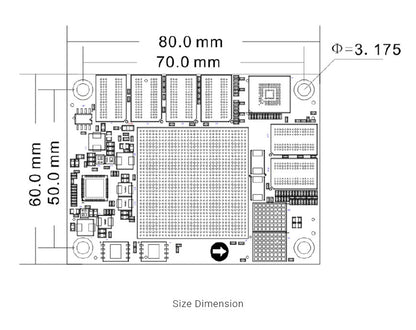

| Dimensions | 80 mm x 60 mm x 9.1 mm |
| Mating height | 3.0 mm |
| PCB | 16 layers, immersion gold finish, high-quality PCB material |
What’s in the box
- FPGA core board x 1
