AMD Zynq UltraScale+ MPSoC XCZU11EG FPGA Development Board ADK-11-P
AMD Zynq UltraScale+ MPSoC XCZU11EG FPGA Development Board ADK-11-P

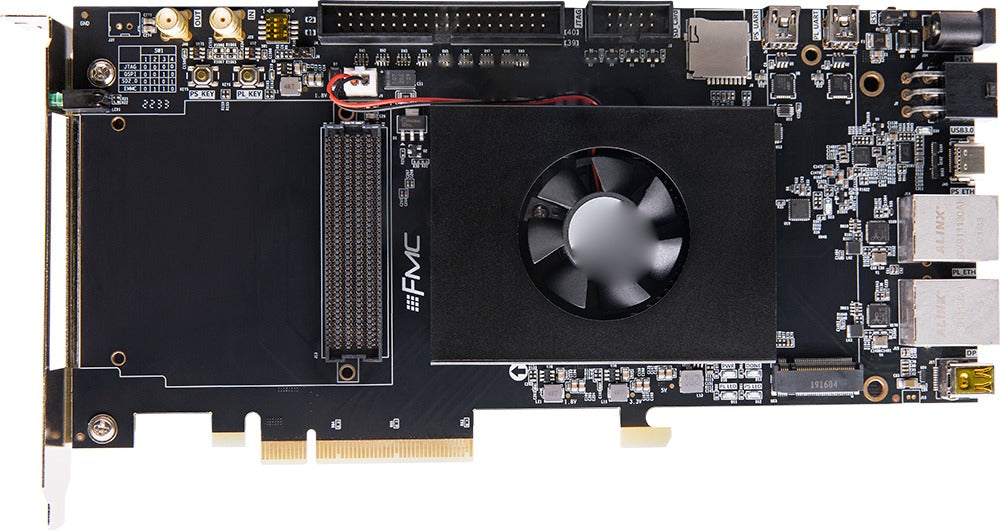

The ADK-11-P is a PCIe FPGA development board built around the AMD Xilinx Zynq UltraScale+ MPSoC XCZU11EG, pairing the ACU11EG core board with an expansion board. It supports the Xilinx Vitis-AI DPU, PCIe 3.0 x8 and 4K video image processing, and suits network communications, high-speed data exchange and storage, industrial control, deep learning and AI, cloud computing, 4K video transmission and processing, and aerospace applications.

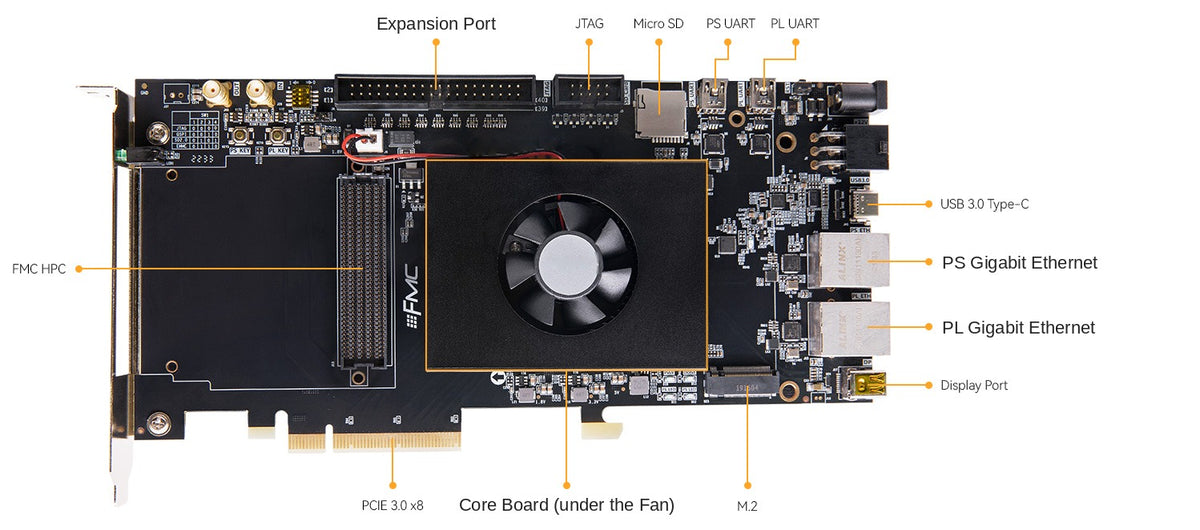

The detachable core board connects to the expansion board through high-speed industrial-grade board-to-board connectors, making secondary development and verification convenient and speeding up product launch. The expansion board provides a PCIe x8 interface, an FMC HPC expansion slot, a Mini DisplayPort output, an M.2 slot, two Gigabit Ethernet ports, a USB 3.0 Type-C port, two USB-UART interfaces, a 40-pin expansion header, a JTAG port and a Micro SD card slot.
Specifications
| Item | Specification |
|---|---|
| Core Board and FPGA | |
| Core board | ACU11EG |
| FPGA | XCZU11EG-2FFVC1156I |
| Chip grade | Industrial grade, operating temperature -40 °C to +85 °C |
| CPU | Quad-core Arm Cortex-A53 + dual-core Arm Cortex-R5F |
| GPU | Mali-400 MP2 |
| System logic cells | 653K |
| CLB flip-flops | 597K |
| CLB LUTs | 299K |
| Total Block RAM | 21.1 Mb |
| Clock management tiles | 8 |
| DSP slices | 2,928 |
| HP I/O | 134 |
| HD I/O | 46 |
| GTH transceivers | 16x 16.3 Gb/s |
| PL PCIe | PCIe Gen3 x8 |
| PS high-speed interfaces | PCIe Gen2 x4, 2x USB 3.0, SATA 3.1, DisplayPort, 4x tri-mode Gigabit Ethernet |
| PS general interfaces | 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32-bit GPIO |
| Memory and Storage | |
| PS DDR4 | 4GB, 64-bit, 2400 Mbps |
| PL DDR4 | 4GB, 64-bit, 2400 Mbps |
| eMMC Flash | 32GB |
| QSPI Flash | 64MB |
| EEPROM | 1x 24LC04 EEPROM with I2C interface |
| Temperature sensor | 1x LM75A temperature sensor |
| Expansion Board Interfaces | |
| PCIe interface | PCIe x8, PCI Express 3.0, up to 8 Gb/s per lane |
| M.2 interface | 1x M.2 slot (PCIe x1), for an M.2 SSD (sold separately) |
| Display output | 1x Mini DisplayPort output, 4K@30Hz or 1080P@60Hz |
| FMC expansion | 1x FMC HPC expansion slot, for FMC daughter cards such as HDMI input/output, binocular camera and high-speed AD modules |
| Ethernet | 2x Gigabit Ethernet interfaces (1x PS, 1x PL) |
| USB 3.0 | 1x USB 3.0 Type-C interface, supporting host, slave and OTG modes |
| USB-UART | 2x UART-to-USB interfaces (1x PS, 1x PL) |
| Expansion header | 1x 40-pin 2.54mm expansion header |
| JTAG | 1x 10-pin 2.54mm standard JTAG port, for FPGA program download and debugging |
| Micro SD | 1x Micro SD card slot, for operating system images and file systems |
| LEDs | Core board: 1x power LED; expansion board: 1x power LED, 1x DONE configuration LED, 4x user LEDs |
| Buttons | 1x reset button, 2x user buttons |
| Development environment | Vitis 2020.1; Linux: PetaLinux 5.4.0 (2020.1) |
| Power and Dimensions | |
| Input voltage | +12V |
| Power supply | 12V / 3A |
| Input current | 3A maximum |

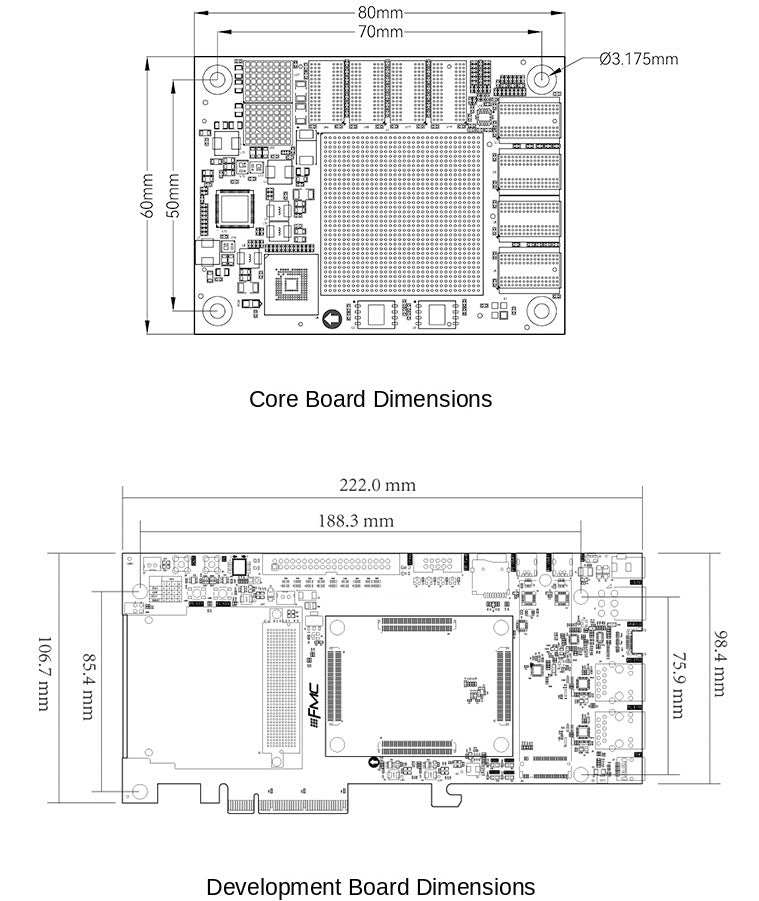

| Dimensions | 222 mm x 106.7 mm |
| PCB layers | Core board 16-layer PCB design; expansion board 8-layer PCB design, with dedicated power and GND layers |
What’s in the box
- FPGA development board x 1
- Cooling fan x 1
- Mini USB cable x 1
- USB downloader x 1 set
- 12V power supply x 1
- PCIe bracket x 1
- TF card x 1
- Card reader x 1
