AMD Zynq UltraScale+ RFSoC XCZU47DR FPGA Development Board ADK-47
AMD Zynq UltraScale+ RFSoC XCZU47DR FPGA Development Board ADK-47

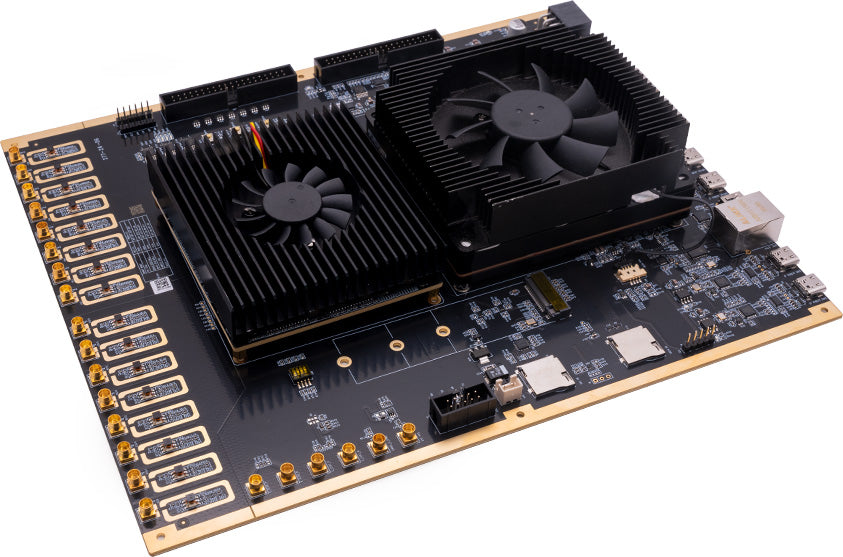

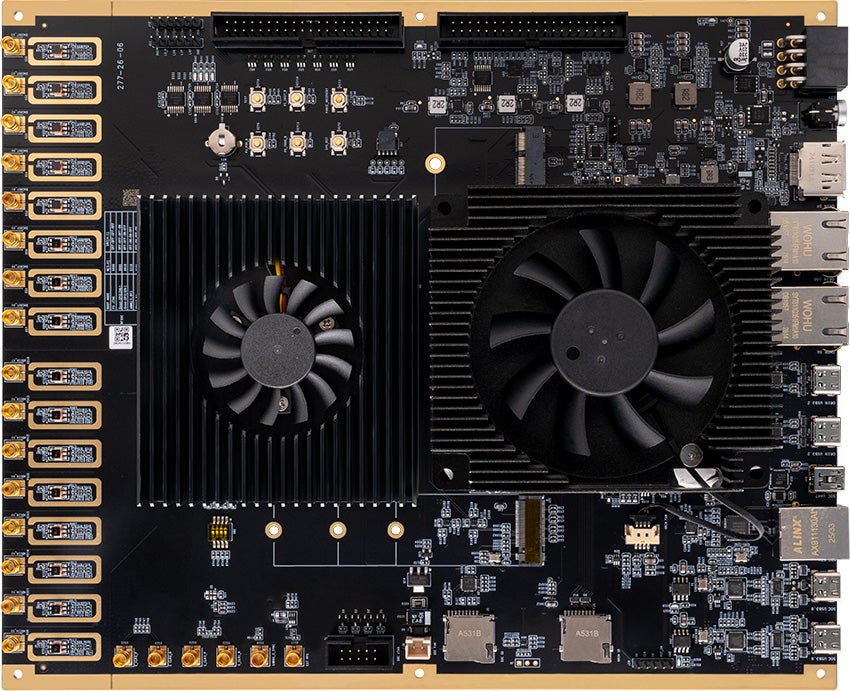

The ADK-47 is a heterogeneous FPGA + GPU AI computing and RF development platform built around the AMD Zynq UltraScale+ RFSoC XCZU47DR. Its ACW47 core board integrates direct RF sampling with 8 channels of 14-bit RF-ADC (up to 5 GSPS) and 8 channels of 14-bit RF-DAC (up to 9.85 GSPS), 930K logic cells and 4,272 DSP slices, alongside a quad-core Arm Cortex-A53 + dual-core Arm Cortex-R5F processor system, 6GB of DDR4 memory, 32GB of eMMC Flash and 256MB of QSPI Flash. The carrier board provides a socket and full interface set for an NVIDIA Jetson AGX Orin / Thor GPU module, interconnected over PCIe Gen3 x8 at up to 80 Gbps, for 241 to 2070 TOPS of AI compute depending on the module fitted. The platform simplifies the RF signal chain, maximises input/output channel density and suits high-bandwidth, low-power designs for 5G/6G communications, radar systems, satellite communications, autonomous driving, robotics and multimodal AI workloads.
Please note: the NVIDIA Jetson GPU module is optional and is not included. Supported modules are the Jetson T5000 (Thor, 2070 FP4 TFLOPS), the Jetson AGX Orin 64GB (275 TOPS) and the Jetson AGX Orin 32GB (241 TOPS).
Specifications
| Item | Specification |
|---|---|

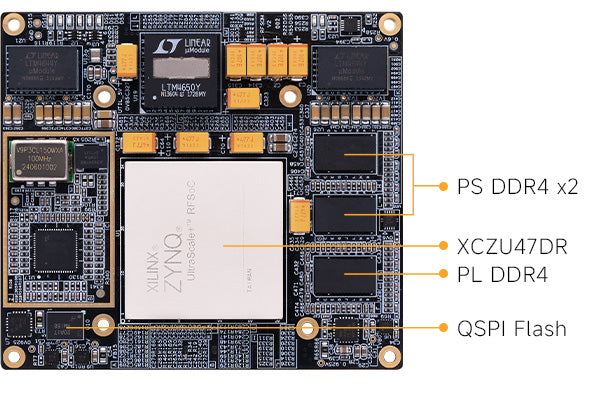

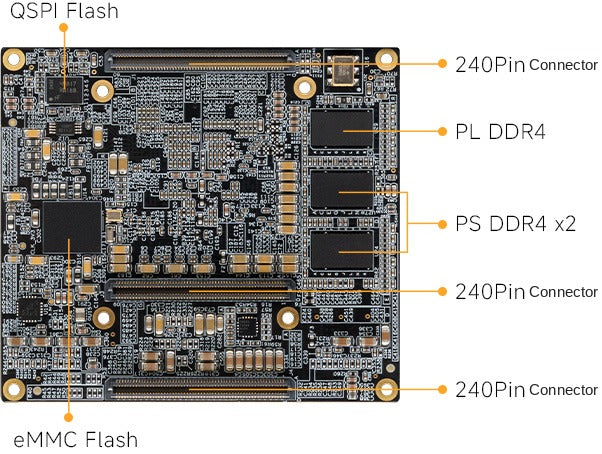

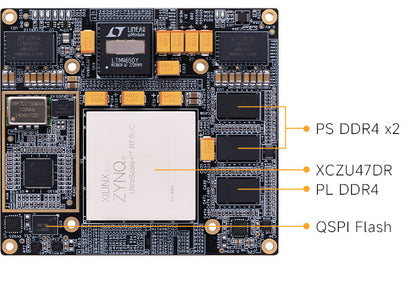

| Core Board (ACW47) | |
| FPGA | XCZU47DR-2FFVE1156E |
| Processor | Quad-core Arm Cortex-A53 + dual-core Arm Cortex-R5F |
| Operating temperature | Industrial grade, -40 °C to +85 °C |
| Memory | 6GB DDR4 (PS 4GB + PL 2GB) |
| QSPI Flash | 256MB |
| eMMC Flash | 32GB |
| Logic cells | 930K |
| LUTs | 425K |
| DSP slices | 4,272 |
| GTY transceivers | 8x 28.21 Gb/s |
| RF-ADC | 8x 14-bit, up to 5 GSPS |
| RF-DAC | 8x 14-bit, up to 9.85 GSPS |

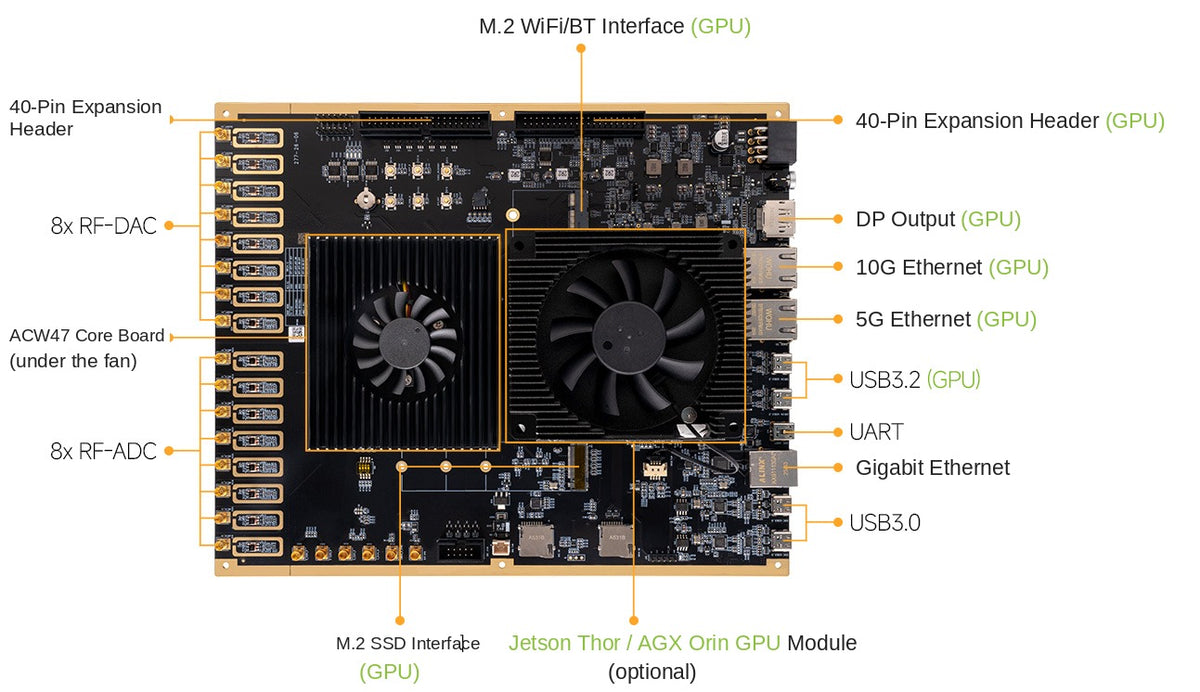

| RFSoC-Side Interfaces | |
| RF-ADC inputs | 8x 14-bit RF-ADC inputs, sampling rate up to 5 GSPS |
| RF-DAC outputs | 8x 14-bit RF-DAC outputs, sampling rate up to 9.85 GSPS |
| Ethernet | 1x Gigabit Ethernet interface |
| USB 3.0 | 2x USB 3.0 Type-C interfaces, Host and Slave modes |
| SD card slot | 1x Micro SD card slot, for storing the operating system image and file system |
| UART | 1x UART debug interface (Mini USB), for FPGA program debugging |
| JTAG | 1x 10-pin 2.54mm standard JTAG port, for system debugging and download |
| LEDs | 4x user LED indicators on the RFSoC side |
| Buttons | 4x buttons on the RFSoC side |
| Jetson Module-Side Interfaces (module optional, not included) | |
| 10G Ethernet | 1x 10G Ethernet interface, for the Orin AGX module |
| 5G Ethernet | 1x 5G Ethernet interface, for the Orin Thor module |
| DisplayPort | 1x standard DP interface, supporting 4K@30Hz or 1080P@60Hz |
| M.2 SSD | 1x M.2 Key M interface, for connecting an NVMe SSD |
| M.2 WiFi/BT | 1x M.2 Key E interface, for connecting a Wi-Fi / Bluetooth module |
| USB 3.2 | 2x USB 3.2 Type-C interfaces, Host, OTG and Slave modes |
| UART | 1x UART on a 2.54mm 3-pin connector, for Orin AGX program debugging |
| 40-pin expansion | 1x 40-pin connector, for expanding AGX Orin / Thor GPIO and peripheral interfaces |
| TF card slot | 1x MicroSD card slot (AGX version only) |
| Buttons | 2x buttons on the Orin AGX side (system reset and recovery) |
| LED | 1x user LED indicator on the Orin AGX / Thor side |
| Power and Dimensions | |
| Input power | +12V |

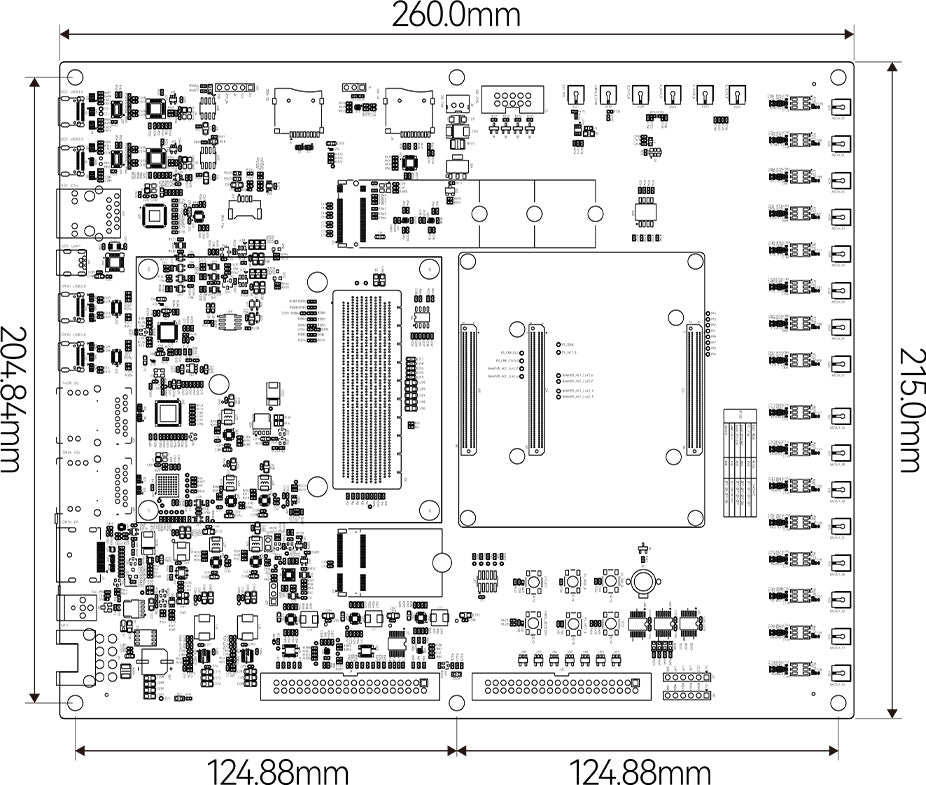

| Carrier board dimensions | 260 mm x 215 mm |

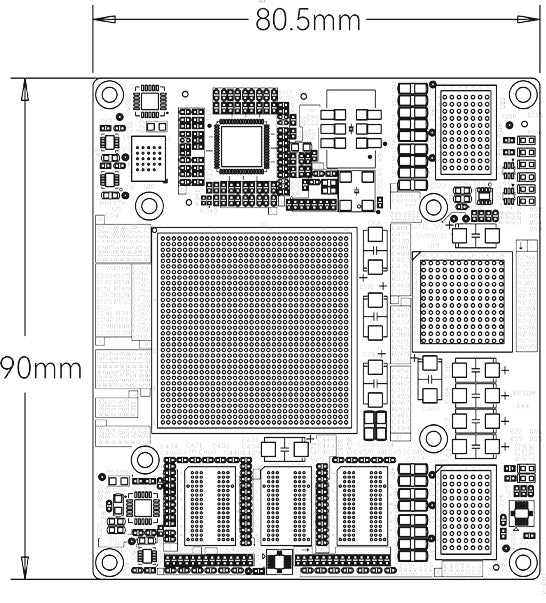

| Core board dimensions | 90 mm x 80.5 mm |
What’s in the box
- FPGA development board x 1
- Cooling fan x 1
- Type-C cable x 1
- SMA cable x 2
- SD card x 1
- Card reader x 1
- USB downloader x 1
- 12V power supply x 1
