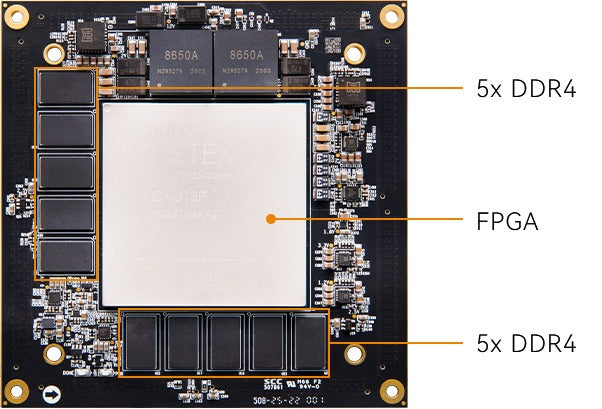

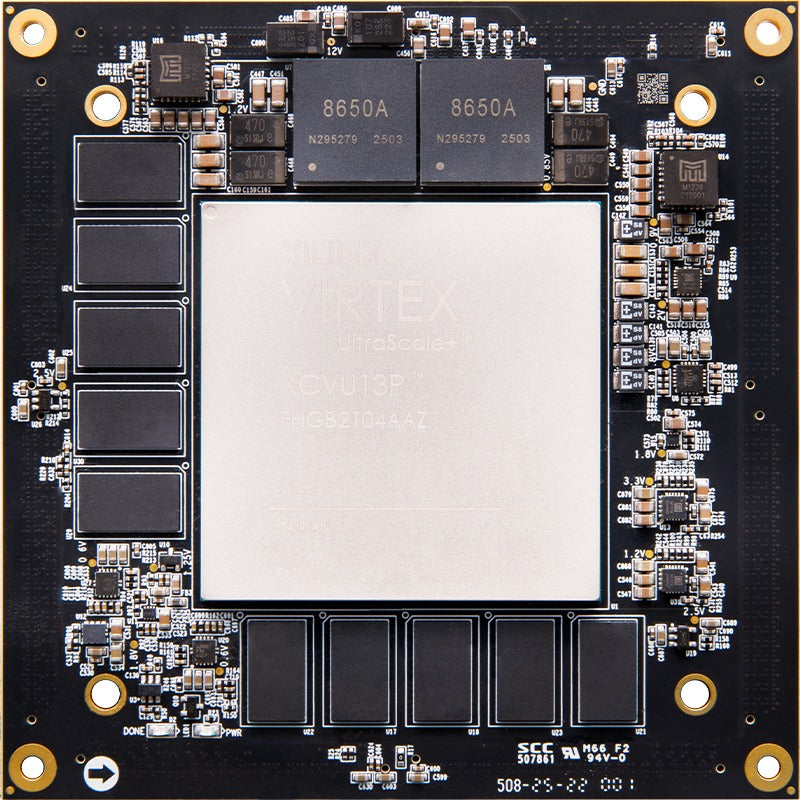

The ADK-VU13 is a high-performance FPGA core board built around the AMD Xilinx Virtex UltraScale+ flagship FPGA, the XCVU13P. It delivers powerful processing capability, a rich set of high-speed interfaces and large on-board storage, and is designed for professional applications such as high-speed data communication, algorithm acceleration and industrial control. Key figures: 3,780K logic cells, 12,288 DSP slices, 76 x 28.21 Gbps GTY transceivers, 20GB DDR4 memory and 256MB QSPI Flash.

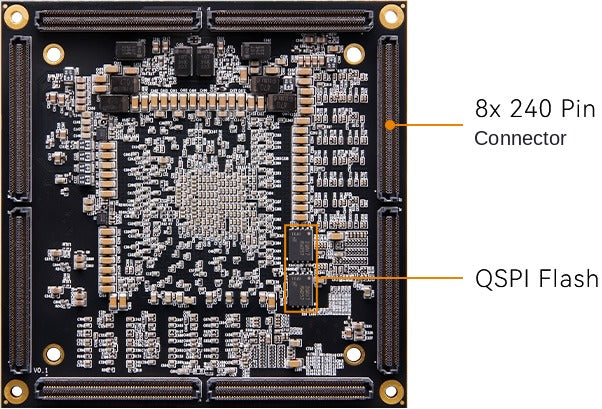

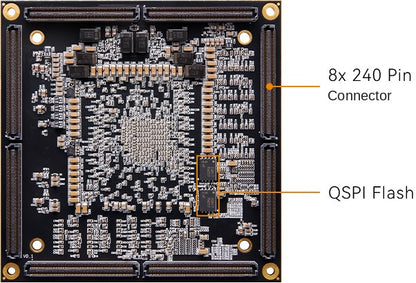

The core board connects to a carrier board through its 8 x 240-pin board-to-board connectors, which also supply its 12V power input. It is the compute core of the matching ADK-VU13G development board (sold separately); this listing is for the core board alone.
