AMD Versal Premium XCVP1502 FPGA Development Board ADK-VP1502P
AMD Versal Premium XCVP1502 FPGA Development Board ADK-VP1502P

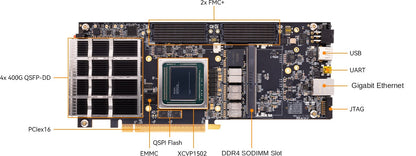

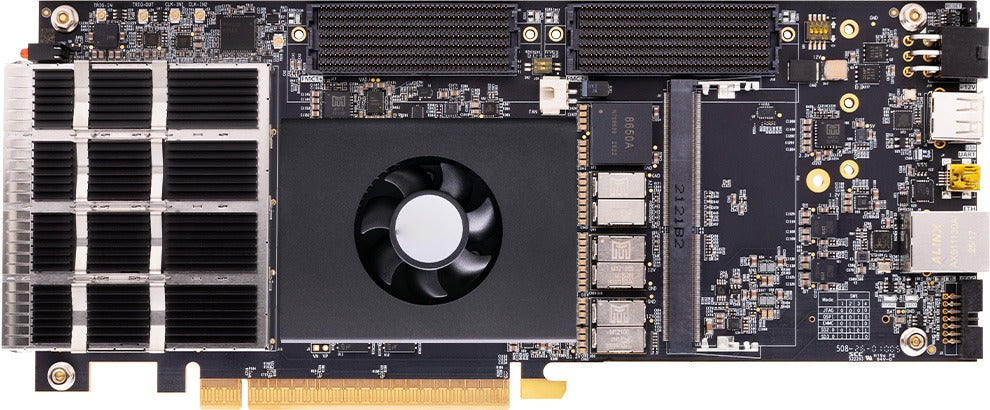

The ADK-VP1502P development kit is built around the AMD Versal Premium XCVP1502 adaptive SoC, integrating 3,763K logic cells, 58 Gb/s GTM transceivers and a rich set of hardened cores to deliver outstanding performance for demanding compute and networking applications. The kit provides up to 1.6 Tb/s of total bandwidth through four QSFP-DD optical interfaces, each supporting 400G, together with a PCIe Gen5.0 x8 or Gen4.0 x16 host interface, two FMC+ expansion slots, an M.2 SSD slot and 32GB of onboard eMMC storage, meeting the needs of high-speed data stream processing and flexible expansion. With diverse connectivity options, a complete development toolchain and reference designs, the kit supports rapid prototyping and product development for data centre acceleration, network infrastructure and high-end embedded systems.
Specifications

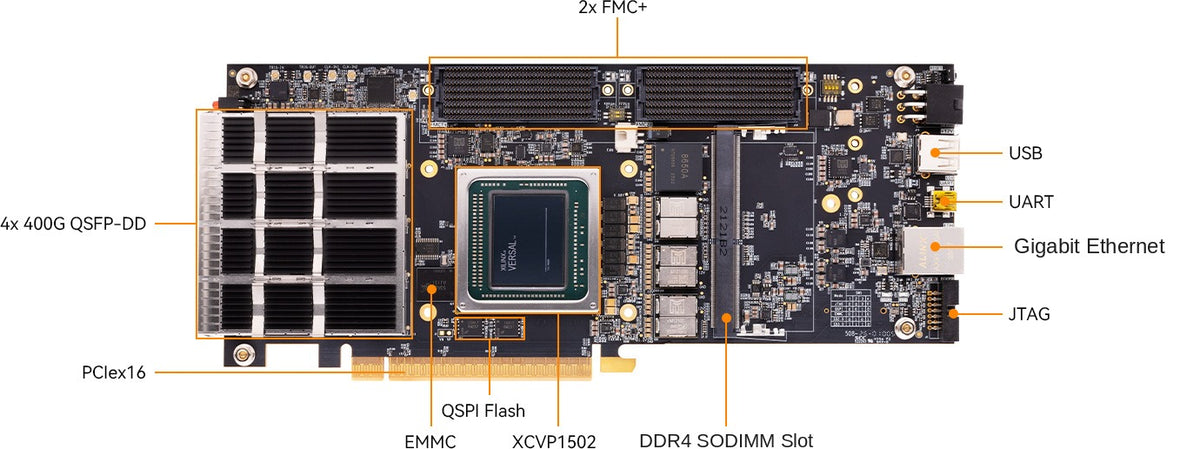

| Item | Specification |
|---|---|
| FPGA | |
| FPGA | XCVP1502-3HSEVSVA2785 |
| Application processing unit | Dual-core Arm Cortex-A72 |
| Real-time processing unit | Dual-core Arm Cortex-R5F |
| System logic cells | 3,763K |
| DSP engines | 7,440 |
| LUTs | 1,720,448 |
| GTYP transceivers | 28x 32.75 Gb/s |
| GTM transceivers | 56x 58 Gb/s |
| PCI Express (hardened) | 2x Gen5 x8 |
| 100G multi-rate Ethernet MACs | 4 |
| 600G Ethernet MACs | 3 |
| 600G Interlaken | 1 |
| 400G high-speed encryption engines | 2 |
| Interfaces and Storage | |
| Optical interfaces | 4x QSFP-DD, up to 56 Gb/s per lane, 400G per QSFP-DD |
| PCIe interface | PCIe x16 slot, supporting PCIe Gen4.0 x16 or Gen5.0 x8 |
| FMC+ connectors | 2 - FMC+ 1: LA, HA, HB and 24 pairs of GTM transceivers; FMC+ 2: LA, HA and 8 pairs of GTYP transceivers |
| Memory slots | 2x DDR4 SODIMM slots, supporting large-capacity memory expansion |
| Flash | 256MB QSPI Flash, for boot images and configuration data |
| Onboard storage | 32GB eMMC |
| M.2 interface | Supports PCIe Gen3.0 x4 SSD expansion |
| Ethernet | 1x PS-side Gigabit Ethernet interface |
| UART | 1x PS-side USB-UART interface |
| USB | 1x USB 2.0 host interface, for USB drives, keyboards, mice and other devices |
| JTAG | 1x JTAG interface |
| TF card slot | 1x TF card slot (SD 3.0 protocol) |
| IPEX interfaces | 5 - 2x clock inputs, 1x clock output, 1x signal trigger input, 1x signal trigger output |
| Power and Dimensions | |
| Input voltage | DC 12V (external +12V DC power supply) |

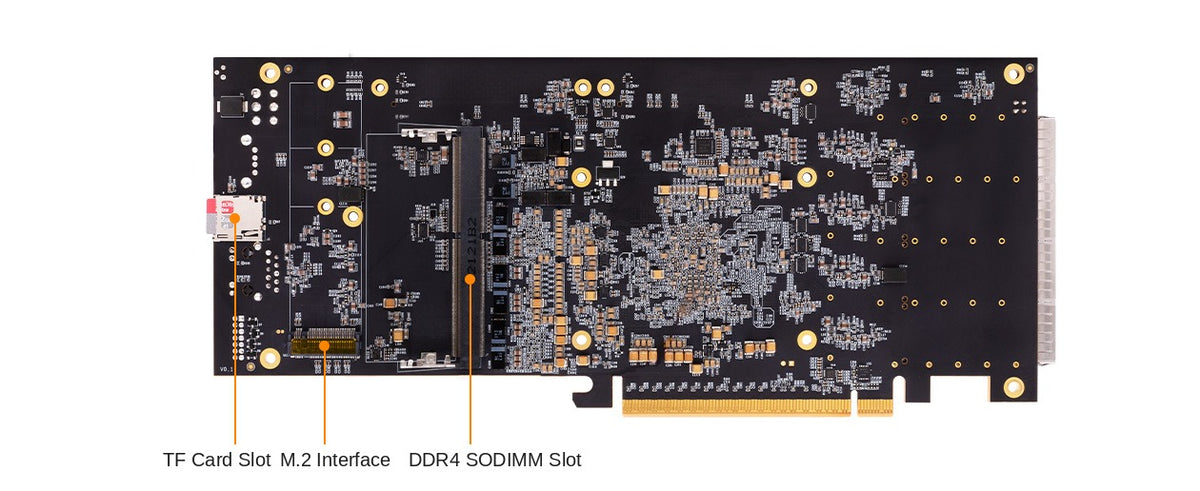

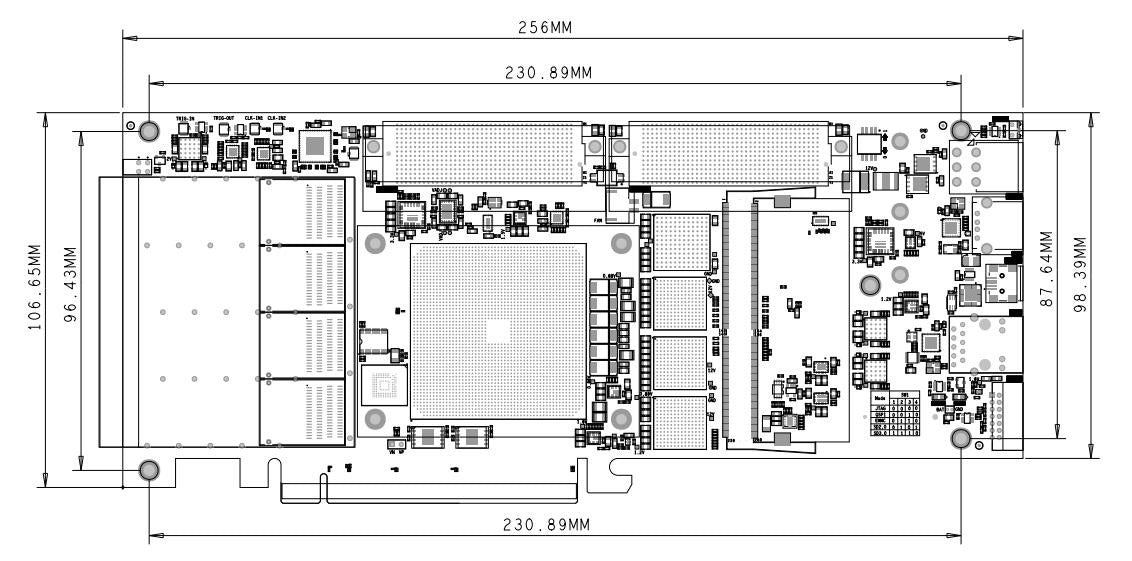

| Dimensions | 256 mm x 106.6 mm |
What’s in the box
- FPGA development board x 1
- Heatsink enclosure x 1
- 16GB DDR4 memory stick x 2
- 512GB SSD x 1
- SD card (with system) x 1
- PCIe bracket x 1
- 12V power supply and adapter x 1
- Downloader x 1
