AMD Kintex UltraScale+ XCKU15P FPGA Development Board ADK-KU15
AMD Kintex UltraScale+ XCKU15P FPGA Development Board ADK-KU15

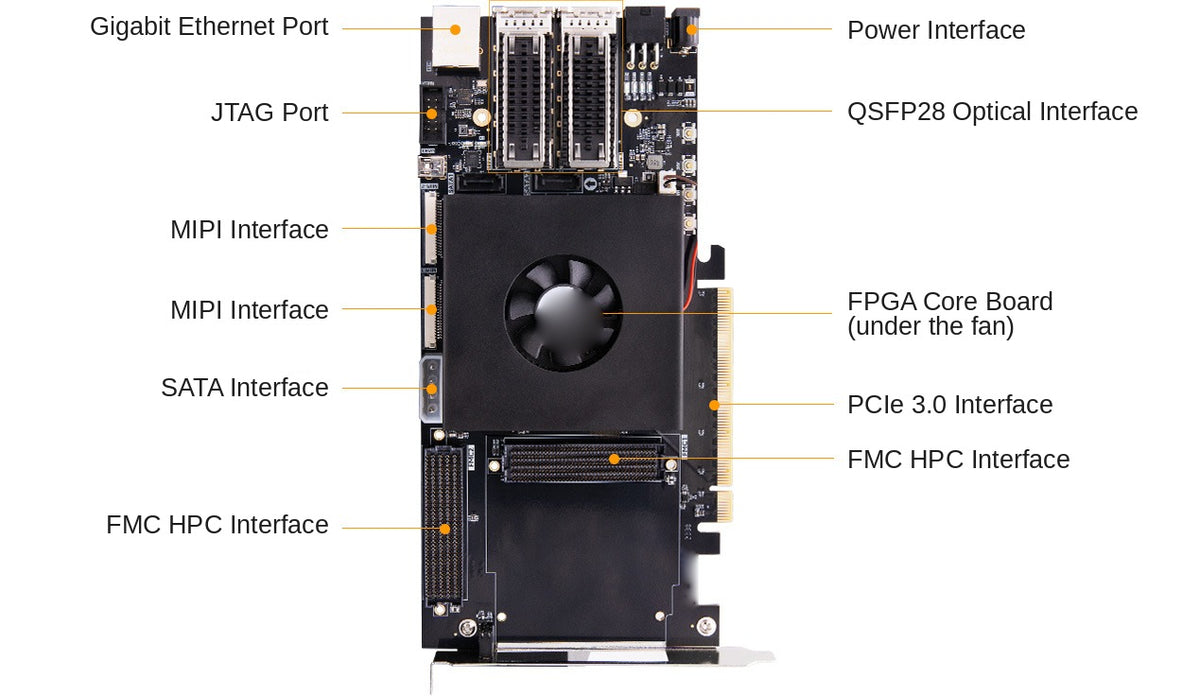

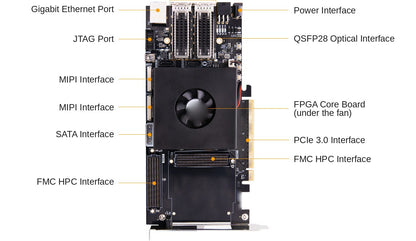

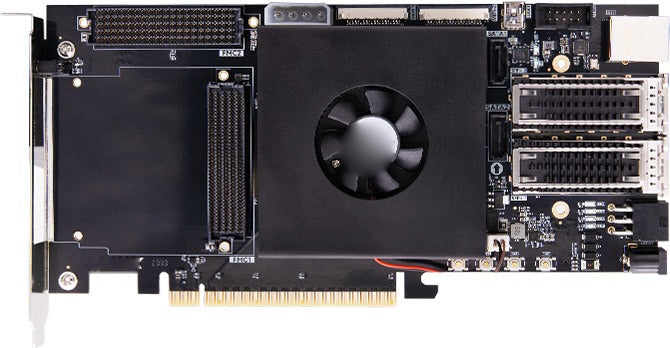

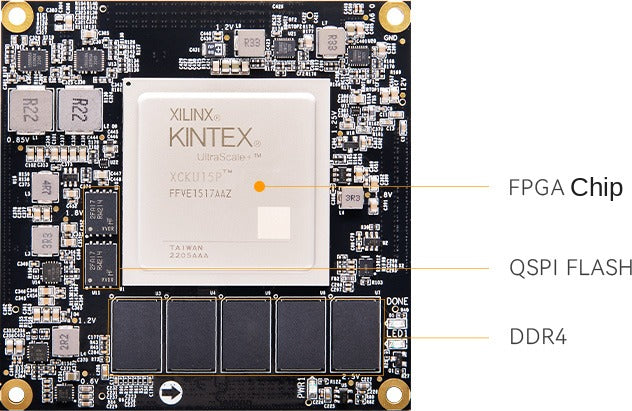

The ADK-KU15 is a high-end FPGA development board built around the AMD Xilinx Kintex UltraScale+ XCKU15P, pairing the ACKU15 core board with an expansion board. The expansion board integrates a PCIe 3.0 x16 interface, 100G optical fibre interfaces, FMC HPC expansion, MIPI Lane x4 camera inputs and Gigabit Ethernet, while the core board carries a 16 nm Kintex UltraScale+ device with 10GB of DDR4 memory and 128MB of QSPI Flash.
Eight high-speed transceivers connect to the FMC HPC interface’s dedicated high-speed pins, so FMC daughter cards such as HDMI input/output modules, high-speed AD modules, SDI input/output modules, optical fibre modules, binocular camera modules, Cameralink and GMSL camera modules can be attached for free expansion and high-speed transmission. The board suits network communications, data centre network and storage acceleration, medical imaging, industrial automation, video and image processing, the Internet of Things, semiconductor ATE and machine vision.
Specifications
| Item | Specification |
|---|---|
| FPGA and Core Board | |

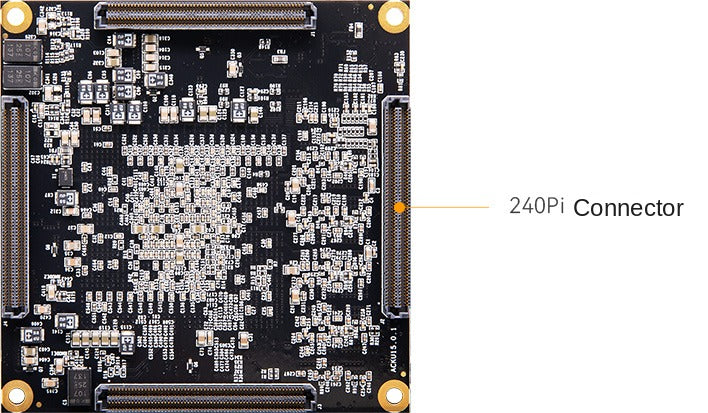

| Core board | ACKU15 |
| FPGA | XCKU15P-2FFVE1517I |
| Operating temperature | Industrial grade, -40 °C to +85 °C |
| System logic cells | 1,143K |
| CLB flip-flops | 1,045K |
| CLB LUTs | 523K |
| Max. distributed RAM | 9.8 Mb |
| Total Block RAM | 34.6 Mb |
| UltraRAM | 36 Mb |
| Clock management tiles | 11 |
| DSP slices | 1,968 |
| GTY transceivers | 24x 28 Gb/s |
| GTH transceivers | 32x 16 Gb/s |
| 150G Interlaken | 4 |
| 100G Ethernet | 4 |
| HD I/O | 88 |
| HP I/O | 236 |
| Memory and Storage | |
| DDR4 | 10GB (5x 2GB DDR4 chips, 80-bit), data rates up to 2666 Mbps |
| QSPI Flash | 128MB (2x 64MB chips), storing FPGA configuration files and other user data |
| EEPROM | 1x 24LC04 EEPROM with I2C interface |
| SD card slot | 1x Micro SD card slot, for operating system images and file systems |
| Oscillators | 2x 200 MHz differential oscillators, providing reference clocks for the DDR4 controller and FPGA logic |
| Interfaces | |
| PCIe interface | PCI Express 3.0 x16, up to 8 Gb/s per lane |
| Optical interfaces | 2x QSFP28 optical interfaces, 100 Gb/s per port |
| FMC expansion | 2x FMC HPC interfaces, for FMC daughter cards such as HDMI, AD, optical fibre, SDI and binocular camera modules |
| MIPI inputs | 2x MIPI Lane x4 inputs, up to 2.5 Gb/s, for the AN5020 MIPI camera module |
| Ethernet | 1x Gigabit Ethernet interface, 10/100/1000 Mbps, full duplex and auto-negotiation |
| USB-UART | 1x UART-to-USB interface, for communication with a PC and convenient debugging |
| JTAG | 1x 10-pin 2.54mm standard JTAG port, for FPGA system debugging and download |
| LEDs | 3 on the core board, 6 on the carrier board |
| Power and Dimensions | |
| Input voltage | +12V |
| Power supply | 12V / 3A |
| Input current protection | 3A maximum |

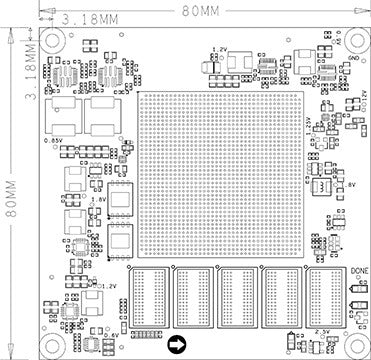

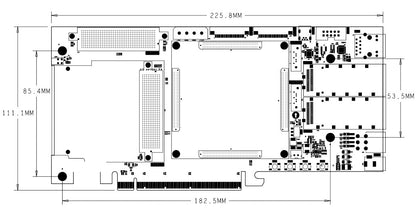

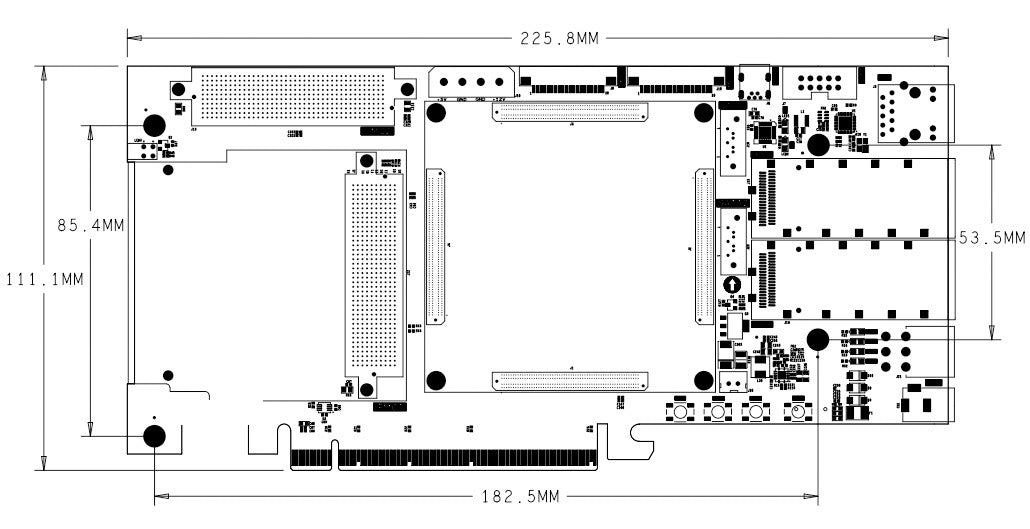

| Dimensions | 226 mm x 111 mm; core board 80 mm x 80 mm |
| PCB layers | Core board 18-layer PCB design; expansion board 14-layer PCB design, with dedicated power and GND layers |
What’s in the box
- Development board x 1
- Cooling fan x 1
- Mini USB cable x 1
- USB downloader x 1 set
- 12V power supply x 1
- PCIe bracket x 1
