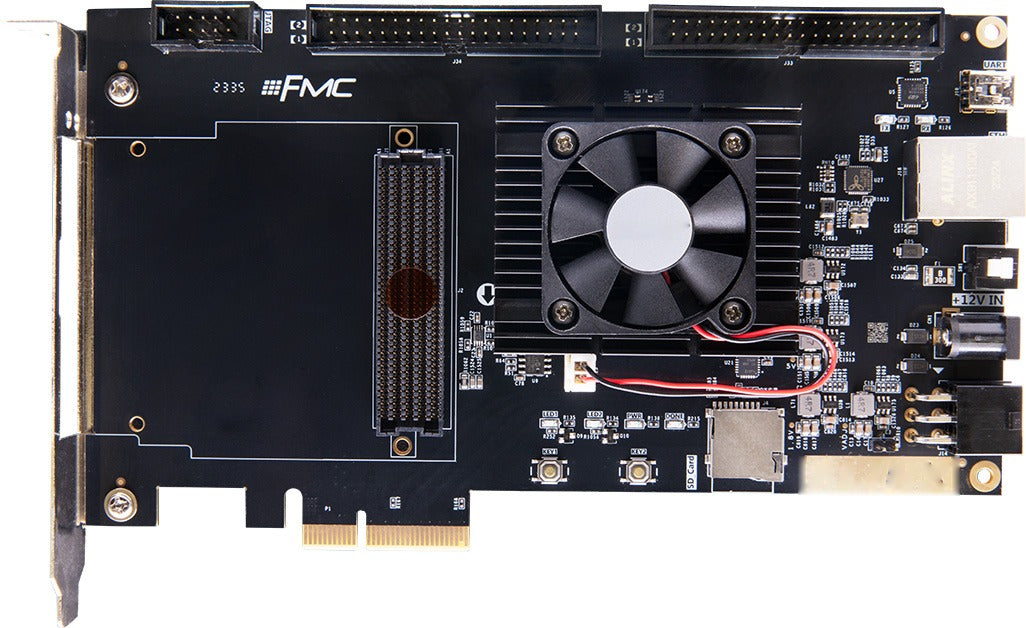

The ADK-AU15 is an FPGA development board built around the AMD Xilinx Artix UltraScale+ XCAU15P, pairing the ACAU15 core board with an expansion board. The expansion board integrates a PCIe 4.0 x4 interface, FMC HPC expansion, Gigabit Ethernet and more. The core board carries a 16 nm Artix UltraScale+ device that delivers an excellent performance-per-watt ratio, with transceivers up to 16.3 Gb/s for advanced protocols and strong DSP processing power, matching I/O bandwidth to compute for cost-sensitive, low-power applications - machine vision, secure networking, 4K broadcast, industrial IoT and edge markets.
Eight high-speed transceivers connect to the FMC HPC interface’s dedicated high-speed pins, so FMC daughter cards such as HDMI input/output modules, high-speed AD modules, SDI input/output modules, optical fibre modules, binocular camera modules, Cameralink and GMSL camera modules can be attached for free expansion and high-speed transmission, suiting development across many fields.
Specifications

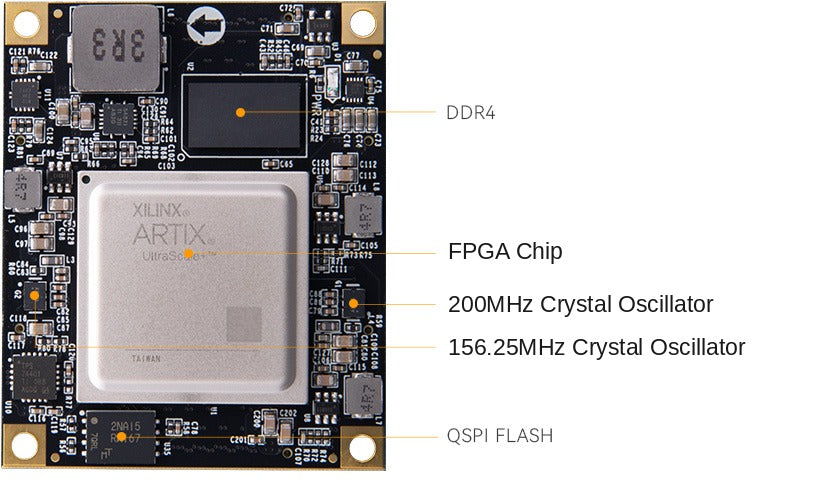

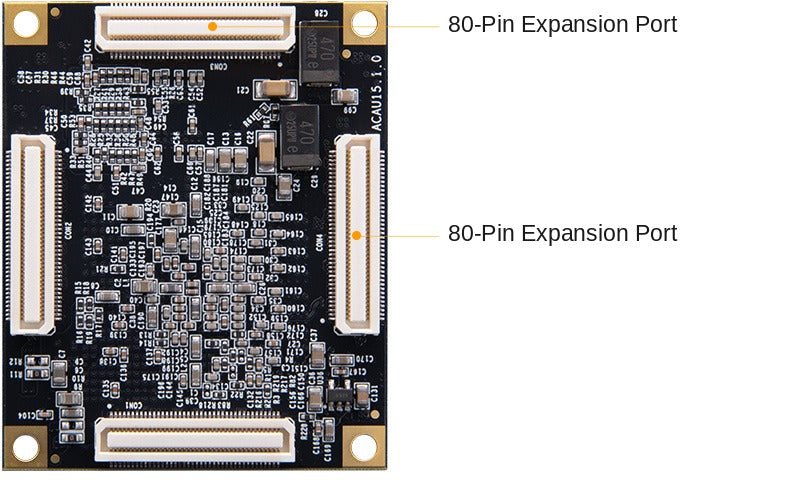

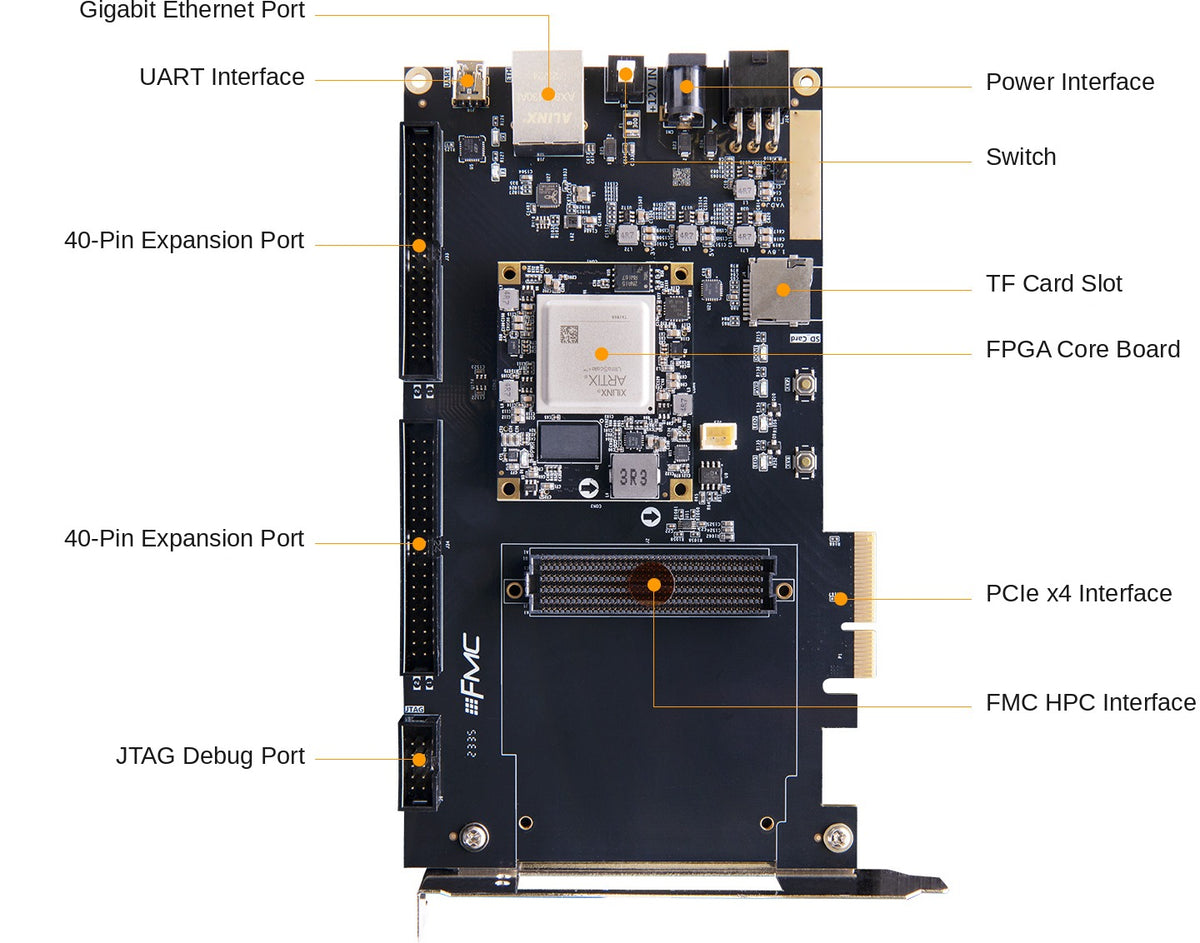

| Item | Specification |
|---|---|
| FPGA and Core Board | |
| Core board | ACAU15 |
| FPGA | XCAU15P-2FFVB676I |
| Operating temperature | Industrial grade, -40 °C to +85 °C |
| System logic cells | 170K |
| CLB flip-flops | 156K |
| CLB LUTs | 78K |
| Max. distributed RAM | 2.5 Mb |
| Total Block RAM | 5.1 Mb |
| Clock management tiles | 3 |
| DSP slices | 576 |
| GTH transceivers | 12x 16.3 Gb/s |
| PCI Express | PCIe 4.0 |
| HD I/O | 72 |
| HP I/O | 102 |
| Differential pairs | 48 |
| Memory and Storage | |
| DDR4 | 1GB (1x 1GB DDR4 chip, 16-bit), data rates up to 2400 Mbps |
| QSPI Flash | 32MB (1x 32MB chip), storing FPGA configuration files and other user data |
| SD card slot | 1x Micro SD card slot, for operating system images and file systems |
| EEPROM | 1x 24LC04 EEPROM with I2C interface |
| Oscillators | 1x 200 MHz differential oscillator, providing reference clocks for the DDR4 controller and FPGA logic; 1x 156.25 MHz differential oscillator, reference clock input for the GTH transceivers |
| Interfaces | |
| PCIe interface | PCI Express 4.0 x4 high-speed data interface |
| FMC expansion | 1x FMC HPC interface, for FMC daughter cards such as HDMI, AD, optical fibre, SDI and binocular camera modules |
| Ethernet | 1x Gigabit Ethernet interface, 10/100/1000 Mbps, full duplex and auto-negotiation |
| USB-UART | 1x UART-to-USB interface, for communication with a PC and convenient debugging |
| 40-pin expansion | 2x 40-pin 2.54mm-pitch expansion headers, for add-on modules such as cameras, LCD screens and high-speed AD modules |
| JTAG | 1x 10-pin 2.54mm standard JTAG port, for FPGA system debugging and download |
| LEDs | Core board: 1 power indicator; carrier board: 1 power indicator, 1 configuration LED, 2 USB-UART receive/transmit indicators and 2 user LEDs |
| Power and Dimensions | |
| Input voltage | +12V |
| Power supply | 12V / 3A |
| Input current protection | 3A maximum |

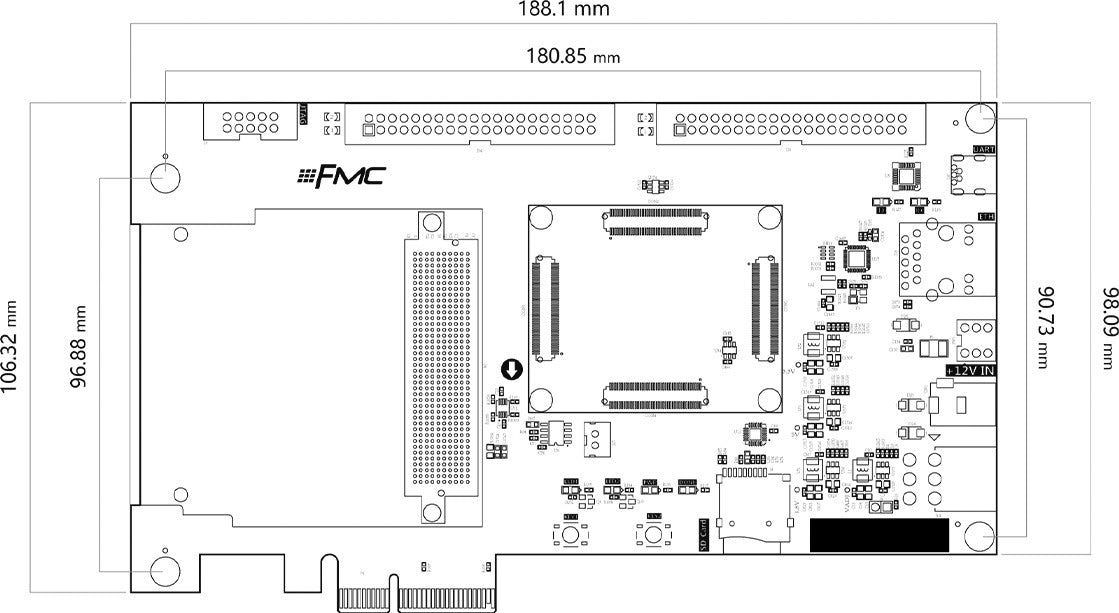

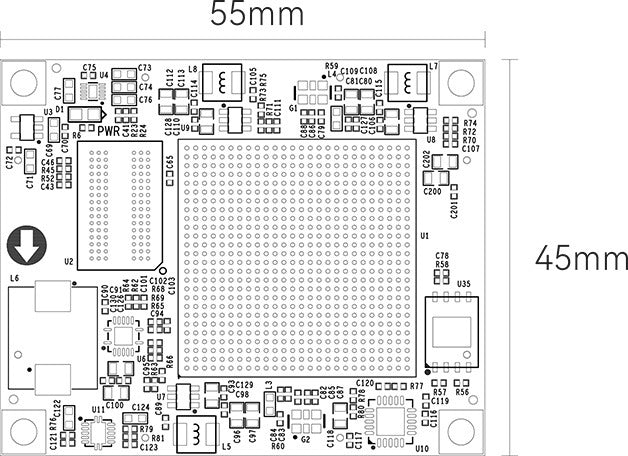

| Dimensions | 188 mm x 106 mm |
| PCB layers | Core board 14-layer PCB design; expansion board 10-layer PCB design, with dedicated power and GND layers |
What’s in the box
- Development board x 1
- Cooling fan x 1
- USB downloader x 1 set
- 12V power supply x 1
- PCIe bracket x 1
- Mini USB cable x 1
