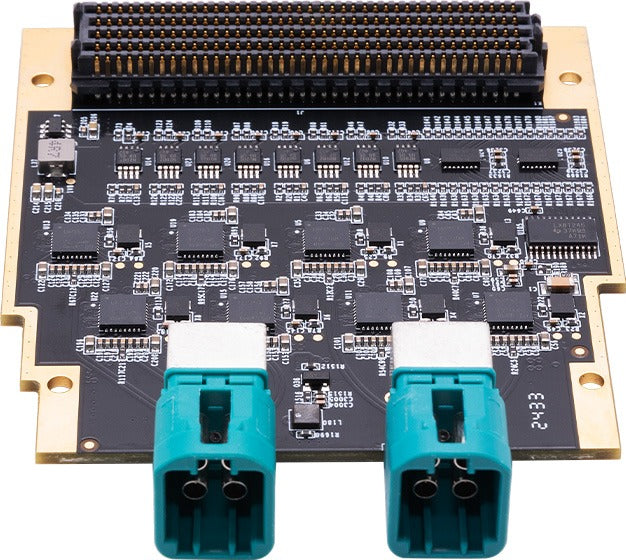

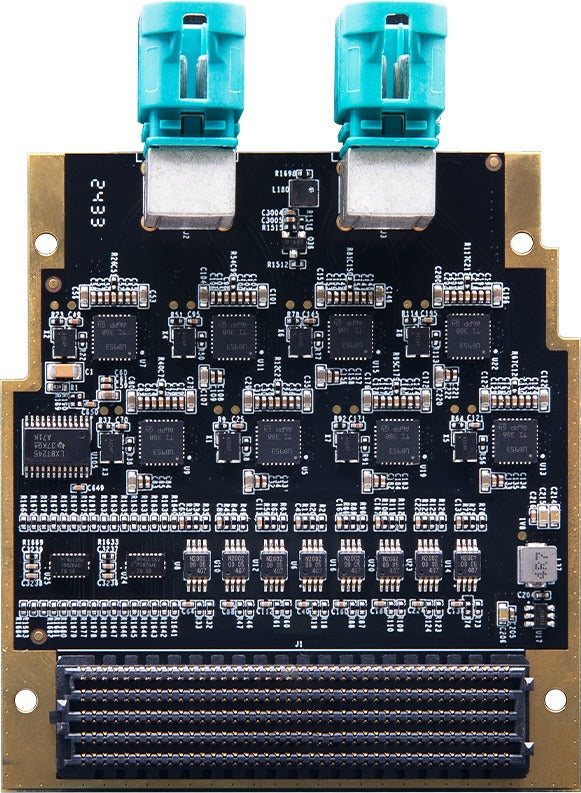

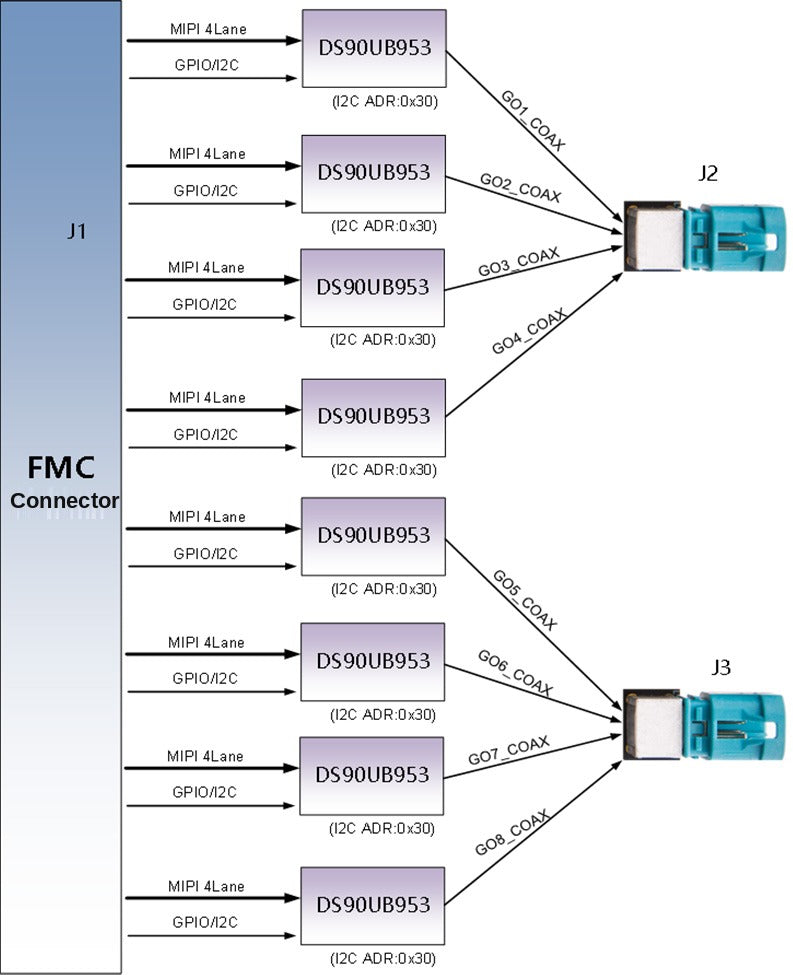

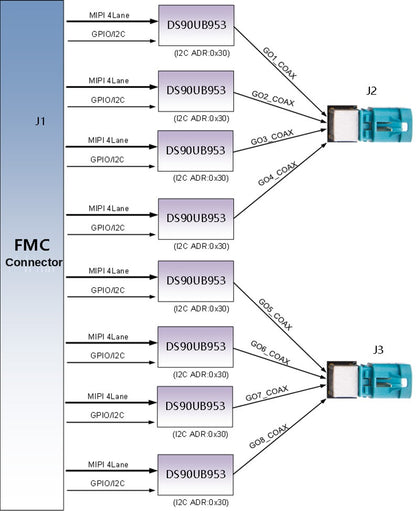

The ADK-9530 is an 8-channel FPD-Link III automotive video injection module in FMC HPC daughter-card form. It uses eight Texas Instruments DS90UB953-Q1 serializer chips to serialize 8 channels of video output, with automotive-grade 4-in-1 FAKRA coaxial connectors as the video interface. The module plugs into the FMC HPC connector of an FPGA host board.
Specifications
Item
Specification
Model
ADK-9530
Serializer chips
8x Texas Instruments DS90UB953-Q1 (FPD-Link III)
Serial interface
2MP MIPI CSI-2 FPD-Link III
Connectors
Automotive-grade Z-Code Mini FAKRA 4-in-1 coaxial connectors
Video output
8-channel video output; 2MP at 60 fps or 4MP at 30 fps
Cable length
Up to 15 m in FPD-Link III mode
Input image formats
RAW10/12, YUV422 10-bit (configurable via I2C)
Host interface
FMC HPC connector

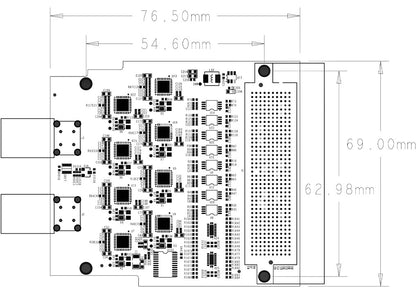

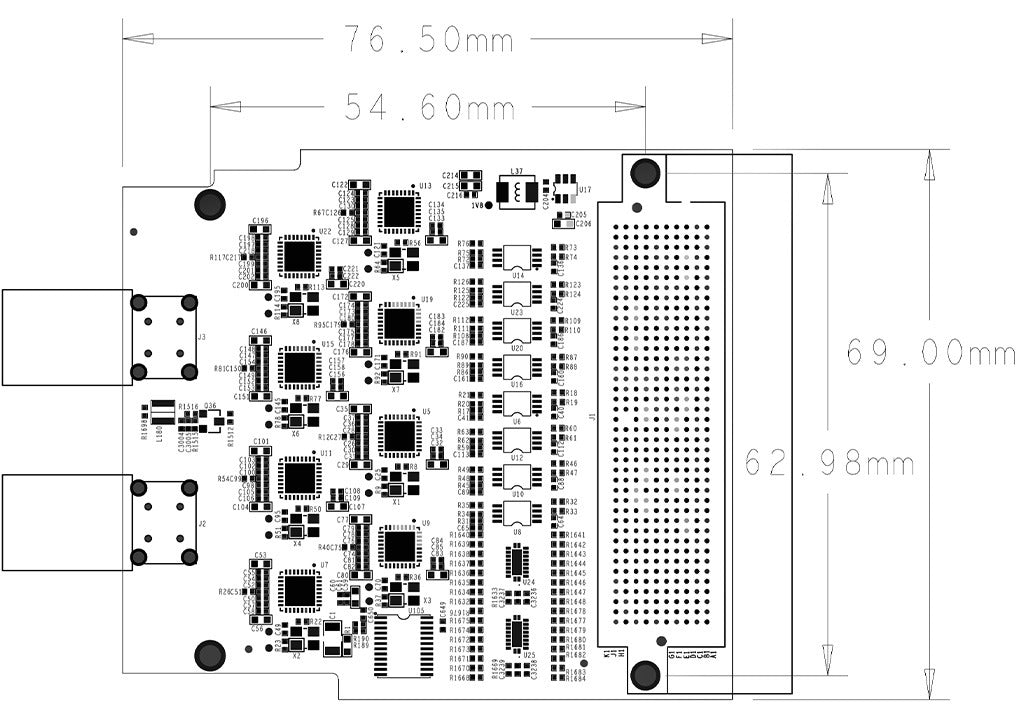

Board dimensions
76.5 x 69 mm
Warranty
The main body of every product sold is covered by a 12-month warranty. FPGA chips and LCD screens are wear items and are not covered by the warranty. All accessories and gifts are not covered by the warranty.
