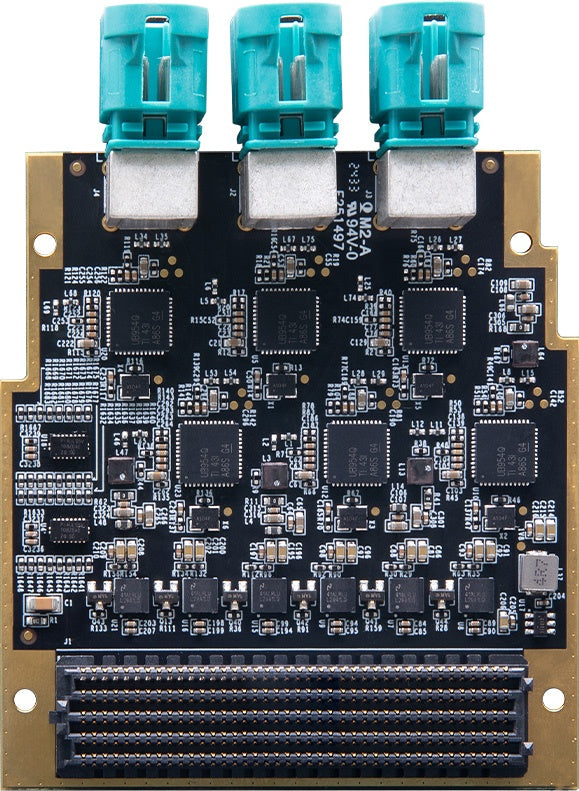

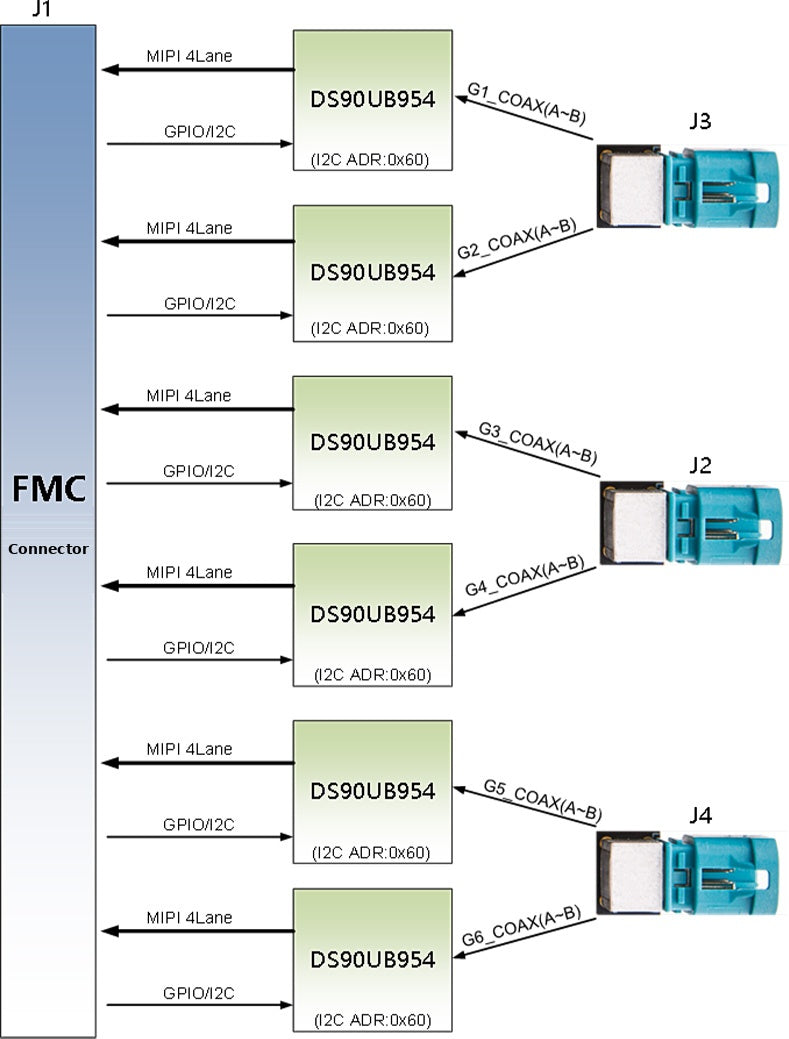

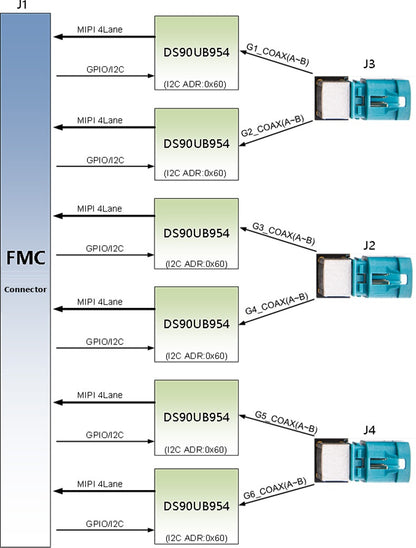

The ADK-9540 is a 12-channel FPD-Link III video reception FMC daughter card for automotive camera systems. Six Texas Instruments DS90UB954 deserializer chips receive up to 12 camera channels and output them over the FMC HPC interface. The video interfaces use automotive-grade 4-in-1 FAKRA coaxial connectors.
Specifications
Item
Specification
Model
ADK-9540
Deserializer chips
6 x Texas Instruments DS90UB954 (DS90UB954TRGZTQ1)
Video channels
12 channels
Video output
2MP at 60 fps or 4MP at 30 fps
Input image formats
RAW10/12, YUV422 10-bit video formats, configurable via I2C
Connectors

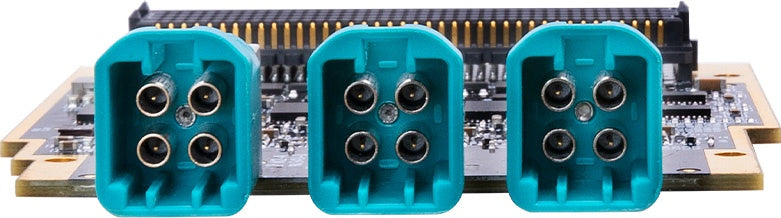

Automotive-grade Z Code Mini FAKRA 4-in-1 coaxial connectors
Cable length
Up to 15 m in FPD-Link III mode
Host interface
Standard FMC HPC connector

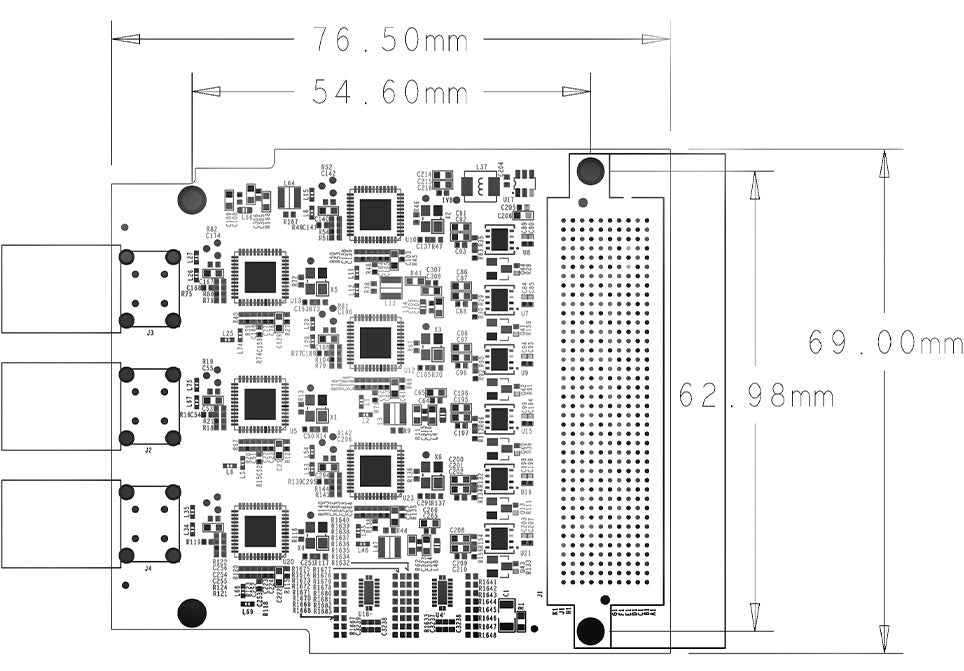

Board dimensions
76.5 x 69 mm
Compatibility
The ADK-9540 works only with the Z7-P, Z19-P, BZ7 and BZ10 development boards.
Warranty
The main product is covered by a 12-month warranty. FPGA chips and LCD screens are consumable parts and are not covered by the warranty. All accessories and gifts are not covered by the warranty.
