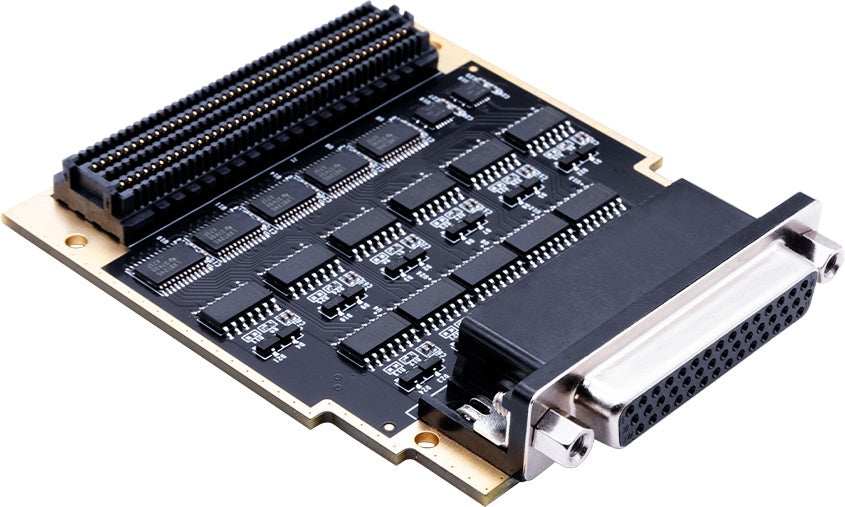

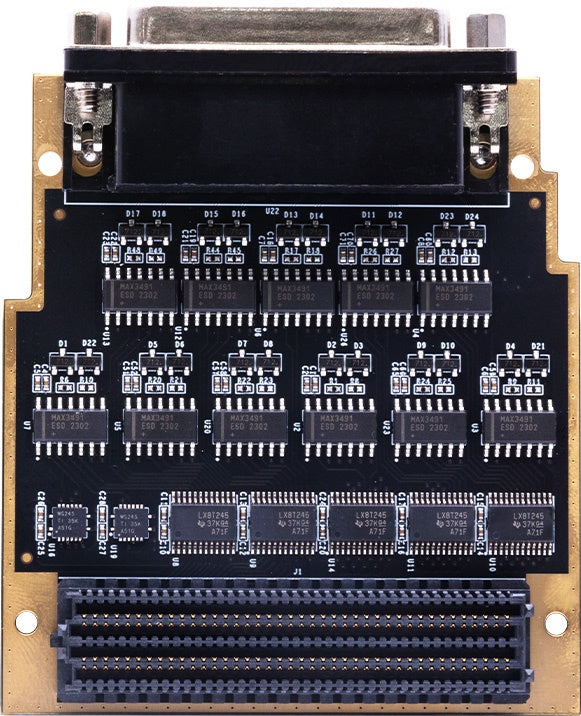

The ADK-3491 is an 11-channel RS422/RS485 communication module in FMC daughter-card form. It uses the industrial-grade Analog Devices MAX3491ESD transceiver chip, with data rates up to 10 Mbps, flexible RS422/RS485 mode switching and an easy-to-use interface design, providing a stable and efficient signal transmission solution for industrial automation, high-speed data acquisition and FPGA development.
Specifications
Item
Specification
Model
ADK-3491
Interface
11-channel RS422/RS485 communication interface (DB44 female connector)
Transceiver chip
Analog Devices MAX3491ESD industrial-grade chip, up to 10 Mbps
FMC connector
LPC connector, connector model ASP_134604_01

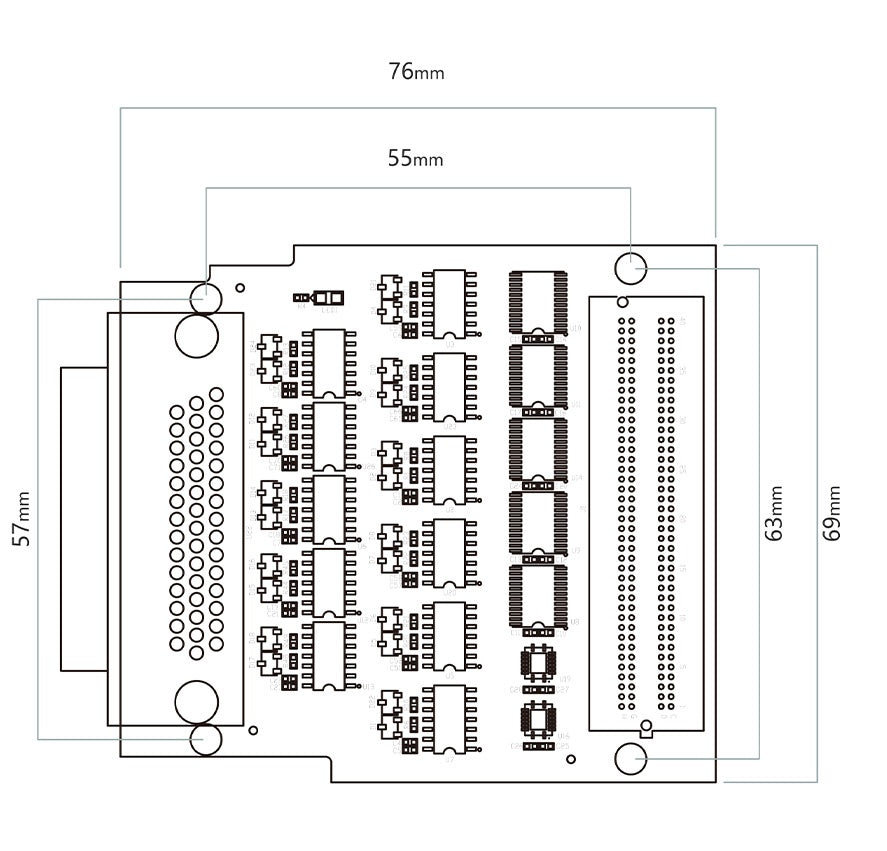

Board dimensions
76.5 x 69 mm
Warranty
The main product is covered by a 12-month warranty. FPGA chips and LCD screens are consumable parts and are not covered by the warranty. All accessories and gifts are not covered by the warranty.
